3.5m Shelves Automated Warehousing System CTU Robot Load / Unload Speed 25 - 30 Cartons/Hour

Place of Origin China
Brand Name CLX
Certification CE
Model Number CLX-A42-M
Minimum Order Quantity 1
Packaging Details Export Standard plywood case pack;
Delivery Time 30-40 days
Payment Terms T/T, L/C, D/A, D/P, OA,Western Union, MoneyGram
Supply Ability 30PCS/month, 400pcs/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Carton Size(mm) 300-400 (L) * 230-300 (W) * 105-600 (H) Product Weight 380kg
Roadway Width(mm) ≧920mm Ground Flatness ±3mm
Charging Full And Fast Two Models Discharing Full And Fast Two Models
Safety 1 Sensor Control On Obstacle Detection, Anti-collision Safety 2 Sound And Light Alarm
Safety 3 EMERGENCY Safety 5 Charging & Discharging Protection
Safety 4 Communication Encryption Compatibility Cartons And Plastic Containers
Navigation QR Code + Inertial Navigation
High Light

CTU Automated Warehousing System

,

3.5m Shelves Automated Warehousing System

,

30 Cartons/Hour CTU Robot

Leave a Message
Product Description



CTU Robot For 3.5m Shelves Cartons Storage Automatic Warehouse System Load /Unload Speed 25-30 Cartons/Hour



CTU (Container Transfer Unit) is an automated unmanned picking and handling robot. It can transfer multiple goods simultaneously which improves the picking efficiency and storage capacity.



CLX A42 Series is newly innovated and developped CTU robot, used on carton or plastic container sorting, pickup and storage, with multi-layers working smoothly at max capacity 300kg.



Nowadays the CTU robots are widely used on different fields like electronic parts, home appliances, machine accessories, cloth accessories even some online shops warehouse etc.





FEATURE



1. Based on AGV structure and navigation functions, with AMR function extensibility;

2. For carton and plastic container load/unload;

3. Max 8 +1 layer shelves, each layer max capacity 50kg, total capacity ≦300kg;

4. shelves less than 5.5 meters;

5. Each CTU can work at 20-30 cartons/hour, with high efficiency;

6. Only working on container cargo , more stable;

7. WCS: with WCS, for better warehouse management;

8. Intelligence: can work with ERP, WMS, for whole factory intelligent management.

TECHNICAL PARAMETERS

Model # CLX-A42-M
Product Details

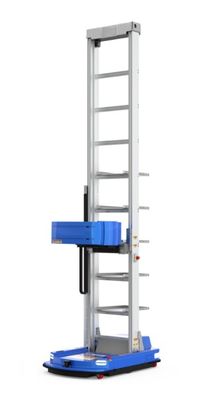

Dimension (mm) 1300*800*3130mm,Height adjustable at 1000-3530mm
Carton/ Container Dimension (mm) L(300-400)*W(230-300)* H(105-600)
Product Weight(kg) 380
Rotation diameter (mm) 1300
Max Load capacity (kg) 300
Max load capacity for each Carton/Container (kg) 50
Loading Height (mm) 400-3200
Motion Performance
Max Straight speed (m/s) 1.8
Parking accuracy(mm) ±10
Charge & Discharge Performance
Full charge Time(h) 1.5
Fast charge time(min) 40
Full charged battery life(h) 5.4
Fast charged battery life(h) 3.4
Working Environment
Working Temperature 0-45
Roadway width(mm) 920
Ground flatness (mm/2.25mm2) ±3
Safety methods
Obstacle detection
Anti-collision
Sound and light alarm
EMERGENCY
Communication encryption
Charging & discharging protection
Lifting and falling prevention
Certificate CE
Others
Compatibility Cartons and plastic containers
Communication Wi-Fi, 5GHz,802 11n
Navigation QR code + inertial navigation

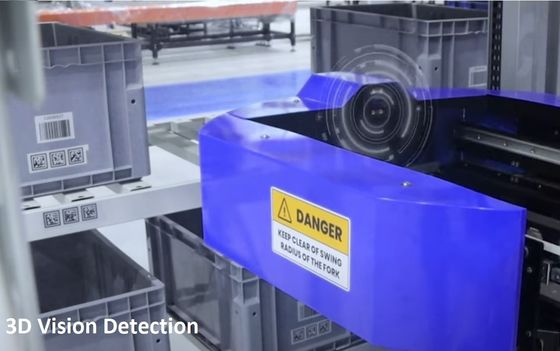

* With carton position detection camera;

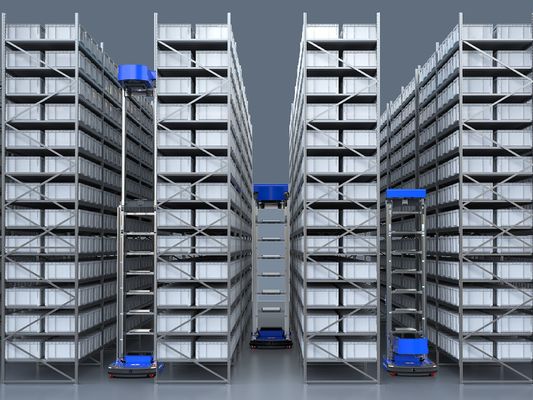

3.5m Shelves Automated Warehousing System CTU Robot Load / Unload Speed 25 - 30 Cartons/Hour 0
* Compatible carton and plastic container storage in one shelf;
3.5m Shelves Automated Warehousing System CTU Robot Load / Unload Speed 25 - 30 Cartons/Hour 1

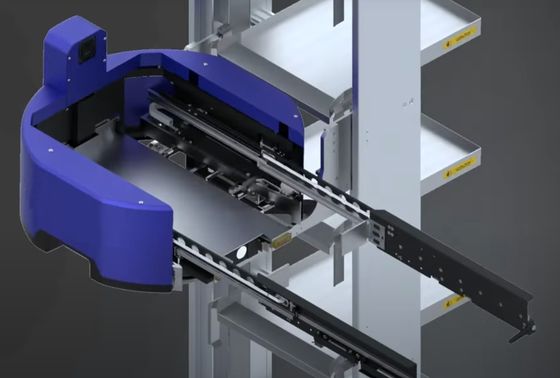

* With grapper to load / unload carton or container
3.5m Shelves Automated Warehousing System CTU Robot Load / Unload Speed 25 - 30 Cartons/Hour 2

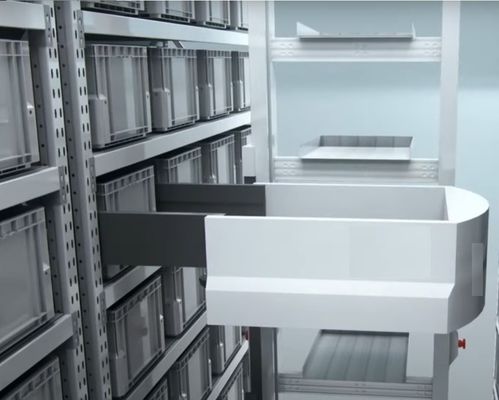

* With basket to storage carton or container
3.5m Shelves Automated Warehousing System CTU Robot Load / Unload Speed 25 - 30 Cartons/Hour 3


CUSTOMIZATIONS
* With adjustable graper to match different carton dimensions;
3.5m Shelves Automated Warehousing System CTU Robot Load / Unload Speed 25 - 30 Cartons/Hour 4
* WIth extensible grapper for deep carton storage
3.5m Shelves Automated Warehousing System CTU Robot Load / Unload Speed 25 - 30 Cartons/Hour 5

APPLICATIONS



One complete CTU automatic warehouse system, not only covers the hardwares parts, but also combined with sofeware control system, on spot commissioning, and after-sales service, many factors listed as following:



NO Key Parts
1 Storage Shelves
Please have a careful evaluation of storage requests before building the shelves:
(1)What is your products, in what field? How many storage positions in need?
(2)What is your production capacity, input capacity?
(3)What is your cargo output speed, how many cargos to release for every day, and how long time for cargo storage?
(4)The storage position should be marked with QR code or bar code, so as to finish cargo positioning.
2 CTU Main body
(1) We suggest dispatching speed roughly 25-30boxs/hour for 1 CTU;
(2) The quantity of CTU is determined by many factors as following:
* Total storage amount;
* Warehouse input and output amount;
* Total working hours;
* Peak working hours request;
* How many working conditions
Moidification on CTU Robot
Our CTU are always customized as buyer's details:
(1) Box or carton dimensions, weight etc, to determine the load capacity;
(2) How many layers for storage shelves, to determine how many layers of back basket to match.
(3) The height of storage shelves, to determine the max lifting height to pick and place;
Intelligent charging station
3 Software System
4 Hardware
(1) Network Device - server;
(2) Some improvment on charging station like fire extinguishing etc;
5 Installtion and Commissioning
* On site line drawing;
* QR code pasting,
* robot storage location testing,
* overall project testing and joint debugging;
* Draw lines on site, paste QR codes, and label shelves;
* Operational support and training after on-site launch;



3.5m Shelves Automated Warehousing System CTU Robot Load / Unload Speed 25 - 30 Cartons/Hour 6

SUPPORT AND SERVICES

3.5m Shelves Automated Warehousing System CTU Robot Load / Unload Speed 25 - 30 Cartons/Hour 7
