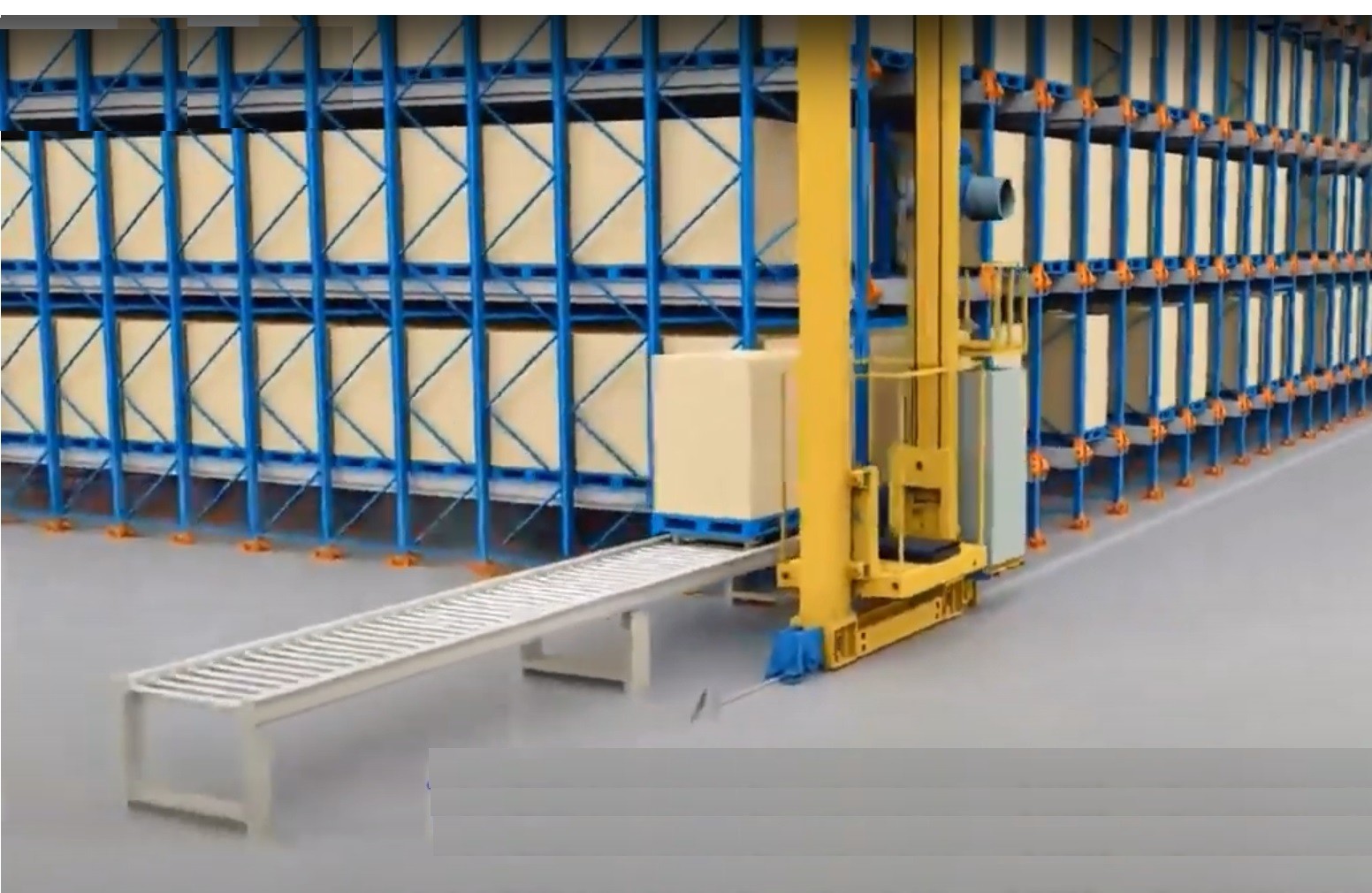

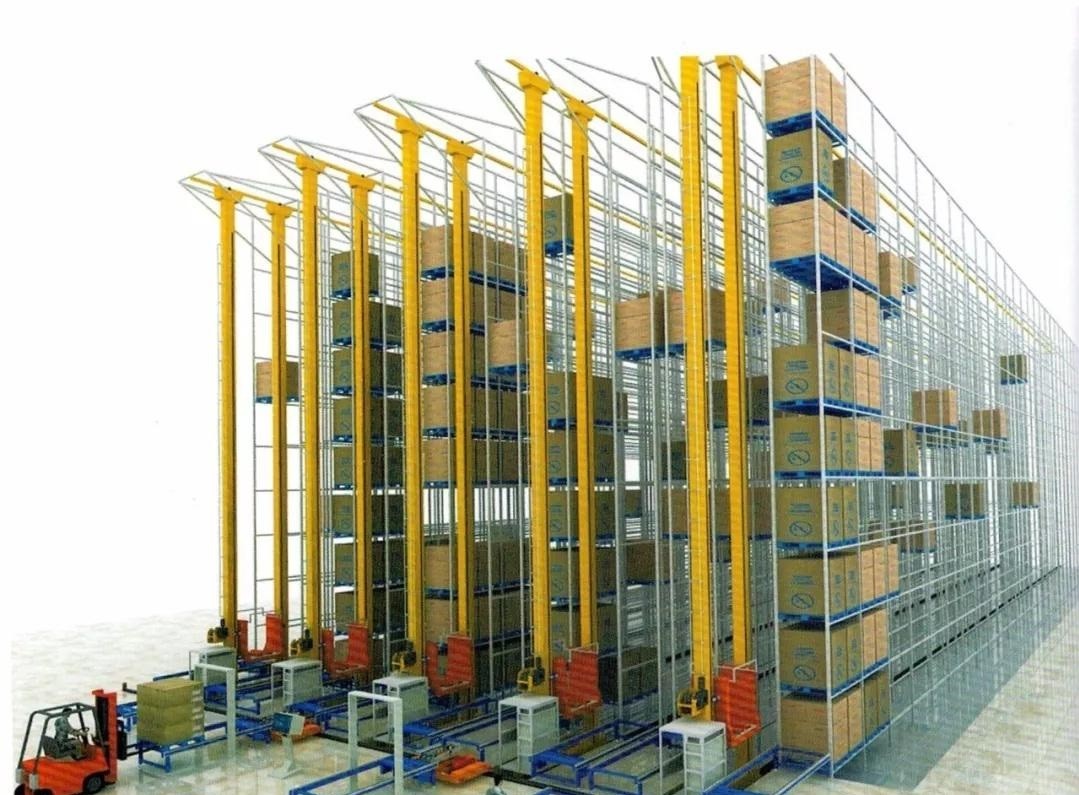

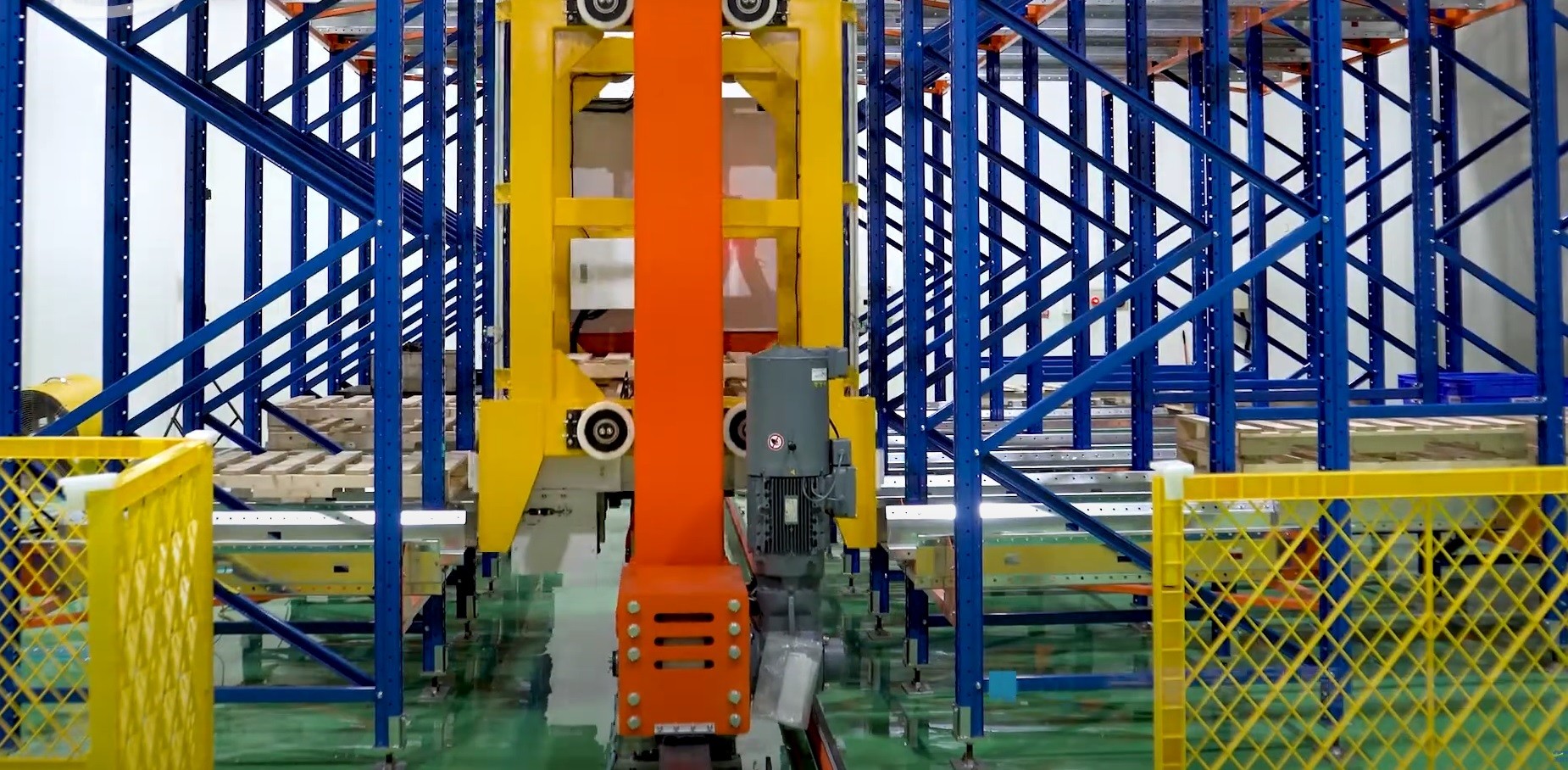

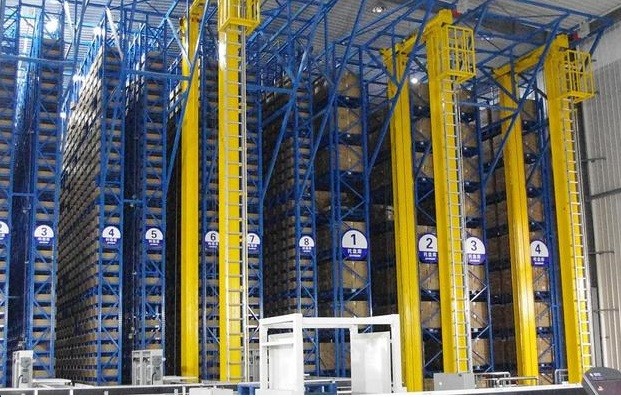

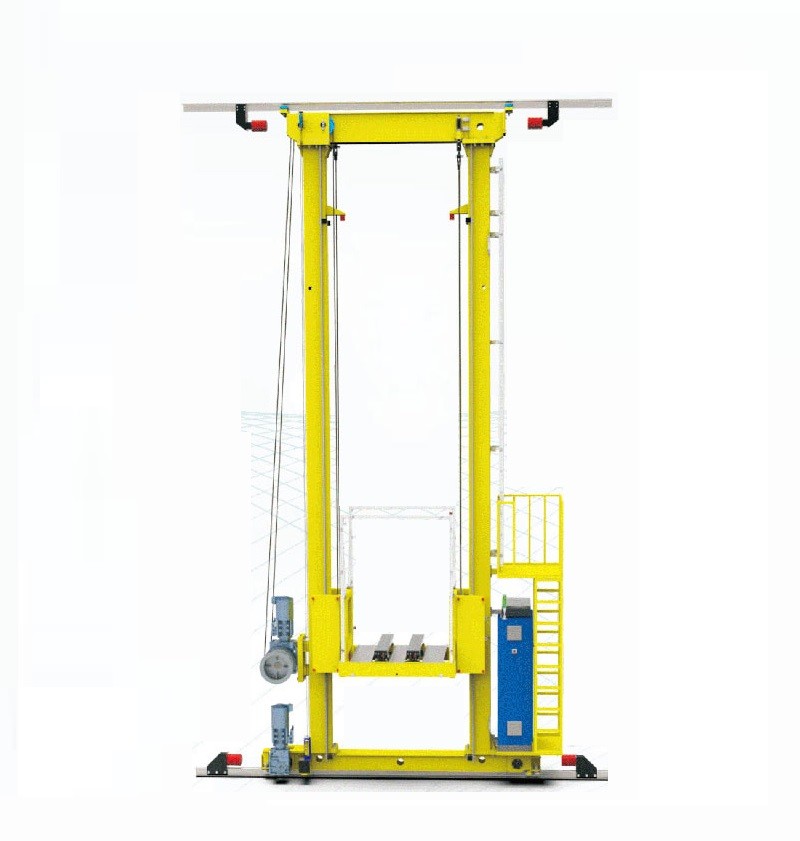

Double Column ASRS Pallet Stacker For Automatic Racking System

  • Double Column ASRS Pallet Stacker For Automatic Racking System
  • Double Column ASRS Pallet Stacker For Automatic Racking System
  • Double Column ASRS Pallet Stacker For Automatic Racking System
  • Double Column ASRS Pallet Stacker For Automatic Racking System
  • Double Column ASRS Pallet Stacker For Automatic Racking System
Place of Origin China
Brand Name CLX
Certification N/A
Model Number CLX-HLoad-3500-2C
Minimum Order Quantity 1
Price $50000-100000
Packaging Details Export Standard plywood case pack;
Delivery Time 30-40 days
Payment Terms T/T, L/C, D/A, D/P, OA,Western Union, MoneyGram
Supply Ability 30PCS/month, 400pcs/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Stacker Type Customized Heavy Duty Stacker With 2 Column Rated Load Capacity(kg) 3500
Total Height Of Shelves (mm) Customized Total Height Of Equipment Customized
Cargo Type Pallet, Roll, Wood Carton Cargo Dimension Customized As Buyer's Request
Horizontal Travel Distance Customized As Buyer's Request Horizontal Travel Drive Type Variable Frequency Drive (VFD)
Horizontal Travel Braking Method Frequency Converter Control And Electromagnetic Braking Horizontal Travel(X-axis) Positioning Mode Laser Positioning
Horizontal Travel(X-axis) Positioning Accuracy(mm) ±5 Horizontal Travel Speed Adjustable At 0-160m/min
Horizontal Travel Acceleration Adjustable At 0-0.5m/s2 Lifting And Lowering Mode Reducer Motor Drives And Steel Wire Rope Stretch
Lifting And Lowering Braking Method Frequency Converter Control And Electromagnetic Braking Lifting And Lowering (Y-Axis) Positioning Mode Bar Code Or QR Code Positioning
Lifting And Lowering (Y-Axis) Positioning Accuracy(mm) ±5 Lifting And Lowering (Y-Axis) Speed Adjustable At 0-60m/min
Lifting And Lowering (Y-Axis) Acceleration Adjustable At 0-0.5m/s2 Cargo Detection Device 1 Photoelectric Sensor Detection
Cargo Detection Device 2 Mechanical And Electrical Limit Cargo Fork Type Smooth And No-shaking, Customized Single/double Gripper Fork
Cargo Fork Positioning Mode Proximity Switches And Encoders Cargo Fork Z-Axis Positioning Accuracy(mm) ±5
Cargo Fork Extension Speed 40m/min Cargo Fork Cycling Time (Sec) Around 10 Second
Cargo Anti-slip Device Yes
High Light

Double Column Pallet Stacker

,

ASRS Pallet Stacker

,

Automatic Racking System Pallet Stacker
Leave a Message
Product Description



Double Column AS-RS Stacker for Pallet Pack automatic Racking System with commissioning and After-sales Services



No Descriptions Specifications
1 Type(Single or Double Column) Customized
2 Rated Load capacity(kg) 3500kg
3 Total height of shelves (mm) Customized
4 Total height of equipment-including top rails and brackets(mm) Customized
5 Upper surface of top beam(mm) Customized
6 Cargo Dimension(L*W*H)(mm) Customized
7 Load Capacity(Kg) Customized
8 Lifting Height (mm) Customized
9 Horizontal travel Travel drive type Variable Frequency Drive (VFD)
Braking method Frequency converter control and electromagnetic braking
Travel motor Power(Kw) Customized
Positioning mode(X-Axis) Laser positioning
X-Axis Positioning Accuracy(mm) ±5
None-load Speed 160m/min
acceleration Adjustable at 0-0.5m/s2
Loaded Speed 160m/min
acceleration Adjustable at 0-0.5m/s2
10 Lifting and lowering Lifting and Lowering mode The reducer motor drives the drum, which drives the steel wire rope
Braking method Frequency converter control and electromagnetic braking
Lifting and Lowering motor power rate (KW) Customized
Cargo detection device Photoelectric sensor detection Yes
Mechanical and electrical limit Yes
Others Cargo apperance detection,detection range more than 20mm
Positioning mode(Y-Axis) Bar code or QR Code positioning
Y-Axis Positioning Accuracy(mm) ±5
None-load Speed 60m/min
acceleration 0.5m/s2
Loaded Speed 60m/min
acceleration Adjustable at 0-0.3m/s2
11 Cargo Fork Type Smooth and no-shaking, customized single/double gripper fork
Positioning mode Proximity switches and encoders
Z-Axis Positioning Accuracy(mm) ±5
Fork extension speed 40m/min
cycling time (Sec) 10s
Cargo Anti-slip device Yes
Motor power rate(KW) Customized
12 Installation device and function Fault alarm function Yes
Fault self diagnosis function Yes
X-axis braking deceleration function Yes
X-axis braking stop device Yes
X-axis safety brake system Yes
Y-axis braking deceleration function Yes
Y-axis braking stop device Yes
Y-axis steel rope tension detection device Yes
Y-axis overspeed fall prevention system Yes
Anti impact device for top rails and ground rails Yes
Anti personnel entry device (fence) Yes
Emergency stop device on the machine Yes
Upper and terminal emergency stop Yes
Emergency stop of safety door electromechanical interlocking Yes
safety distances There is a safe distance from the mechanical stop on X,Y and Z axis.
13 Anti interference and other functions Wireless All cables use a 128P or upper copper mesh shielding laye
Many stackers work at same time Using filters, to filter out harmonics
Others Install magnetic rings below the converter, to enhance anti-interference ability
Self learning (manual debugging) correction function for partial tilt of shelves X,Y,Z axis all use laser or encoder positioning, so the deviation can be corrected by manually adjusting the parameters
Speed control S-Curve,so as to make the speed changes of the stacker crane not only smooth during the
acceleration and deceleration process, but also balance the acceleration and deceleration changes
Overload protection function Yes
Anti cargo fork top plate dropping function Yes
(Inventory) Location detection function Yes
(Pickup) Over limit detection function Yes
14 Communication Infrared optical communication
15 Infrared communication parameter indicators Equipped with an internal laser calibration auxiliary device, running parallel to the optical axis, without reflective surface interference
Working scop:100-120000mm
Light source: laser, infrared
Frequency:F3
Effective opening angle of transmitter:1°
Transmission speed:100M bit/s
Interface type:PROFINET IRT, Ethernet,PROFIsafe over PROFINET
16 Communicate with WMS Ethernet
17 Interlocking function with conveyor External development and program networking interlocking
18 Control method SIMENS PLC
19 HMI Language Chinese
20 Working type Single and recycled
21 Power supply AC 380V/50Hz,3 Phase 4 wires,on top rail and corss bean,
22 Noise (high speed) Less than 80dB



Transition Rail for Stacker
