Diameter 50mm Electric Roller For Intelligent Conveyor System Used In Warehousing System
| Place of Origin | China |
|---|---|
| Brand Name | CLX |
| Certification | CE |
| Model Number | CLX-DG50 |
| Minimum Order Quantity | 50 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter | 50mm | Tube Length | Customized As Buyer's Request, Minimum 250mm |
|---|---|---|---|
| Customization | Customization For Different Installation Methods | Integration | Brushless DC Motor, Gear Reducer, Hall Potentiometer Sensor |
| Materials | Carbon Steel (Galvanized Or Chrome Plated), Stainless Steel (SS#201, SS#304) | Power Supply | DC 24V/48V |
| Roller Speed | 0.5-95m/min | Control Unit | With Updated Control Unit, With IO, RS485, EtherCAT, Internet Connector |
| High Light | Diameter 50mm Electric Roller,Intelligent Conveyor System Electric Roller,Warehousing System Electric Roller |
||
Product Description

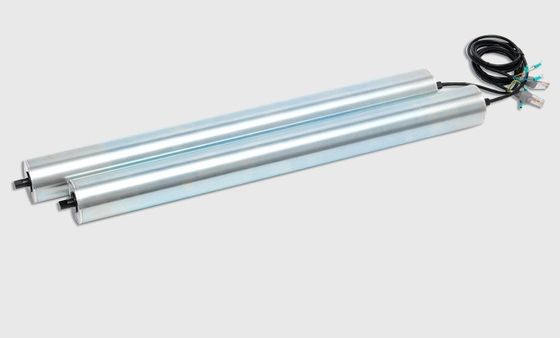

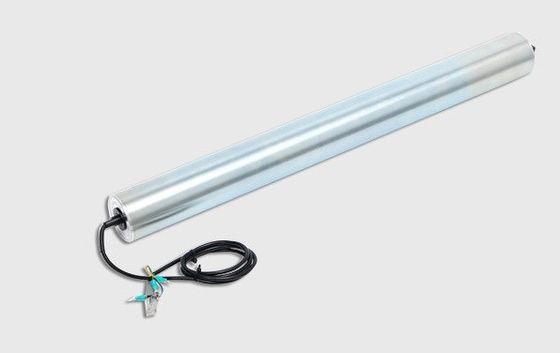

Completely New Electric Roller Diameter 50mm For Intelligent Conveyor System Used In Warehousing System

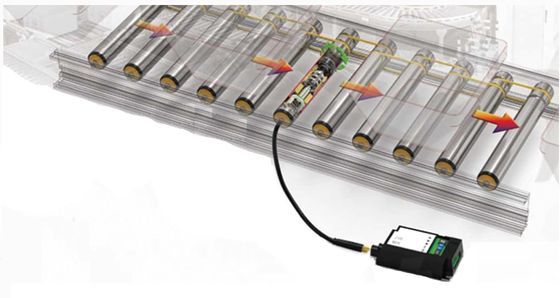

Electric roller is a new type of roller that integrates motor, gear reducer, and sensor (hall potentiometer) in one control unit, and this control unit is installed inside a steel tube, to achieve a self-powered roller.
Due to the conveyor system no longer needing motors, chains, intermediate shafts,or other auxiliary driving components, this electric roller don't need heavy gearbox reducer.
One worker just need to install the electric roller on the conveyor frame, install the external controller, connect to the power supply,his job is roughly finished.
Product specifications
* Electric roller DG050(Ø50mm) , suitable for speed regulation of medium and light loads;
* Equipped with efficient and energy-saving DC brushless gear reducer motor and control board;
* The output torque can be different options AS - standard type or HAS enhanced type;
* Power Supply - DC 24V/48V, safe working voltage;
* Roller speed adjustable at 0.5-95m/min；

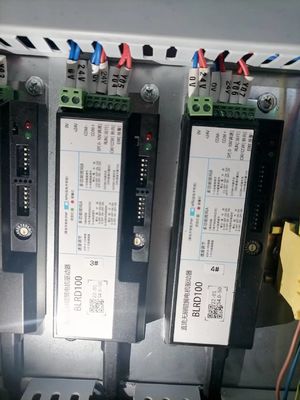

* Different kinds of control boards for options, with I/O control, ZPA(Zero pressure accumulation function) functions, as well as RS485, EtherCAT, internet and other interfaces;
* Roller material: carbon steel (galvanized or chrome plated), stainless steel(SS#304 or SS#201);
* Roller can be embossed, or linked with different connector like such O-ring pulleys, V-shaped pulleys, synchronous pulleys, multi wedge pulleys, sprockets etc;
* Easy and convenient installation, make it intelligent control.
Electric Roller Details (DG50 exploded view)
| 1 | Wire (to connect with control unit) |
| 2 | Wire output end shaft |
| 3 | Front bearing seat |
| 4 | DC Brushless motor |
| 5 | Reduction gearbox |
| 6 | Gearbox fixing seat |
| 7 | Cylinder wall |
| 8 | Drive wheel bearing seat |
| 9 | Drive wheel end shaft |
| 10 | Hall sensor |
| 11 | Control unit |
