Latent Max Load 600kg AGV Automated Guided Vehicle For Warehouse System
| Place of Origin | China |
|---|---|
| Brand Name | CLX |
| Certification | N/A |
| Model Number | CLX-RTA-C060 |
| Minimum Order Quantity | 1 |
| Packaging Details | Export Standard Plywood case pack, 1pcs/carton |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability | 30 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Dimensions | 990*630*250mm | Rotation Diameter | 990mm |
|---|---|---|---|
| Lifting Height | 70mm | Ground Clearance Height | 20mm |
| Lifting Pallet Dimensions | 900*550mm | Lifting Method | Electric |
| Machine Weight | 160kg | Load Capacity | 600kg |
| LCD Display | Yes | Touch Screen | Yes |
| Navigation | QR Code Visual | Communication Mode | 802.11b/g/n/ac |
| Drive | Different Kinds Drive Types | Max. Operating Speed | 2.0m/s |
| Max. Operating Acceleration | 1m/s² | Stop Position Accuracy | ±10mm |
| Stop Angle Accuracy | ±1° | Climbing Ability | 3°/5% |
| Obstacle Crossing Height | 10mm | Obstacle Avoidance Method | Front Laser |
| Anti-collision Detection | Front/rear Pressure-sensitive Protection Strip Detection | Stop Button | Front/rear Emergency Stop Button |
| Sound And Light Alarm | Yes | Battery Type | Ternary Polymer Lithium Battery/Lithium Iron Phosphate Battery |
| Battery Capacity | 48V36Ah | Operating Time | ＞8h |
| Charging Time | ＜2h | Charging Mode | Automatic/manual |
| Battery Life | 1000/1500 Cycles | Operating Temperature | -10℃-50℃ |
| Charging Temperature | 0℃-45℃ | Operating Humidity | 10%~90% |
| High Light | 600kg AGV Automated Guided Vehicle,Warehouse System AGV Automated Guided Vehicle,Warehouse Automatic Guided Vehicles |
||
Product Description

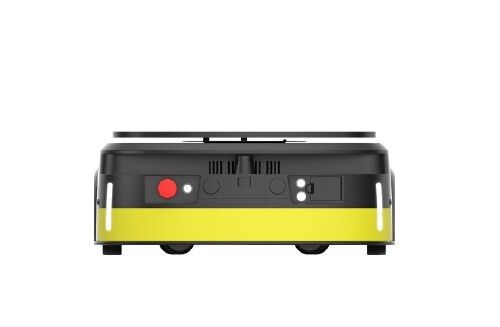

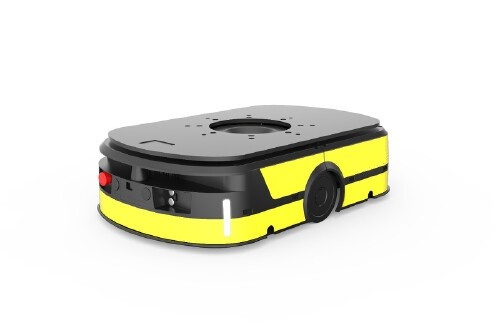

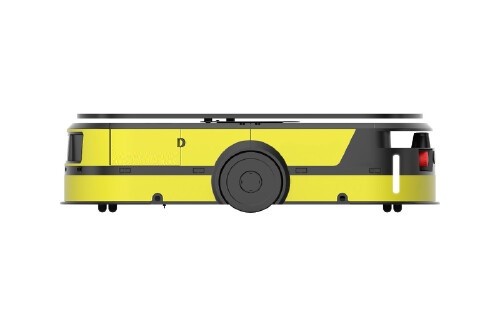

Latent Max Load 600kg AGV for warehouse system QR Code Visual Navigation
| Model # CLX-RTA-C060 | ||
| Basic | Product Dimensions | 990*630*250mm |
| Rotation Diameter | 990mm | |
| Lifting Height | 70mm | |
| Ground Clearance Height | 20mm | |
| Lifting Pallet Dimensions | 900*550mm | |
| Lifting Method | Electric | |
| Net Weight | 160kg | |
| Load Capacity | 600kg | |
| LCD Display | Yes | |
| Touch Screen | Yes | |
| Navigation | Visual (QR code) | |
| Communication Mode | 802.11b/g/n/ac | |
| Drive | Differential Drive | |
| Performance | Max. Operating Speed | 2.0m/s |
| Max. Operating Acceleration | 1m/s² | |
| Stop Position Accuracy | ±10mm | |
| Stop Angle Accuracy | ±1° | |
| Climbing Ability | 3°/5% | |
| Obstacle Crossing Height | 10mm | |
| Obstacle Avoidance | Obstacle Avoidance Method | Front laser |
| Anti-collision Bar Detection | Front/rear pressure-sensitive protection strip detection | |
| Stop Button | Front/rear emergency stop button | |
| Sound and Light Alarm | Yes | |
| Battery | Battery | Ternary polymer lithium battery/Lithium iron phosphate Battery |
| Battery Capacity | 48V36Ah | |
| Operating Time | ＞8h | |
| Charging Time | ＜2h | |
| Charging Mode | Automatic/manual | |
| Battery Life | 1000/1500 cycles | |
| Operating Environment | Operating Temperature | -10℃-50℃ |
| Charging Temperature | 0℃-45℃ | |
| Operating Humidity | 10%~90% | |
