5.0MP 1/2.5" CMOS Sensor Rolling Mono Industry Camera For Intelligent Machine Vision System

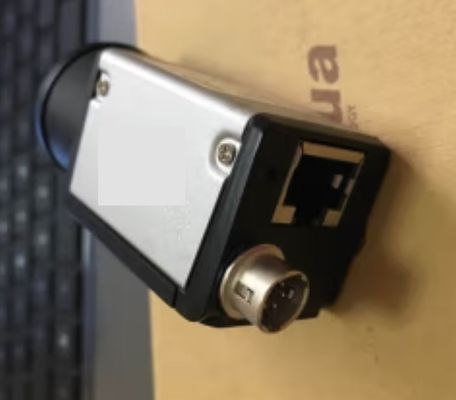

  • 5.0MP 1/2.5" CMOS Sensor Rolling Mono Industry Camera For Intelligent Machine Vision System
  • 5.0MP 1/2.5" CMOS Sensor Rolling Mono Industry Camera For Intelligent Machine Vision System
  • 5.0MP 1/2.5" CMOS Sensor Rolling Mono Industry Camera For Intelligent Machine Vision System
Place of Origin China
Brand Name iRAYPLE
Certification CE, FCC, ROHS
Model Number A3504MG100
Minimum Order Quantity 50
Price $150
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram, Cash
Supply Ability 500pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dynamic Range >60dB Exposure Control Auto
Frame Rate 30fps Image Compression JPEG
Image Sensor CMOS Interface RJ45
Lens 6mm Minimum Illumination 0.01 Lux
Noise Reduction 3D DNR Product Name Intelligent Machine Vision
Resolution 1080P S/N Ratio >50dB
Storage Capacity 128GB Video Compression H.264
White Balance Auto
Highlight

1/2.5" CMOS Sensor

,

Rolling Mono Industry Camera CMOS Sensor

,

Intelligent CMOS Sensor
You can tick the products you need and communicate with us in the message board.
50pcs on stock, 5 days delivery
Leave a Message
Product Description

5.0MP 1/2.5"CMOS Sensor Rolling Mono Industry Camera For Intelligent Machine Vision System

Industrial cameras are a key component in machine vision systems, whose fundamental function is to transform optical signals into ordered digital signals.

Choosing a suitable camera is also an important part of machine vision system design. The selection of a camera not only directly determines the resolution and quality of the captured images, but also is directly related to the operating mode of the entire system.

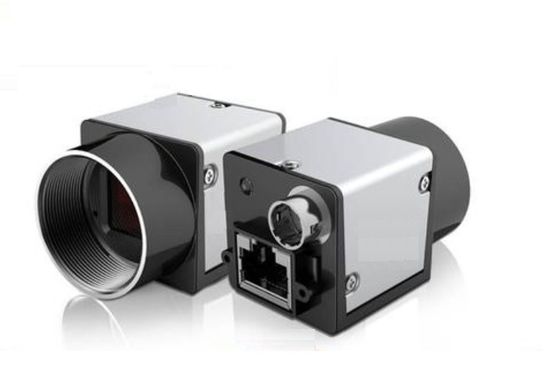

5.0MP 1/2.5" CMOS Sensor Rolling Mono Industry Camera For Intelligent Machine Vision System 0

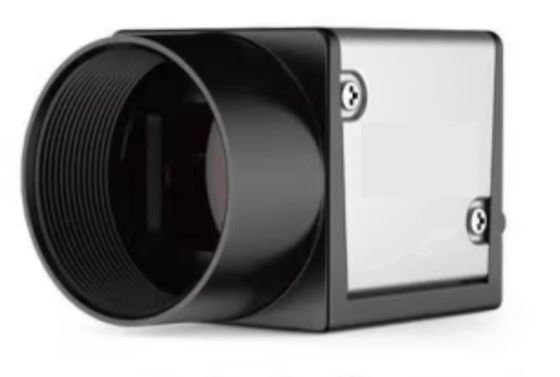

5.0MP 1/2.5" CMOS Sensor Rolling Mono Industry Camera For Intelligent Machine Vision System 1



5.0MP 1/2.5"CMOS sensor Rolling Mono industry camera  Item# A3504MG100

Features:

● Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m;

● 128MB on-board cache for data transmission or image resend;

● Support Software Trigger/Hardware Trigger/Free Run Mode;

● Support ISP functions including Sharpness/Denoising/Gamma/LUT/Black Level Correction/TargetBrightness/Contrast etc.;

● Support multiple image data formats output/ROI/Binning/Mirror, etc.;

● Conform to GigE Vision V2.0 protocol and GenICam standard;

● DC 9V~24V wide voltage power supply; Conform to CE, FCC, RoHS;

Technical Parameters:

Basic
Sensor AR0521
Image Sensor 1/2.5"CMOS
Shutter Rolling
Resolution 2592 × 1944
Frame Rate 23 fps
Bit Depth 12
Mono/Color Mono
Pixel Size 2.2 μm × 2.2 μm
Pixel 5.0MP
S/N Ratio 40dB
WDR 74.3dB
Image Format Mono8/10/10Packed/12/12Packed
Binning Support
ROI Support
Gain 1~32
Gamma From 0 to 4,support LUT
Exposure Time 21.5μS~1S
Trigger Mode Software Trigger/Hardware Trigger/Free Run Mode
SPC Support
Performance
User Setting Support two sets of user-defined configurations
Image Buffer 64MB
Port
Port GigE
GPIO Interface 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount C-mount
Power
Power Supply DC 9V~24V power supply via Hirose interface
Power Consumption 12V≈2.8W
Structure
Product Dimensions 29mm*29mm*29mm
Net Weight 60 g
Environment
Storage Temperature - 30℃~+80℃
Operating Temperature - 30℃~+50℃
