1.5m/s Straight speed CTU Robot For 10m Shelves Cartons Storage Automatic Warehouse System

Place of Origin China
Brand Name CLX
Certification CE
Model Number CLX-A42T-L
Minimum Order Quantity 1
Packaging Details Export Standard plywood case pack;
Delivery Time 30-40 days
Payment Terms T/T, L/C, D/A, D/P, OA,Western Union, MoneyGram
Supply Ability 30PCS/month, 400pcs/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension(mm) 1850*1030,Height 4890-5730mm Lifting Height(mm) 350-10000
Carton Size(mm) 400-600 (L) * 300-500 (W) * 115-600 (H) Product Weight 950kg
Rotation Diameter (mm) 1850 Max Load/carton 50kg
Max Load 300kg Max Straight Speed 1.5m/s
Parking Accuracy ±10mm Roadway Width(mm) ≧1160mm
Ground Flatness ±3mm Charging Full And Fast Two Models
Discharing Full And Fast Two Models Safety 1 Sensor Control On Obstacle Detection, Anti-collision
Safety 2 Sound And Light Alarm Safety 3 EMERGENCY
Safety 5 Charging & Discharging Protection Safety 4 Communication Encryption
Compatibility Cartons And Plastic Containers Navigation QR Code + Inertial Navigation
High Light

1.5m/S CTU Robot

,

Cartons Storage CTU Robot

,

Automatic Warehouse System CTU Robot

Leave a Message
Product Description
CTU Robot For 10m Shelves Cartons Storage Automatic Warehouse System With After-Sales Service And Warranty

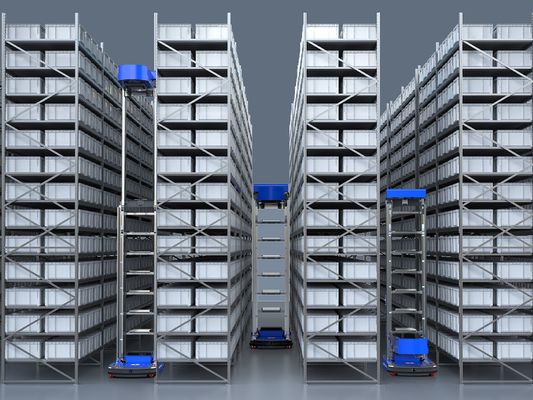

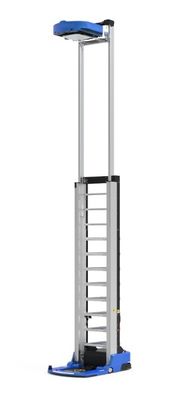

CTU (Carton Transfer Unit) is an automated unmanned picking and handling robot. It can transfer multiple goods simultaneously which improves the picking efficiency and storage capacity.

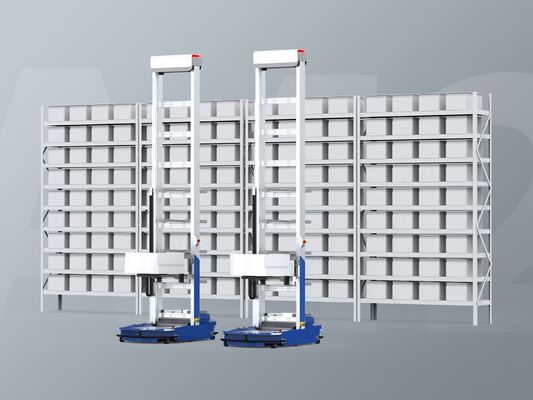

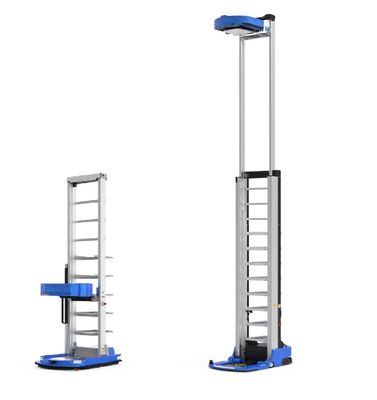

CLX A42T Series is newly innovated and developped CTU robot upgraded from A42 Series, with extensible arm which make even higher load and unload avaliable, and make greater use of the warehouse height. Same as A42 Series, A42T is also used on carton or plastic container sorting, pickup and storage, with multi-layers working smoothly at max capacity 300kg.



Nowadays the CTU robots are widely used on different fields like electronic parts, home appliances, machine accessories, cloth accessories even some online shops warehouse etc.





FEATURE



1. Based on AGV structure and navigation functions, with AMR function extensibility;

2. For carton and plastic container load/unload;

3. Max 8 +1 layer shelves, each layer max capacity 50kg, total capacity ≦300kg;

4. shelves less than 10 meters;

5. Each CTU can work at 20-30 cartons/hour, with high efficiency;

6. Only working on container cargo , more stable;

7. WCS: with WCS, for better warehouse management;

8. Intelligence: can work with ERP, WMS, for whole factory intelligent management.

TECHNICAL PARAMETERS

CLX-A42T-L
* Product Details
   Dimension(mm) 1850*1030,Height 4890-5730mm
   Carton/ Container Dimension (mm) L(400-600)*W(300-500)*H(115-600)
   Product Weight(kg) 950
   Rotation diameter (mm) 1850
   Max Load capacity (kg) 300
   Max load capacity for each Carton/Container (kg) 50
   Loading Height (mm) 350-10000
* Motion Performance
   Max Straight speed (m/s) 1.5
   Parking accuracy(mm) ±10
* Charge & Discharge Performance
   Full charge Time(h) 1.4
   Fast charge time(min) ≦32
   Full charged battery life(h) ≧6.5
   Fast charged battery life(h) ≧4.0
* Working Environment
   Working Temperature 0-45
   Roadway width(mm) 1160
   Ground flatness (mm/2.25mm2) ±3
* Safety methods
   Obstacle detection
   Anti-collision
   Sound and light alarm
   EMERGENCY
   Communication encryption
   Charging & discharging protection
   Lifting and falling prevention
   Certificate CE
* Others
   Compatibility Cartons and plastic containers
   Communication Wi-Fi, 5GHz,802 11n
   Navigation QR code + inertial navigation
* With carton position detection camera;
CTU robot for 3.5m  shelves cartons Storage Automatic Warehouse system load /unload speed 25-30 cartons/hour 0
* Compatible carton and plastic container storage in one shelf;
CTU robot for 3.5m  shelves cartons Storage Automatic Warehouse system load /unload speed 25-30 cartons/hour 1

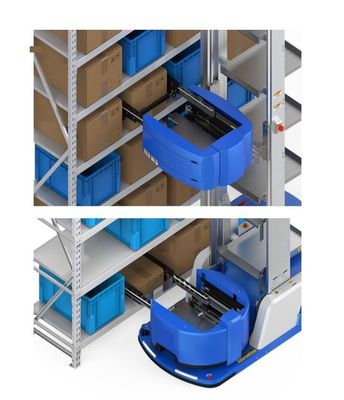

* With grapper to load / unload carton or container
CTU robot for 3.5m  shelves cartons Storage Automatic Warehouse system load /unload speed 25-30 cartons/hour 2
* With basket to storage carton or container
CTU robot for 3.5m  shelves cartons Storage Automatic Warehouse system load /unload speed 25-30 cartons/hour 3


CUSTOMIZATIONS
* With adjustable graper to match different carton dimensions;
CTU robot for 3.5m  shelves cartons Storage Automatic Warehouse system load /unload speed 25-30 cartons/hour 4
* WIth extensible grapper for deep carton storage
CTU robot for 3.5m  shelves cartons Storage Automatic Warehouse system load /unload speed 25-30 cartons/hour 5



APPLICATIONS



One complete CTU automatic warehouse system, not only covers the hardwares parts, but also combined with sofeware control system, on spot commissioning, and after-sales service, many factors listed as following:



NO Key Parts
1 Storage Shelves
Please have a careful evaluation of storage requests before building the shelves:
(1)What is your products, in what field? How many storage positions in need?
(2)What is your production capacity, input capacity?
(3)What is your cargo output speed, how many cargos to release for every day, and how long time for cargo storage?
(4)The storage position should be marked with QR code or bar code, so as to finish cargo positioning.
2 CTU Main body
(1) We suggest dispatching speed roughly 25-30boxs/hour for 1 CTU;
(2) The quantity of CTU is determined by many factors as following:
* Total storage amount;
* Warehouse input and output amount;
* Total working hours;
* Peak working hours request;
* How many working conditions
Moidification on CTU Robot
Our CTU are always customized as buyer's details:
(1) Box or carton dimensions, weight etc, to determine the load capacity;
(2) How many layers for storage shelves, to determine how many layers of back basket to match.
(3) The height of storage shelves, to determine the max lifting height to pick and place;
Intelligent charging station
3 Software System
4 Hardware
(1) Network Device - server;
(2) Some improvment on charging station like fire extinguishing etc;
5 Installtion and Commissioning
* On site line drawing;
* QR code pasting,
* robot storage location testing,
* overall project testing and joint debugging;
* Draw lines on site, paste QR codes, and label shelves;
* Operational support and training after on-site launch;





SUPPORT AND SERVICES

CTU robot for 3.5m  shelves cartons Storage Automatic Warehouse system load /dispatch speed 25-30 cartons/hour 6
