10m Shelves Extra Big Cartons Storage Automated Warehousing System CTU Robot
| Place of Origin | China |
|---|---|
| Brand Name | CLX |
| Certification | CE |
| Model Number | CLX-A42T-X |
| Minimum Order Quantity | 1 |
| Packaging Details | Export Standard plywood case pack; |
| Delivery Time | 30-40 days |
| Payment Terms | T/T, L/C, D/A, D/P, OA,Western Union, MoneyGram |
| Supply Ability | 30PCS/month, 400pcs/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension(mm) | 2220*1250,Height 4890-5730mm | Lifting Height(mm) | 350-10000 |
|---|---|---|---|
| Carton Size(mm) | 600-850 (L) * 400-650 (W) * 115-600 (H） | Product Weight | 1100 |
| Rotation Diameter (mm) | 2240 | Max Load/carton | 50kg |
| Max Load | 300kg | Max Straight Speed | 1.6m/s |
| Parking Accuracy | ±10mm | Roadway Width(mm) | ≧1160mm |
| Ground Flatness | ±3mm | Charging | Full And Fast Two Models |
| Discharing | Full And Fast Two Models | Safety 1 | Sensor Control On Obstacle Detection, Anti-collision |
| Safety 2 | Sound And Light Alarm | Safety 3 | EMERGENCY |
| Safety 5 | Charging & Discharging Protection | Safety 4 | Communication Encryption |
| Compatibility | Cartons And Plastic Containers | Navigation | QR Code + Inertial Navigation |
| High Light | Automated Warehousing System CTU Robot,Big Cartons Storage CTU Robot,10m Shelves Automated Warehousing System |
||
Product Description
CTU Robot For 10m Shelves Extra Big Cartons Storage Automatic Warehouse System With After-Sales Service And Warranty
CTU (Carton Transfer Unit) is an automated unmanned picking and handling robot. It can transfer multiple goods simultaneously which improves the picking efficiency and storage capacity.

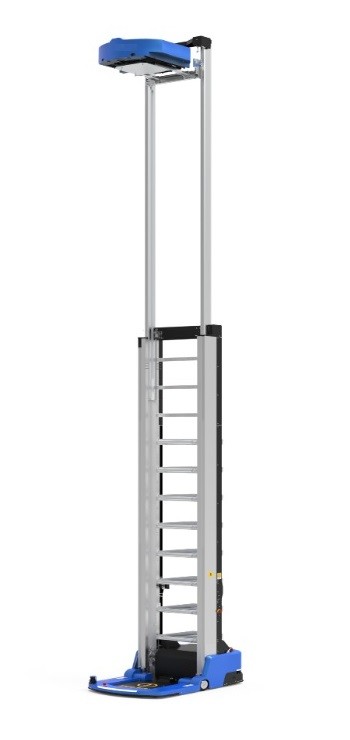

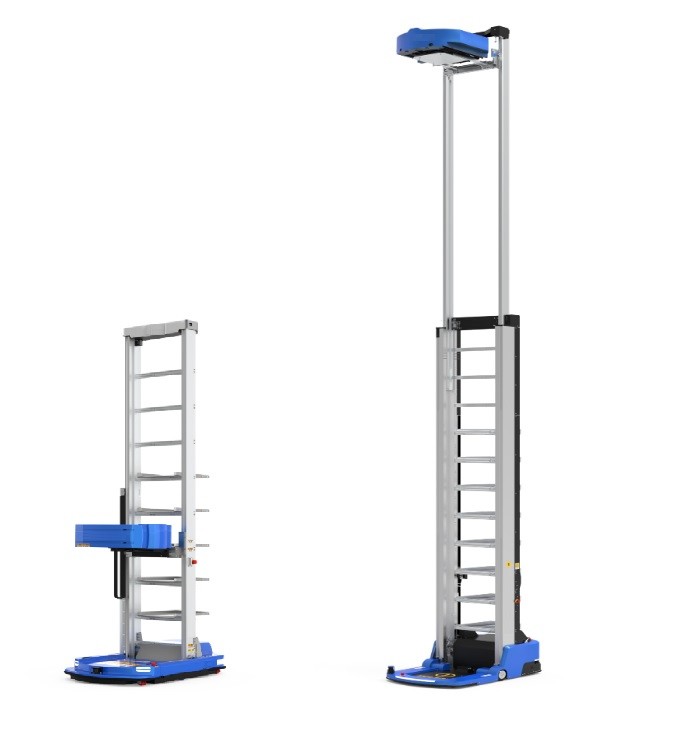

CLX A42T Series is newly innovated and developped CTU robot upgraded from A42 Series, with extensible arm which make even higher load and unload avaliable, and make greater use of the warehouse height. Same as A42 Series, A42T is also used on carton or plastic container sorting, pickup and storage, with multi-layers working smoothly at max capacity 300kg.
Nowadays the CTU robots are widely used on different fields like electronic parts, home appliances, machine accessories, cloth accessories even some online shops warehouse etc.
FEATURE
1. Based on AGV structure and navigation functions, with AMR function extensibility;
2. For carton and plastic container load/unload;
3. Max 8 +1 layer shelves, each layer max capacity ≦50kg, total capacity ≦300kg;
4. Suitable for max carton dimension: 850* 650*600mm;
5. shelves less than 10 meters;
6. Each CTU can work at 20-30 cartons/hour, with high efficiency;
7. Only working on container cargo , more stable;
8. WCS: with WCS, for better warehouse management;
9. Intelligence: can work with ERP, WMS, for whole factory intelligent management.
TECHNICAL PARAMETERS
| CLX-A42T-X | |
| * Product Details | |
| Dimension(mm) | 2220*1250,Height 4890-5730mm |
| Carton/ Container Dimension (mm) | L(600-850)*W(400-650)* H(115-600) |
| Product Weight(kg) | 1100 |
| Rotation diameter (mm) | 2240 |
| Max Load capacity (kg) | 300 |
| Max load capacity for each Carton/Container (kg) | 50 |
| Loading Height (mm) | 350-10000 |
| * Motion Performance | |
| Max Straight speed (m/s) | 1.6 |
| Parking accuracy(mm) | ±10 |
| * Charge & Discharge Performance | |
| Full charge Time(h) | ≦1.4 |
| Fast charge time(min) | ≦32 |
| Full charged battery life(h) | ≧6.5 |
| Fast charged battery life(h) | ≧4.0 |
| * Working Environment | |
| Working Temperature | 0-45℃ |
| Roadway width(mm) | 1380 |
| Ground flatness (mm/2.25mm2) | ±3 |
| * Safety methods | |
| Obstacle detection | √ |
| Anti-collision | √ |
| Sound and light alarm | √ |
| EMERGENCY | √ |
| Communication encryption | √ |
| Charging & discharging protection | √ |
| Lifting and falling prevention | √ |
| Certificate | CE |
| * Others | |
| Compatibility | Cartons and plastic containers |
| Communication | Wi-Fi, 5GHz,802 11n |
| Navigation | QR code + inertial navigation |
* With carton position detection camera;
* Compatible carton and plastic container storage in one shelf;
* With grapper to load / unload carton or container
* With basket to storage carton or container
CUSTOMIZATIONS
* With adjustable graper to match different carton dimensions;
* WIth extensible grapper for deep carton storage
APPLICATIONS

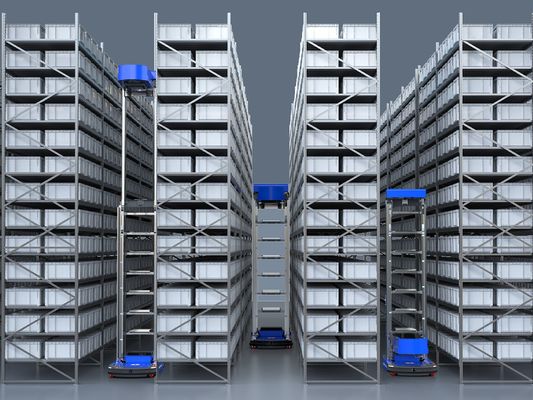

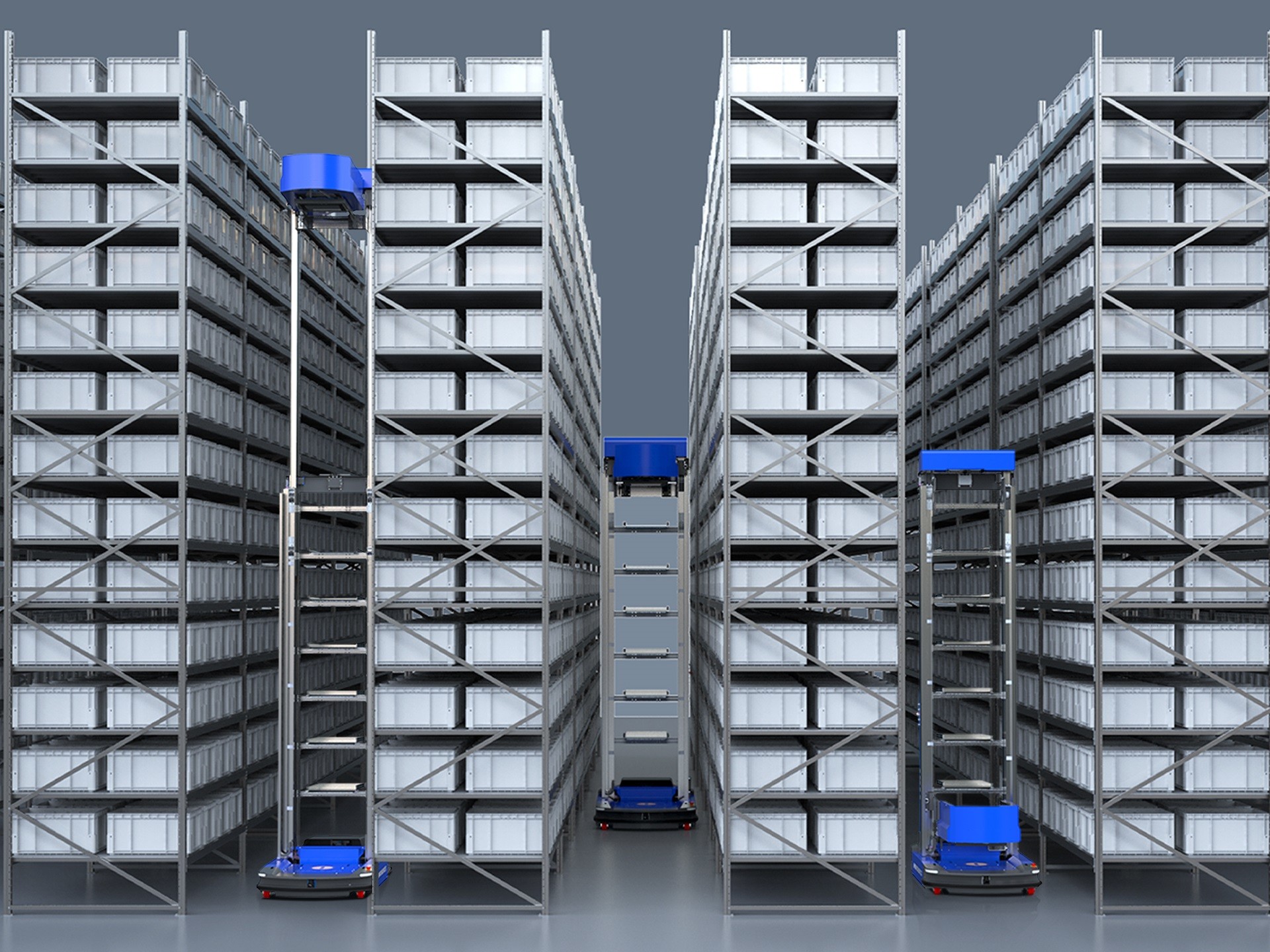

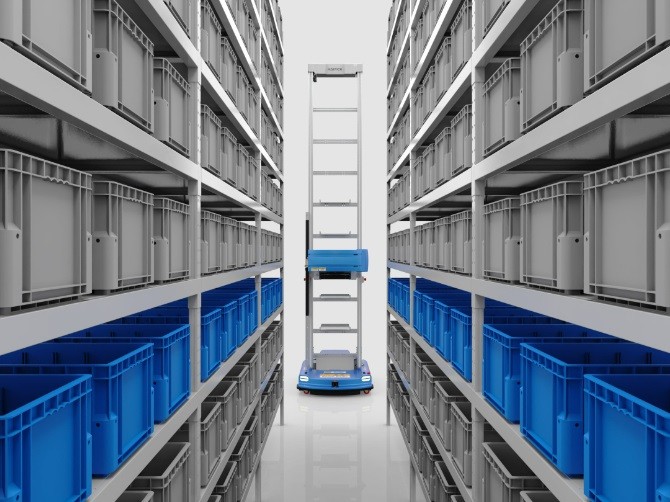

One complete CTU automatic warehouse system, not only covers the hardwares parts, but also combined with sofeware control system, on spot commissioning, and after-sales service, many factors listed as following:
| NO | Key Parts |
| 1 | Storage Shelves Please have a careful evaluation of storage requests before building the shelves: (1)What is your products, in what field? How many storage positions in need? (2)What is your production capacity, input capacity? (3)What is your cargo output speed, how many cargos to release for every day, and how long time for cargo storage? (4)The storage position should be marked with QR code or bar code, so as to finish cargo positioning. |
| 2 | CTU Main body (1) We suggest dispatching speed roughly 25-30boxs/hour for 1 CTU; (2) The quantity of CTU is determined by many factors as following: * Total storage amount; * Warehouse input and output amount; * Total working hours; * Peak working hours request; * How many working conditions |
| Moidification on CTU Robot Our CTU are always customized as buyer's details: (1) Box or carton dimensions, weight etc, to determine the load capacity; (2) How many layers for storage shelves, to determine how many layers of back basket to match. (3) The height of storage shelves, to determine the max lifting height to pick and place; |
|
| Intelligent charging station | |
| 3 | Software System |
| 4 | Hardware (1) Network Device - server; (2) Some improvment on charging station like fire extinguishing etc; |
| 5 | Installtion and Commissioning * On site line drawing; * QR code pasting, * robot storage location testing, * overall project testing and joint debugging; * Draw lines on site, paste QR codes, and label shelves; * Operational support and training after on-site launch; |
