Small Components Intelligent Flexible Vibration Feeder For Assemble Manufacturing

Place of Origin China
Brand Name CLX
Certification N/A
Model Number CLX-FVF-300
Minimum Order Quantity 1
Price US$600
Packaging Details Export Standard Plywood case pack, 1pcs/carton
Delivery Time 20 DAYS
Payment Terms D/A, L/C, , D/P, T/T, Western Union, MoneyGram
Supply Ability 50 sets/montly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Dimension 300*300*170mm Plate Size 300*300*50mm
Suitable Products Strip Shape(L≦70mm),thin Clip(Ø5-45mm) Materials Stainless Steel + Hard Plastic
Vibration Vibration Adjustable,mainly At ±5mm Vibration Mode 15 Kinds
Working Type Step Motor Drive, 4pcs Step Motors Manual Control 4pcs Manual Button, For Manual Test

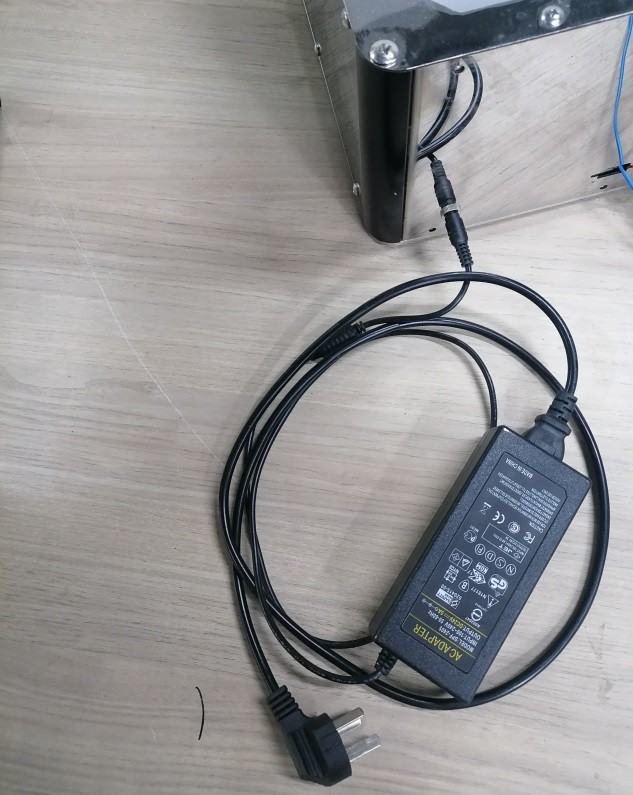

HMI Same Monitor With Machine Vision POE DC 24V/5A, With Adapter
Power Supply AC 220V/50Hz Communication Modbus,can Be Customized As Buyer's Request
Connection RS485
High Light

Small Components Vibration Feeder


Intelligent Flexible Vibration Feeder


Assemble Vibration Feeder

Leave a Message
Product Description

 Intelligent Flexible Vibration Feeder Used On Small Components Feeding For Intelligent Assemble And Manufacturing


  Flexible vibration feeder is a new type of vibration, in the square tray shape,which make it diversified and easy to operate, and make up the disadvantages of traditional vibration products dullness and frequent replacement cumber, It can screen most of small components in factories automatically. It is also known as a flexible feeding plate, flexible vibrating plate,flexible feeder etc.


   With the rapid development of enterprises and the product generation upgrading, it is common to see shifting different materials in production. Traditional vibration feeder are mainly designed and manufactured for single produt independently, recently there are no longer suitable for the new requirements of part updating.


   At present, the flexible vibration feeder equipped with machine vision, effectively solves the headaches of feeding problem of different products like thin sheet, easily scratched and damaged, and irregular workpiece, reduces manual labor intensity, and also avoids secondary damage to the product caused by manual labor. Intelligent processing and assembly help customers build intelligent factories.



Model CLX-FVF-300

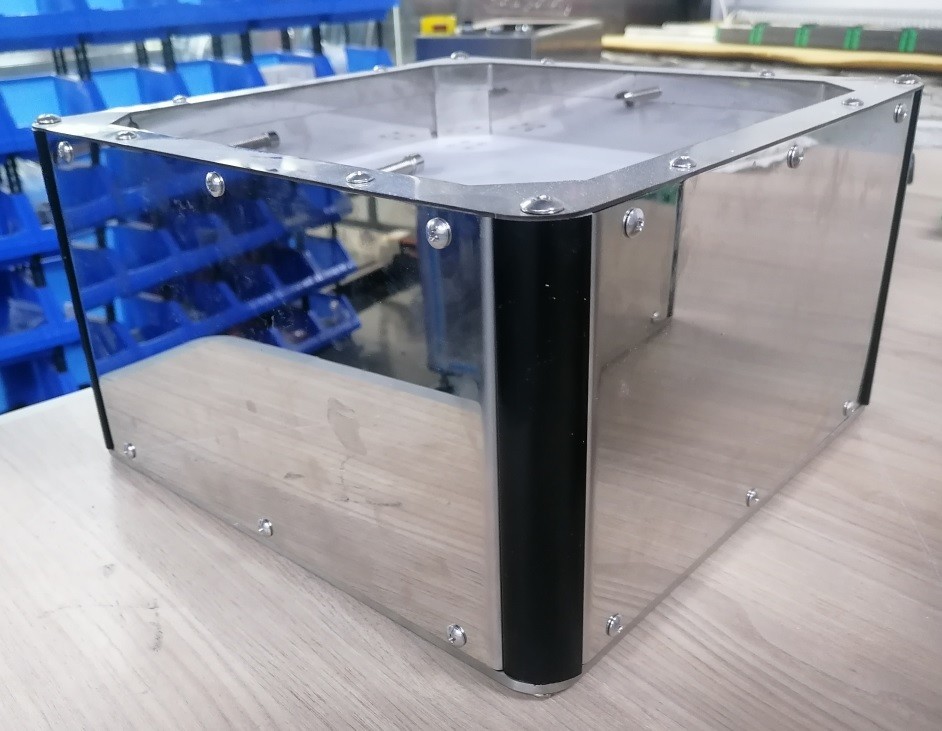

Product Dimension 300*300*170mm

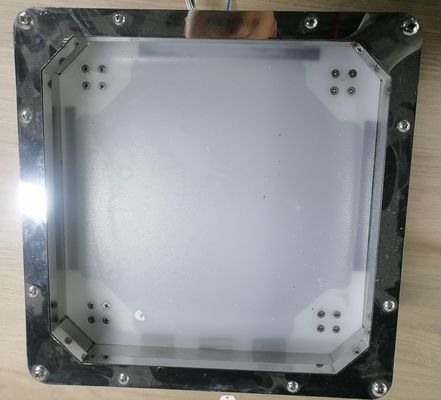

Plate size 300*300*50mm
Suitable products Strip shape(L≦70mm),thin clip(Ø5-45mm)
Materials Stainless steel + hard plastic
Vibration Vibration adjustable,mainly at ±5mm
Max product weight 1.5KG
Working type Step motor drive, 4pcs
Led light Led light optional at Red/Blue/White, Background light with strip or plate light.

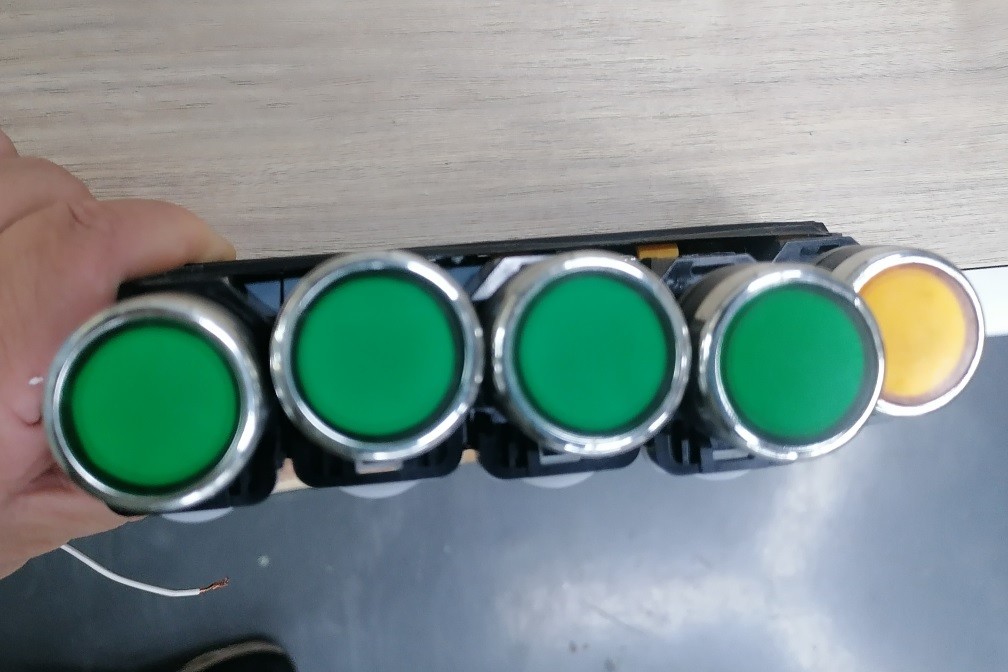

Manual Control 4pcs manual button, for manual test
HMI Same Monitor with machine vision
Moving mode 15 kinds
Communication Modbus,can be customized as buyer's request
Connection RS485



Small Components Intelligent Flexible Vibration Feeder For Assemble Manufacturing 0

                                                                         small vibration parrts


Small Components Intelligent Flexible Vibration Feeder For Assemble Manufacturing 1

   Customized robot is working on garapping the com[onents

Small Components Intelligent Flexible Vibration Feeder For Assemble Manufacturing 2
