AS-RS Carton / Container Stacker Automated Warehouse System XYZ 3-Axis

AS-RS Carton / Container Stacker XYZ 3-Axis, 2000KG Load Capacity, Low Infrastructure Cost Automtic Warehousing System

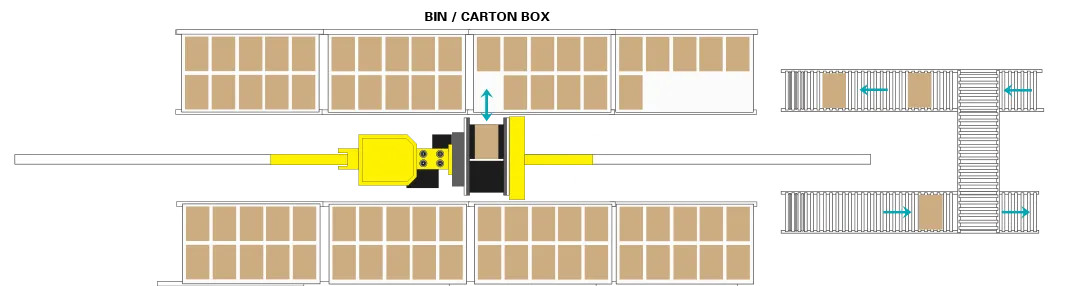

The Automated Storage and Retrieval System (AS-RS) is a new type of modern warehouse that is mainly composed of high-lifting shelves and track tunnel stackers, combined with different kinds of warehouse equipments,  to achieve automatic storage and cargo management.

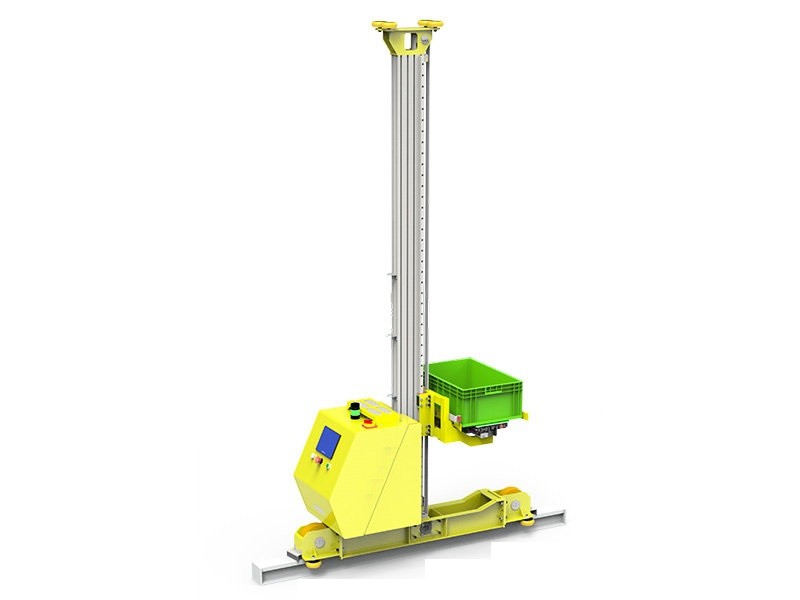

Track tunnel stacker refers to a stacker that travels on ground rails. This type of stacker consists of three key parts: steel ground rails, columns with steel wheels, and forks. The column with steel wheels runs back and forth on the steel rail, and the cargo fork runs up and down on the column. The structure of the steel rail, column, and cargo fork is similar to a three-axis motion platform.

At present, the commonly used tunnel stackers are all ground supported stackers. The metal structure columns of this stacker mainly consider the bending strength in the track plane. Therefore, it is necessary to increase the moment of inertia of the columns in the walking direction section. Due to the fact that the driving devices of the ground supported stacker are all installed on the lower crossbeam, which is easy to maintain and repair, sensors for automatic control can also be installed on the ground, making it convenient to use.

FEATURE

1. Based on XYZ 3-Axis structure, drving system, navigation functions, with AMR function extensibility;

2. For carton and plastic container load/unload;

3. Carton or plastic container max capacity ≦50kg;

4. We suggest shelves height 10-25mm;

Attn: If the shelves height less than 10m, we suggest CTU, if the height is more than 25m, we have to customize the stacker;

5. The load/unload speed is determined by the motion speed of X/Y axis, X/Y travel length and operating time;

6. Only working on container cargo , more stable;

7. WCS: with WCS, for better warehouse management;

8. Intelligence: can work with ERP, WMS, for whole factory intelligent management.

TECHNICAL PARAMETERS

CUSTOMIZATION
