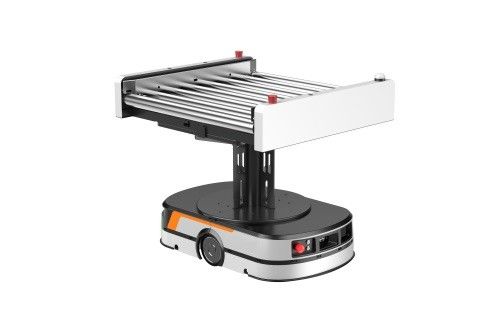

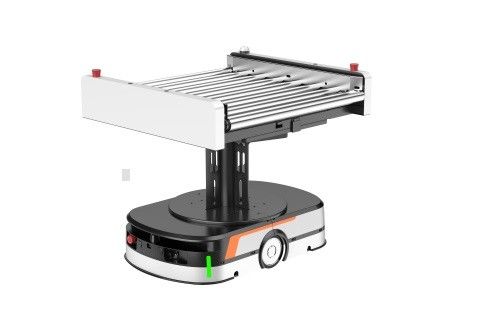

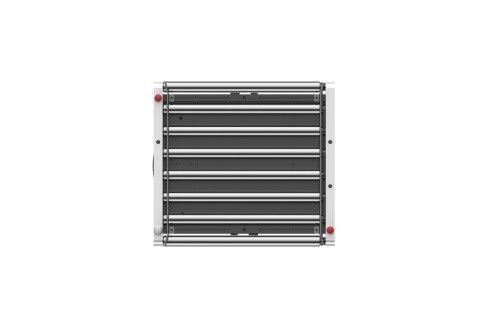

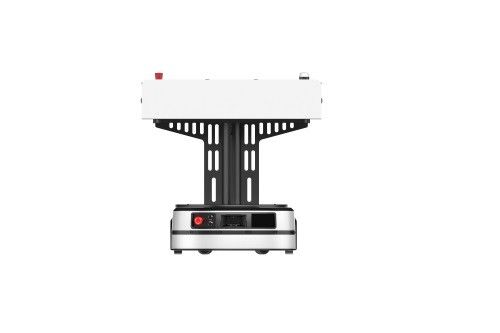

Warehouse System Autonomous Mobile Robots AMR CLX-G010-C
| Place of Origin | China |
|---|---|
| Brand Name | CLX |
| Certification | N/A |
| Model Number | CLX-G010-C |
| Minimum Order Quantity | 1 |
| Packaging Details | Export Standard Plywood case pack, 1pcs/carton |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability | 30 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| AMR | Autonomous Mobile Robot | Navigation | Laser SLAM / Visual (QR Code) |
|---|---|---|---|
| Product Dimensions | 990*890*902mm | Mobile Type | Single Roller |
| Rotation Diameter | 1350mm | Machine Weight | 220kg |
| Load Capacity | 100kg | LCD Display | Yes |
| Touch Screen | Yes | Roller Speed | 0-0.23m/s |
| Roller Ground Height | 790mm | Rated Operating Speed W/O Load | 2.0m/s |
| Rated Operating Acceleration W/O Load | 1.0m/s² | Stop Position Accuracy(mm) | ±5 |
| Stop Angle Accuracy | ±1° | Climbing Ability | 3°/5% |
| Mobile Direction | Forward / Backward + Rotaring + Drifting | Obstacle Avoidance | Forward / Backward Laser |
| Anti-collision Bar Detection | Front/rear Pressure-sensitive Protection Strip Detection | Stop Button | Front/rear Emergency Stop Button |
| Cargo Inspection | Yes | Sound And Light Alarm | Yes |
| Battery | Ternary Polymer Lithium Battery/Lithium Iron Phosphate Battery | Battery Capacity | 48V36Ah |
| Operating Time | ＞8h | Charging Time | ＜1.5h |
| Charging Mode | Automatic/manual | Battery Life | 1000/1500 Cycles |
| Operating Temperature | 0℃-50℃ | Charging Temperature | 0℃-45℃ |
| Operating Humidity | 10%~90% | Communication Mode | 802.11b/g/n/ac |
| Highlight | Autonomous Mobile Robots AMR,Warehouse System Autonomous Mobile Robots,AMR In Warehouse |
||
Product Description
CLX-G010-C Warehouse Equipment System Autonomous Mobile Robots AMR FRONT/REAR Navigation Laser SLAM/Visual (QR Code)
| Model # CLX-G010-C | ||
| Basic | Navigation | Laser SLAM / Visual (QR code) |
| Product Dimensions | 990*890*902mm | |
| Mobile type | Single roller, height adjustable | |
| Rotation Diameter | 1350mm | |
| Net Weight | 220kg | |
| Load Capacity | 100kg | |
| LCD Display | Yes | |
| Touch Screen | Yes | |
| Roller working | Operating Speed | 0-0.23m/s |
| Ground Clearance Height | 790mm | |
| Performance | Rated Operating Speed without load | 2.0m/s |
| Rated Operating Acceleration W/O load | 1.0m/s² | |
| Stop Position Accuracy(mm) | ±5 | |
| Stop Angle Accuracy | ±1° | |
| Climbing Ability | 3°/5% | |
| Mobile direction | Forward / Backward + Rotaring + curve drifting | |
| Safty Treatment | Obstacle Avoidance | Forward / Backward laser |
| Anti-collision Bar Detection | Front/rear pressure-sensitive protection strip detection | |
| Stop Button | Front/rear emergency stop button | |
| Cargo Inspeciton | Yes | |
| Sound and Light Alarm | Yes | |
| Battery | Battery | Ternary polymer lithium battery/Lithium iron phosphate Battery |
| Battery Capacity | 48V36Ah | |
| Operating Time | ＞8h | |
| Charging Time | ＜1.5h | |
| Charging Mode | Automatic/manual | |
| Battery Life | 1000/1500 cycles | |
| Operating Environment | Operating Temperature | 0℃-50℃ |
| Charging Temperature | 0℃-45℃ | |
| Operating Humidity | 10%~90% | |
| Communication Mode | 802.11b/g/n/ac | |
