Heightened Telescopic Belt Conveyor Cargo Loading Machine Automatic Logistic Machine

Place of Origin China
Brand Name CLX
Certification N/A
Model Number CLX-GD-4-6-12

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Type 4-stage Conveyor Line Usage Cargo Like Carton/box Transportation
Control And Drive Motor And Reducer Fixed Section Length 6000mm
Telescopic Section 3 Section, Total 12000mm Installation Free Instruction
Maintenance Low
High Light

Telescopic Belt Conveyor Cargo Loading Machine

,

Heightened Cargo Loading Machine

,

Automatic Logistic Cargo Loading Machine

Leave a Message
Product Description

Automatic logistic machine heightened telescopic belt conveyor cargo loading machine high efficiency and low Maintenance

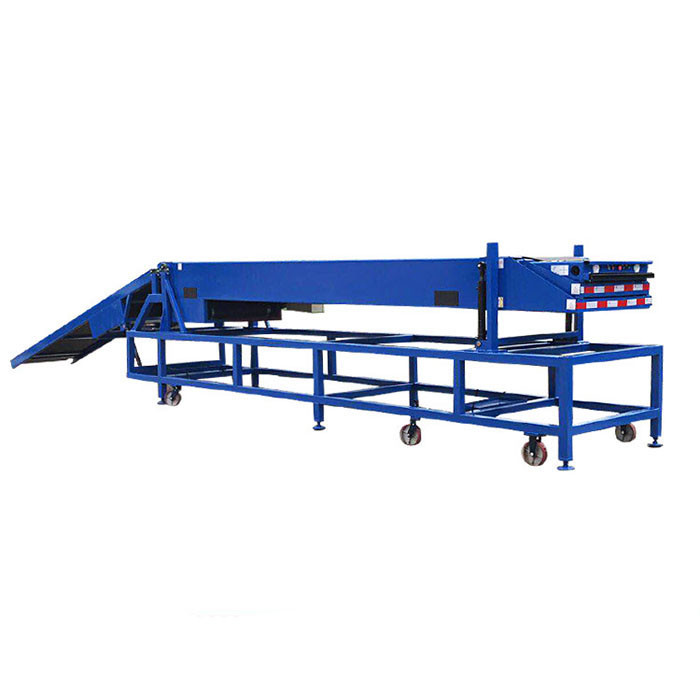

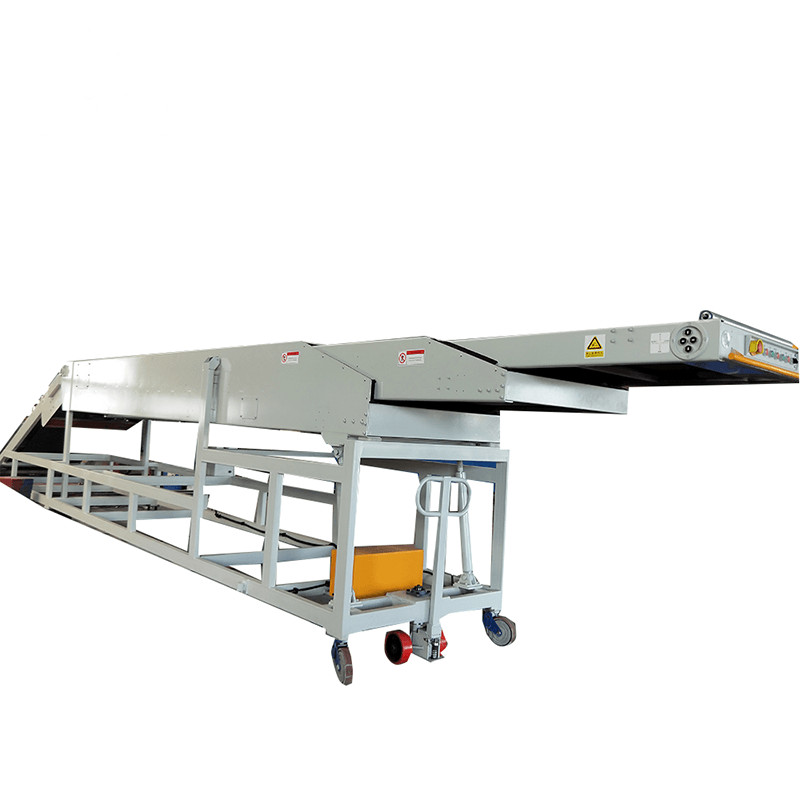

Heightened Telescopic belt Coveyor

Telescopic belt conveyor is a new type belt conveyor which is applied with telescopic mechanisam,and is capable of expanding its length horizontally, it is often used for goods's loading and unloading purpose and material handleing system.

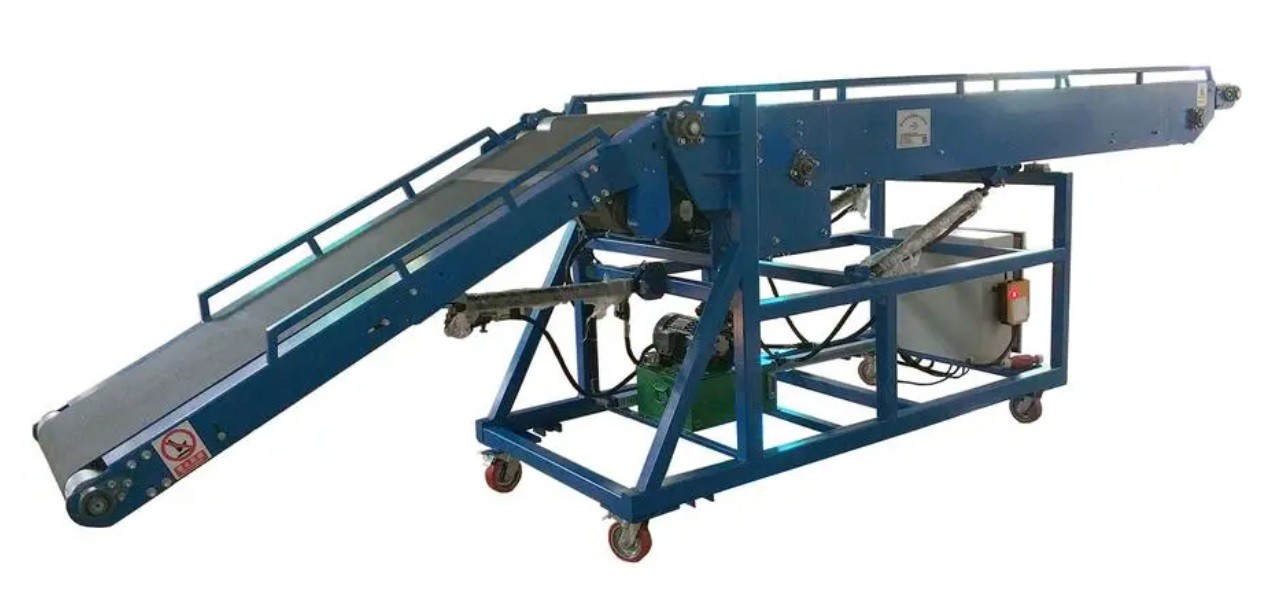

This heightened telescopic belt conveyor is suitable for the vessels trunk more than 1200mm, with one set of inclined conveyor to lift the cargo to horizontal conveyor at height 1600mm, to match the height of vessel trunk.



This heightened telescopic belt conveyor can expand its length horizontally, and widely used in logsitic distribution cenrer, post express industry, tire industry, E-commerce industry, even fruit and vegetable industry etc.

Features:

* Package Type: Carton, Bag, Tire, Baggage, Parcels etc;

* The height of this fixed telescopic belt conveyor shall match with the trunk heigth, maybe need one loading plaform on cargo loading and unloading;

* Rated Load Capacity: 50kg/m2;

* Machine structure can be customized as buyer's request;

* Fixed conveyor can be customized at 4500mm, 6000mm, 8000mm etc;

* Extenable conveyor can be customized 1 section, 2 sections and 3 sections,

* Different kinds of belt can be selected, like plastic chain belt, rubber, chemical fiber, enhanced PVC, with oil resistant, wear  resistant and cut resistant;



Explanation of Model Number:



CLX GD 4 6 12
Brand Name GD- Fixed Telescopic Conveyor
TG- Enhanced Telescopic Conveyor
4 Sections
Optional 2 and 3 sections
Fixed conveyor length 6000mm
optional 4500mm, 8000mm
Telescopic Conveyor length 12000mm

Technical Parameters:

Item  Description Parameters
1 Machine Structure Carbon steel with painting, with endurable steel
2 Conveyor capacity  Speed adjustable at 10-40 m/min, with 50kg/m2
3 Fix Conveyor   Enhanced PVC belt, belt width 1000mm
4 Telescopic Conveyor  Enhanced PVC belt, belt width 800mm
5 Total Sections  2-4 sections for seleciton, at least one fixed section and one telescopic section
6 Machine Dimension  Customized ( Refer details list)
7 Belt runing deviation Within 15mm, with deviation correction function
8 Drive Motor  SEW, 0.75- 1.1Kw
9 Power Supply AC 380v/50Hz, 3 Phase
10 Control Parts With indepent power cabinet





Product Dimensions:

Heightened Telescopic Belt Conveyor Cargo Loading Machine Automatic Logistic Machine 0

Model Sections Qty Inclined length
(mm) -L
Lifting Height
(mm) - H2/H1
Fixed length
(mm) - A
Telescopic length (mm) -B Belt Width Speed
CLX-TG-2-6-4 2 3500-4000 750 / 1600 6000 4000 1000/800 25-35 m/min
CLX-TG-2-8-6 2 3500-4000 750 / 1600 8000 6000 1000/800 25-35 m/min
CLX-TG-3-4.5-5 3 3500-4000 750 / 1600 4500 5000 1000/800 25-35 m/min
CLX-TG-3-6-7.5 3 3500-4000 750 / 1600 6000 7500 1000/800 25-35 m/min
CLX-TG-3-8-10 3 3500-4000 750 / 1600 8000 10000 1000/800 25-35 m/min
CLX-TG-4-5.5-10 4 3500-4000 750 / 1600 5500 10000 1000/800 25-35 m/min
CLX-TG-4-6-12 4 3500-4000 750 / 1600 6000 12000 1000/800 25-35 m/min



Heightened Telescopic Belt Conveyor Cargo Loading Machine Automatic Logistic Machine 1
