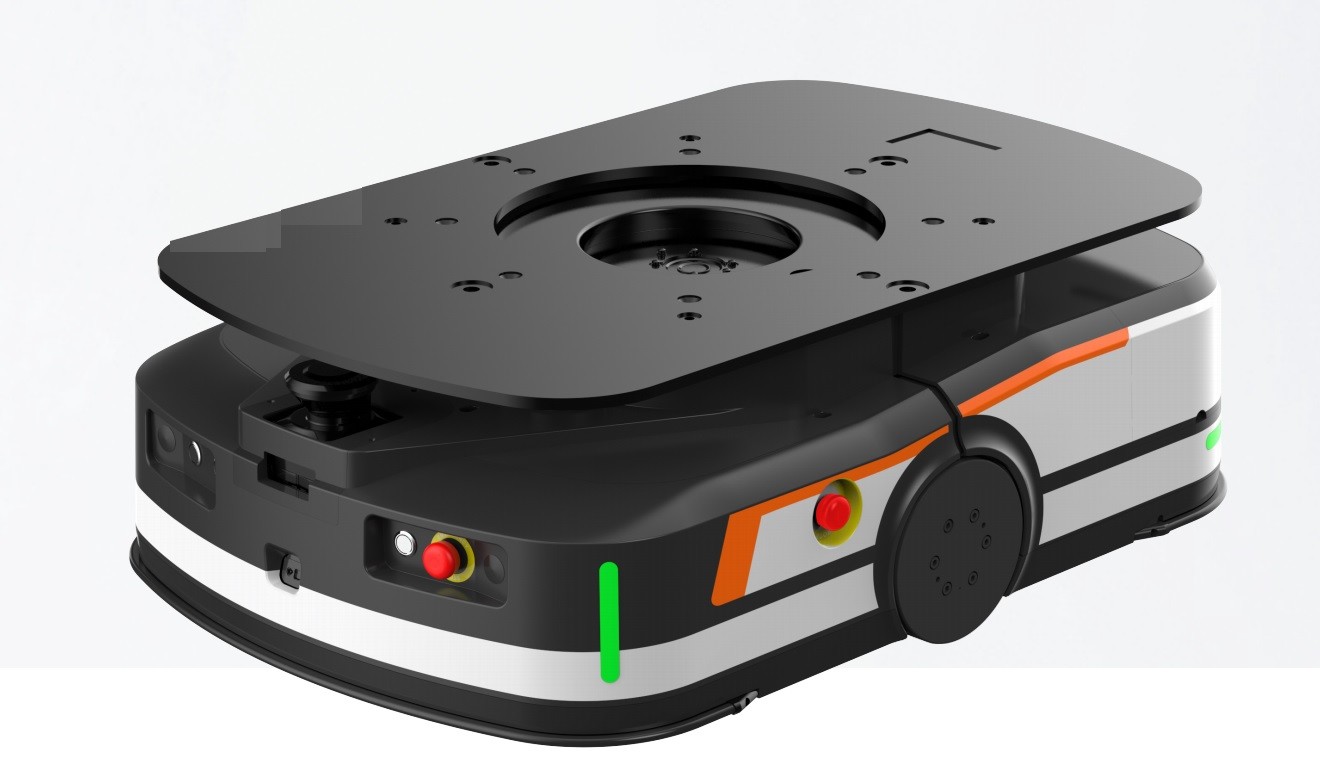

Latent Lifting Max Load 600kg AMR Warehouse Equipment Systems QR Code Visual

Place of Origin China
Brand Name CLX
Certification N/A
Model Number CLX-RTA-C060
Minimum Order Quantity 1
Packaging Details Export Standard Plywood case pack, 1pcs/carton
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 30 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Dimensions 990*630*250mm Rotation Diameter 990mm
Lifting Height 70mm Ground Clearance Height 20mm
Lifting Pallet Dimensions 900*550mm Lifting Method Electric
Machine Weight 160kg Load Capacity 600kg
LCD Display Yes Touch Screen Yes
Navigation QR Code Visual Communication Mode 802.11b/g/n/ac
Drive Different Kinds Drive Types Max. Operating Speed 2.0m/s
Max. Operating Acceleration 1m/s² Stop Position Accuracy ±10mm
Stop Angle Accuracy ±1° Climbing Ability 3°/5%
Obstacle Crossing Height 10mm Obstacle Avoidance Method Front Laser
Anti-collision Detection Front/rear Pressure-sensitive Protection Strip Detection Stop Button Front/rear Emergency Stop Button
Sound And Light Alarm Yes Battery Type Ternary Polymer Lithium Battery/Lithium Iron Phosphate Battery
Battery Capacity 48V36Ah Operating Time >8h
Charging Time <2h Charging Mode Automatic/manual
Battery Life 1000/1500 Cycles Operating Temperature -10℃-50℃
Charging Temperature 0℃-45℃ Operating Humidity 10%~90%
High Light

AMR Warehouse Equipment Systems

,

QR Code Visual Navigation AMR Robot

,

600kg Warehouse Equipment Systems

Leave a Message
Product Description



Model # CLX-RTA-C060

Basic Product Dimensions 990*630*250mm
Rotation Diameter 990mm
Lifting Height 70mm
Ground Clearance Height 20mm
Lifting Pallet Dimensions 900*550mm
Lifting Method Electric
Net Weight 160kg
Load Capacity 600kg
LCD Display Yes
Touch Screen Yes
Navigation Visual (QR code)
Communication Mode 802.11b/g/n/ac
Drive Differential Drive
Performance Max. Operating Speed 2.0m/s
Max. Operating Acceleration 1m/s²
Stop Position Accuracy ±10mm
Stop Angle Accuracy ±1°
Climbing Ability 3°/5%
Obstacle Crossing Height 10mm
Obstacle Avoidance Obstacle Avoidance Method Front laser
Anti-collision Bar Detection Front/rear pressure-sensitive protection strip detection
Stop Button Front/rear emergency stop button
Sound and Light Alarm Yes
Battery Battery Ternary polymer lithium battery/Lithium iron phosphate Battery
Battery Capacity 48V36Ah
Operating Time 8h
Charging Time 2h
Charging Mode Automatic/manual
Battery Life 1000/1500 cycles
Operating Environment Operating Temperature -10-50
Charging Temperature 0-45
Operating Humidity 10%~90%
