High Speed Automatic Bagging Machine For Pre-Made Flat Bags Frozen Foods Nugget

Place of Origin China
Brand Name CLX
Certification CE
Model Number CLX-GD8-250
Minimum Order Quantity 1
Price 35000
Packaging Details Export standard carton pack, 1 pc/ carton
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram, Cash

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model # CLX-GD8-250 Material Whole Machine Made Of SS#304, For Food Grade
Control Unit PLC Control System, With Touch Screen Operation Rotary Control With High Accuracy Splitter And Servo Motor Control, Total 8 Working Stations
Suitable For Bags Pre-made Flat Bags, Doypack Bags, Zipper Bags, Gusseted Bag, Spout Bag Bag Materials Composited Film Like OPP/CPP, OPP/CE,PET/PE Etc
Bag Length 130-350mm Bag Width 100-250mm
Weight Range 100-1000g, As Products Details Packaging Speed 20-50 Bags/min, The Packaging Speed Is Determined By Your Working Procedures Request And Product Details
Power Supply AC380V, 50Hz, 3P, 4.5kw Air Consumption 200L/min, 0.6Mpa, Not Incuding Air Compressor
High Light

High Speed Automatic Bagging Machine


Nugget Automatic Bagging Machine


Frozen Foods Automatic Bagging Machine

You can tick the products you need and communicate with us in the message board.
7 days delivery
Leave a Message
Product Description


High Speed And Stable Automatic Bagging Machine For Pre-Made Flat Bags Frozen Foods, Nugget, Meat Ball, Fish Ball Etc


Rotary type automatic bagging machine is widely used in different field, like dry foods, snacks, puffy foods, frozen foods. All the bags are pre-made with different type:

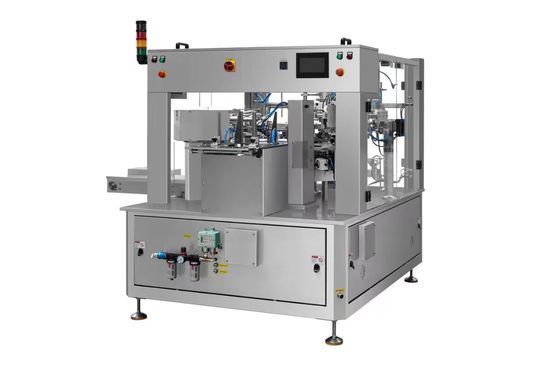

High Speed Automatic Bagging Machine For Pre-Made Flat Bags Frozen Foods Nugget 0


This rotary automatic bagging machine is always made with high accuracy Splitter and servo motor control, generally at 6 or 8 working stations. Here refer to the working procedures of 8 stations as followings:

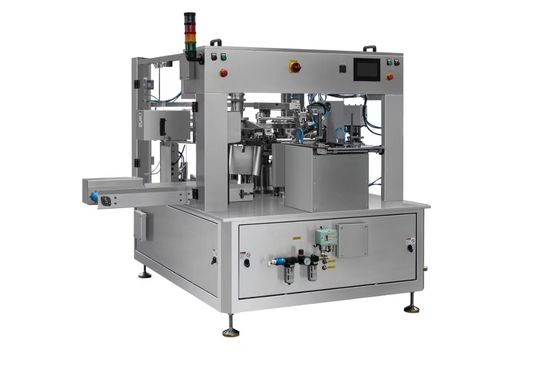

High Speed Automatic Bagging Machine For Pre-Made Flat Bags Frozen Foods Nugget 1

Here are further explantions of different working stations:

* Bag Infeed Positon :  Horizontal belt type or Vertical type

* Station 1: The manipulator grippes one bag, and place to rotary body;

* Station 2: It finish date coding here, or finish the zipper opening;

* Station 3: It clamp the bags and blow air into the bags, to ensure maximum opening the bags;

* Station 4: Make sure the top edge fully opend. meanwhile try to make the gusset opening to enlarge the bag volume;

* Station 5: It finish bag filling. If the product is more than 2kg, customize one set of vibration device to shake the bags;

* Station 6: It finish second filling, like warranty card, oxygen absorber bag, or manual etc, meanwhile finish zipper sealing here;

* Station 7: It finish thermal sealing on top opening, meanwhile degas the air in the bag;

* Station 8: It finish cold sealing and finish product out-taking.


Meanwhile, the funciton of these different working stations may customized as buyer's special packaging request.


* Whole machine with mechnical transmission, with stable performance, simple maintenance with low failure rate;

* With vacuum bag opening, more steady and accurate;

* Different bag widths can be easily adjusted within limit 100-250mm;

* No product filling if no bag in position, no product filling if bag not opening;

* With safty protection doors, to avoid human injury;

* Worktable waterproof function.

* It is easy to track the machine faults on touch screen visual display, for quick trouble shooting;

* Sanitary standards for machine structure, and easy to clean;

* Adopting advanced technology, user-friendly design, touch screen control system, simple and convenient;

* Excellent electrical and pneumatic components ensure stable machine operation and achieve efficient and low failure mass production.

Technical Parameters:

                                             Automatic Bagging machine for Pre-made bags
Model No CLX-GD8-250
Control System PLC Control system, with touch screen operations, English display
Driving System Servo motor driving, with high accuracy Splitter
Bag type Suitable for different kinds of pre-made flat bags, like 4 side seal bag, standup bags, zipper bag, paper bag, gusseted bags etc
Working Principle 8 rotary working stations, to finish differnt procedures step by step
Bag Length 130-350mm
Bag Width 100-250mm,bag gripper can be easily adjusted on touch screen
Target Weight 100-1000g, the target weight is determined by your product characterics
Packaging Speed 20-50 bags/min, the packaging speed is determined by your product characteris, weighing speed etc;
Power Supply AC 380V / 50Hz, 3phase, 4.5kw
Air Consumption 200L/min,0.6Mpa, not including air compressor
Saftety Treatment 1. No bag, no filling, no sealing;
2. Bag not opening, no filling, no sealing
3. With warning on thermal heating device
4.The machine automatically shuts down when air pressure less than pre-set value
5.With safety protection door;
6.The machine automatically shuts down when the safety protection door not closed

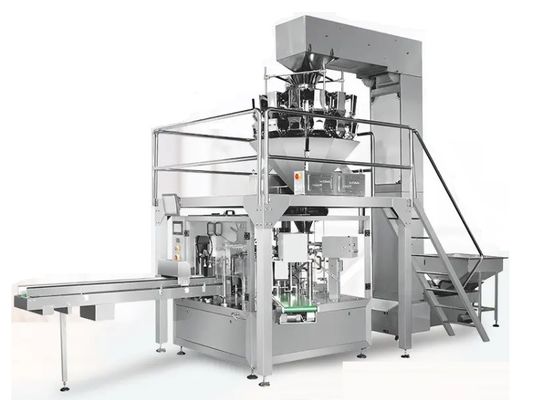

High Speed Automatic Bagging Machine For Pre-Made Flat Bags Frozen Foods Nugget 2

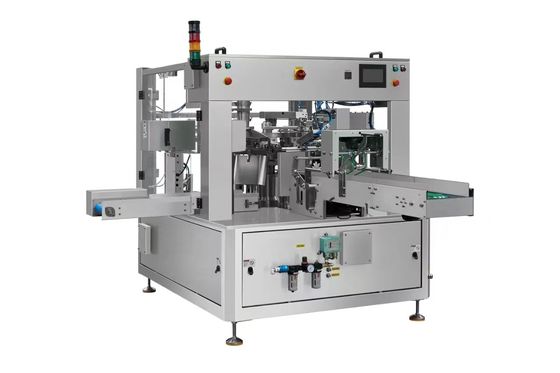

High Speed Automatic Bagging Machine For Pre-Made Flat Bags Frozen Foods Nugget 3
