Automatic Vertical Food Packaging Machine For Coffee Powder In Quadro Bags
| Place of Origin | China |
|---|---|
| Brand Name | CLX |
| Certification | CE |
| Model Number | CLX-VQ520 |
| Minimum Order Quantity | 1 |
| Price | 35000 |
| Packaging Details | Export standard carton pack, 1 pc/ carton |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Cash |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model # | CLX-VQ520 | Material | Whole Machine Made Of SS#304, For Food Grade |
|---|---|---|---|
| Control Unit | PLC Control System, With Touch Screen Operation | Suitable For Bags | Quadro Bag With Composited Film |
| Bag Materials | Composited Film Like Film PET/aluminum/PET, PET/aluminum/BOPP Etc, Film Thickness 0.09-0.12mm; | Bag Length | 100-350mm |
| Bag Width | 70-200mm | Side Gusset Width | 40-100mm |
| Packaging Speed | 20-50 Bags/min, The Packaging Speed Is Determined By Your Product Characteristics And Weighing Speed | Power Supply | AC220V, 50Hz, 2.2kw |
| Air Consumption | 500L/min, 0.8Mpa, Not Incuding Air Compressor | ||
| High Light | Coffee Powder Vertical Packaging Machine,Quadro Bags Food Packaging Machine,Automatic Food Packaging Machine |
||
You can tick the products you need and communicate with us in the message board.
| 7 days delivery |
|---|
Product Description

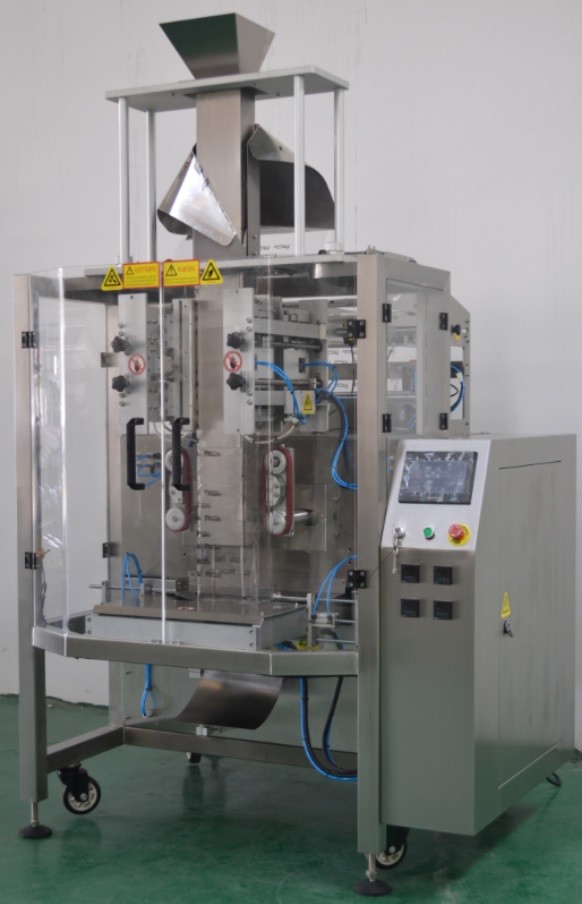

Innovated Stable Automatic Vertical Packaging Machine For Coffee Powder In Quadro Bags With Degas Valve
Quadro bag type is widely used on coffee packaging, like coffee bean, coffee powder, ground coffee, and also some snacks packaging. Now quadro bag is very popular because of its good apperance.
Meanwhile, in order to have a better perfomance on quadro bag forming, we suggest the packaging film with aluminum foil, and the composited film thickness at least 0.08mm.
FEATURE
* Whole machine with mechnical transmission, with stable performance, simple maintenance with low failure rate;
* Customized for quadro bag type, with steady working;
* Worktable waterproof function.
* It is easy to track the machine faults on touch screen visual display, for quick trouble shooting;
* Sanitary standards for machine structure, and easy to clean;
* Adopting advanced technology, user-friendly design, touch screen control system, simple and convenient;
* Excellent electrical and pneumatic components ensure stable machine operation and achieve efficient and low failure mass production.
Technical Parameters:
| Automatic Packaging machine for Quadro Bags | |
| Model No | CLX-VQ520 |
| Control System | PLC Control system, with touch screen operations, English display |
| Bag type | Customized with quadro bag former, for quadro bags |
| Film | With composited film with aluminum foil, film thickness more than 0.08mm; |
| Working Principle | Pillow bag packaging machine with quadro bag former |

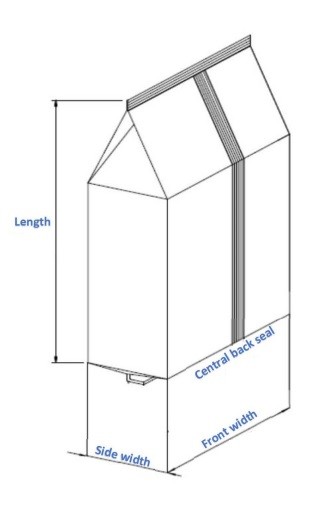

| Bag Length | 100-350mm |
| Front Width | 70-200mm |
| Side Width | 40-100mm |
| Target Weight | 100-1000g, the target weight is determined by your product characterics |
| Packaging Speed | 20-50 bags/min, the packaging speed is determined by your product characteris, weighing speed etc; |
| Power Supply | AC220V / 50Hz, 2.2kw |
| Air Consumption | 0.8Mpa, 0.5m3/min; not including air compressor |
Key parts list
| Item | Parts Name | Country | Brand |
| 1 | HMI Touch screen | China, TAIWAN | WEINVIEW |
| 2 | PLC Controller | Japan | Mitsubishi |
| 3 | Servo Motor and Driver | China, SHENZHEN | INOVANCE |
| 4 | Color Sensor | China, SHANGHAI | AISET |
| 5 | Temperature controller | China, SHANGHAI | AISET |
| 6 | Horizontal sealing cylinder | China, TAIWAN | AIRTEC |
| 7 | Vertical sealing cylinder with guide rod | China, TAIWAN | AIRTEC |
| 8 | Thin cylinder for Cutting blade | China, TAIWAN | AIRTEC |
| 9 | Stretching film Cylinder | China, TAIWAN | AIRTEC |
| 10 | dyad | China, TAIWAN | AIRTEC |
| 11 | Pressure valve with pressure gauge | China, TAIWAN | AIRTEC |
| 12 | Electromagnetic valve with plate | China, TAIWAN | AIRTEC |
| 13 | Inflation solenoid valve | China, TAIWAN | AIRTEC |
| 14 | Ribbon coding device | China, ZHEJIANG | Dingsheng |
| 15 | Solid state relay | China, TAIWAN | FOTEK |
| 16 | Intermediate relay | Germany | WEIDMUELLER |
| 17 | Power Supply | China, TAIWAN | MEANWELL |
Degas Valve Device
* One-way degas valve is a necessary parts to keep coffee bean fresh, to avoid the coffee gone taste.
* Whole set of degas valve feeding and assemble device, detail as following:
* We can also supply such degas valve if the buyer have such request;
