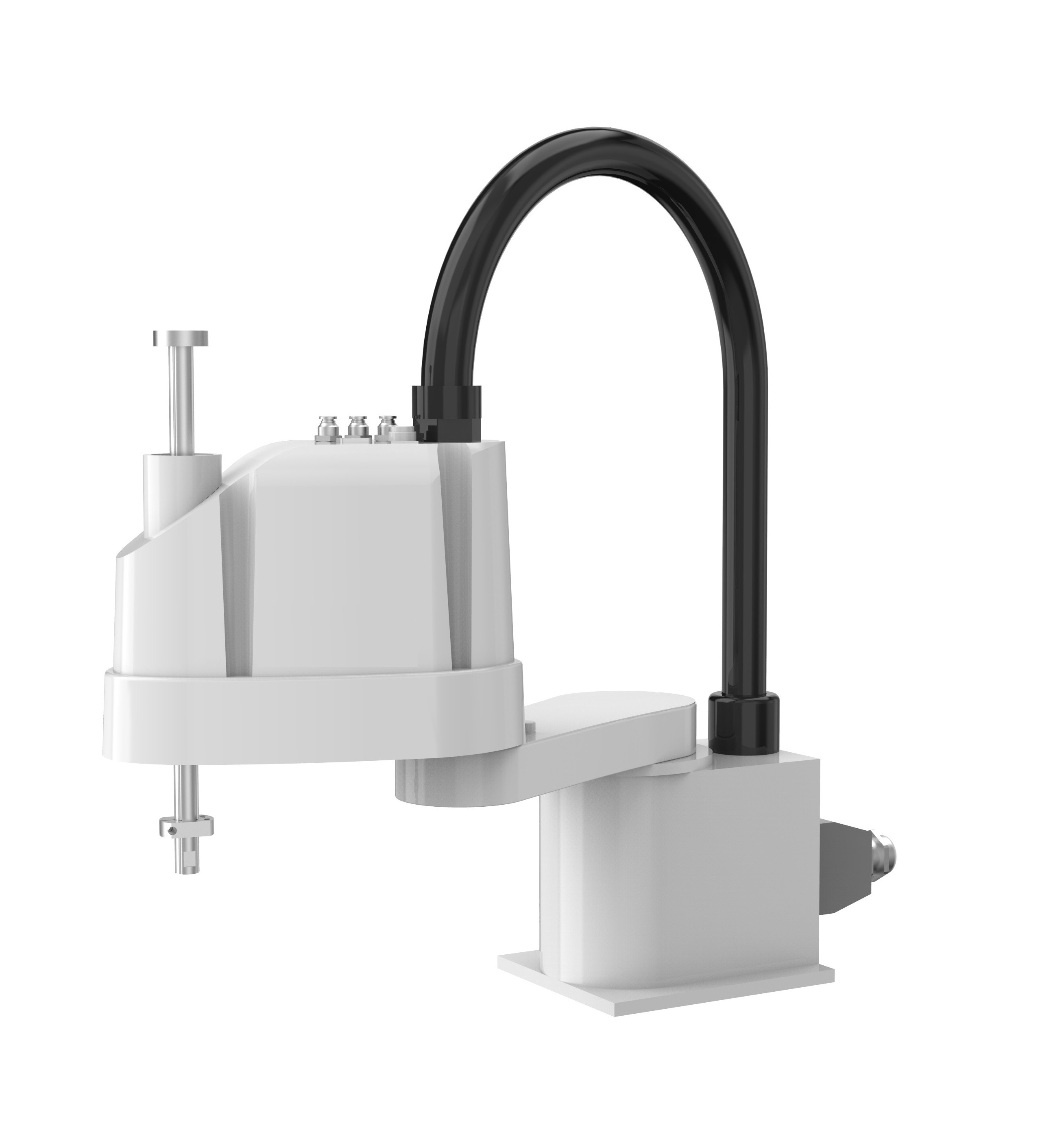

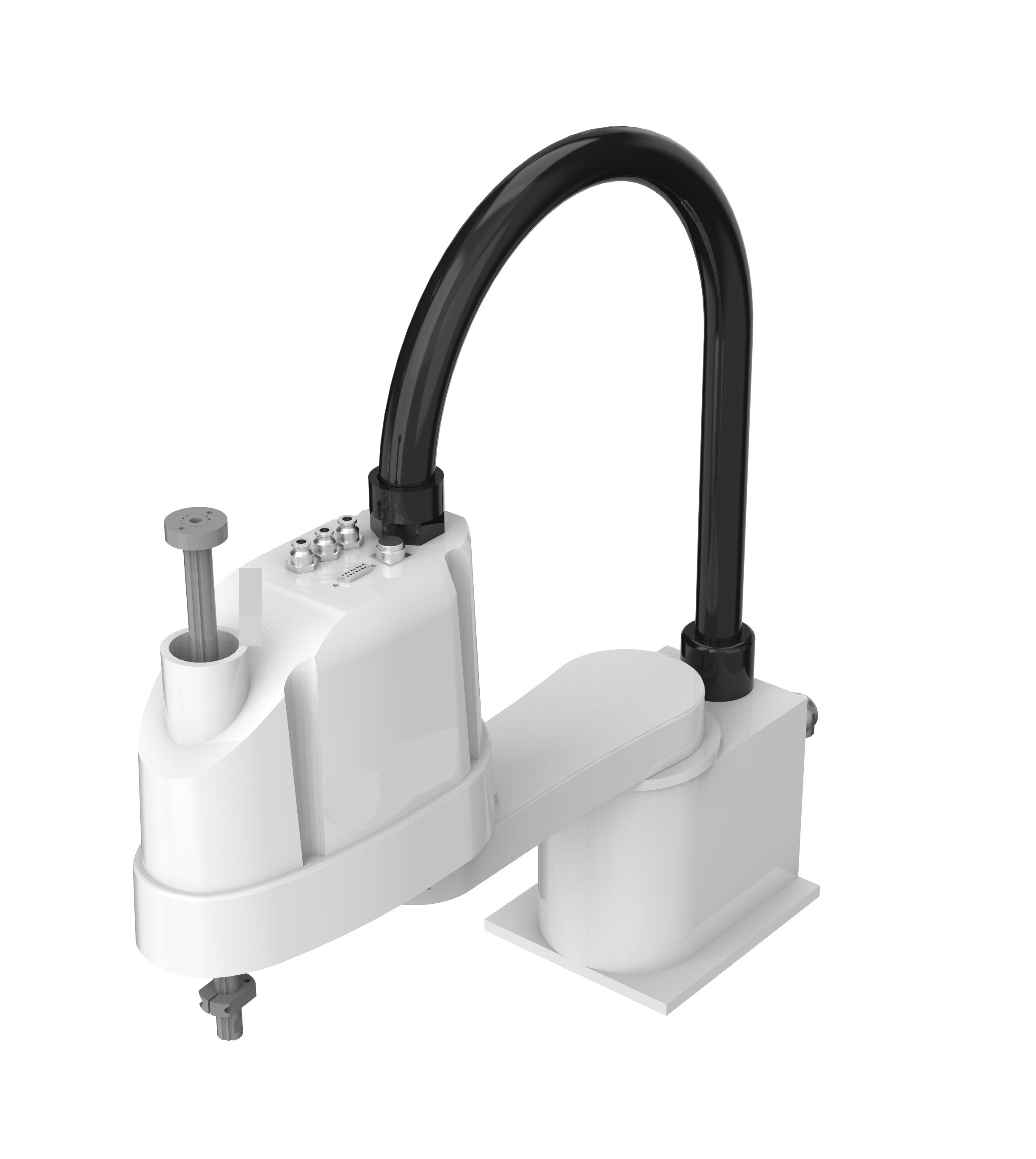

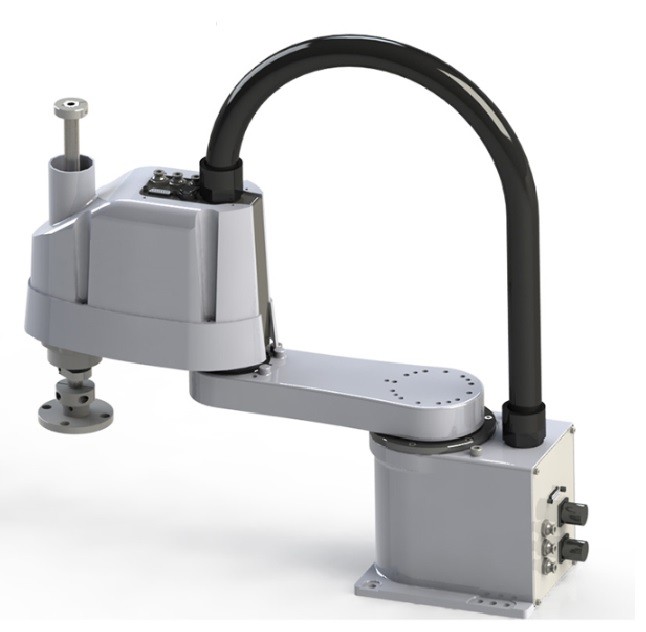

SCARA Industrial Automation Equipment Assembly Robot Arm For Different Applications

Place of Origin China
Brand Name CLX
Certification CE
Model Number CLX-SR3400
Minimum Order Quantity 1
Packaging Details Export Standard Plywood case pack, 1pcs/carton
Delivery Time 20 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50 sets/montly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Selective Compliance Assembly Robot Arm Degree Of Freedom 4
Maximum Load 3KG Specified Load 1KG
Maximum Working Radius 400mm Repeatability ±0.01-0.05mm
Working Temperature 0~45° Humidity 20%~80%
Working Surrounding Keep Away From Electronic Noise Sources I/O Parameter Digital:32 Inputs, 31 Outputs (one For Control Cabinet Fault Indicator Output)
Battery Capacity 0.6kVA Rated Power 0.5kW
Rated Voltage AC220V/50Hz Rated Current 2.7A
Protection Grade IP54 Installation Method Ground Installation、desktop Installation
Body Weight 17kg Structure With Main Body, Control Cabinet And Operation Panel
Applications Locking Screws, Glue Dispensing, Welding, Assembly Or Placing
High Light

SCARA Assembly Robot Arm


Industrial Assembly Robot Arm


Industrial Robot Arm Automation Integration

Leave a Message
Product Description

Cost effective Selective Compliance Assembly Robot Arm SCARA Industrial Automation Equipment for different applications

Product Description:

SCARA - Selective Compliance Assembly Robot Arm
The SCARA robot has three rotating joints, with their axes parallel to each other, for positioning and orientation in the plane. The other joint is the moving joint, which is used to complete the movement of the end piece perpendicular to the plane.
The position of the wrist reference point is determined by the angular displacement of the two rotating joints φ 1 and φ 2. It is determined by the displacement z of the moving joint, i.e. p=f( φ 1, φ 2, z).
This type of robot has a lightweight structure and fast response. For example, the Adept1 SCARA robot can move at a speed of up to 10m/s, which is several times faster than general articulated robots. It is most suitable for flat positioning and vertical assembly operations
Industrial robot CLX-SR3400
Degree of freedom 4
Maximum load/specified load 3kg/1kg
Maximum working radius 400mm
Repeatability ±0.01mm
Range of motion J1 ±132°
J2 ±141°
J3 0-150mm
J4 ±360°
Rated speed J1 360°/s,6.28rad/s
J2 470°/s,8.19rad/s
J3 710mm/s
J4 1500°/s,26.16rad/s
Maximum speed J1 530°/s,9.24rad/s
J2 700°/s,12.21rad/s
J3 1065mm/s
J4 2600°/s,43.35rad/s
Allowable moment of inertia J4 0.05kg㎡/0.005kg㎡
Allowable torque J4 3.29Nm
Applicable environment Temperature 0~45°
Humidity 20%~80%
Other Avoid contact with flammable, explosive or corrosive gases and liquids. Keep away from electronic noise sources (plasma).
Cable Length of Instructor Optional (if configured, the teach pendant cable length is 8 meters)
Body-cabinet connection length 3metre
I/O parameter Digital:32 inputs, 31 outputs (one for control cabinet fault indicator output)
Battery capacity 0.6kVA
Rated power 0.5kW
Rated voltage AC220V/50Hz
Rated current 2.7A
protection grade IP54
Installation method Ground installation,desktop installation
Body weight 17kg
Control cabinet protection grade IP53
Control cabinet size 500(wide)×270(thick)×530(high)-can stand
Control cabinet weight 38KG


SCARA working on placing disorderly products in good order

SCARA Industrial Automation Equipment Assembly Robot Arm For Different Applications 0
SCARA working on glue dispensing
SCARA Industrial Automation Equipment Assembly Robot Arm For Different Applications 1
SCARA working on welding
SCARA Industrial Automation Equipment Assembly Robot Arm For Different Applications 2


CLX Robotic Automation Integration Customization Service as following
SCARA working with machine vision system
SCARA Industrial Automation Equipment Assembly Robot Arm For Different Applications 3
SCARA working in suspension installtion
SCARA Industrial Automation Equipment Assembly Robot Arm For Different Applications 4
SCARA working with flexibile vibrator
SCARA Industrial Automation Equipment Assembly Robot Arm For Different Applications 5

Brand Name: CLX

Model Number: N/A

Place of Origin: China

User-Friendly: Easy To Use And Requires Minimal Training

Compatibility: Works With Various Systems And Applications

Intelligence: Uses AI And Machine Learning For Intelligent Decision Making

Cost-Effective: Saves Time And Resources, Leading To Cost Savings

Function: Automate Repetitive And Rule-based Tasks

Our CLX Robotic Automation Integration offers customized services to meet your specific needs and requirements. With our expertise and experience in Automation Fixtures, Industrial Automation Machinery, and Automation Assembly Line, we can provide the perfect solution for your business.

Our user-friendly system is easy to use and requires minimal training, ensuring a smooth integration process. It is also compatible with various systems and applications, making it adaptable to your existing infrastructure.

Our CLX Robotic Automation Integration is intelligent, utilizing AI and machine learning to make intelligent decisions and improve efficiency. This not only saves time but also reduces the risk of human error.

By automating repetitive and rule-based tasks, our service helps to increase productivity and reduce labor costs, making it a cost-effective solution for your business.

Experience the benefits of our CLX Robotic Automation Integration and take your business to the next level. Contact us now to learn more about our customization services.


Packing and Shipping:

Robotic Automation Integration Packaging and Shipping

Thank you for purchasing our Robotic Automation Integration product. In order to ensure the safe and timely delivery of your purchase, please read the following packaging and shipping instructions:

  • Our product will be packaged in a sturdy box with sufficient padding to protect it during transit.
  • Once your order has been processed, you will receive a notification email with the tracking number.
  • Please keep the packaging materials in case you need to return or exchange the product.
  • We offer free standard shipping within the United States. For international orders, additional shipping charges may apply.
  • For any inquiries or concerns regarding the packaging or shipping of your order, please contact our customer service team.

Thank you for choosing our Robotic Automation Integration product. We hope it will bring efficiency and convenience to your daily tasks.



  • Q: What is the brand name of this product?
  • A: The brand name of this product is CLX.
  • Q: What is the model number of this product?
  • A: The model number of this product is N/A.
  • Q: Where is this product made?
  • A: This product is made in China.
  • Q: Can this product be integrated with other robotic systems?
  • A: Yes, this product is designed for easy integration with other robotic systems.
  • Q: What is the main function of this product?
  • A: The main function of this product is to automate various tasks and processes.
  • Q: Is this product suitable for small businesses?
  • A: Yes, this product is suitable for small businesses as well as larger enterprises.
