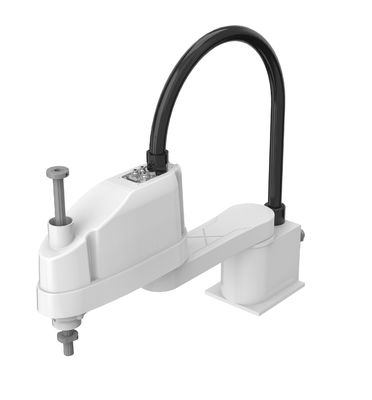

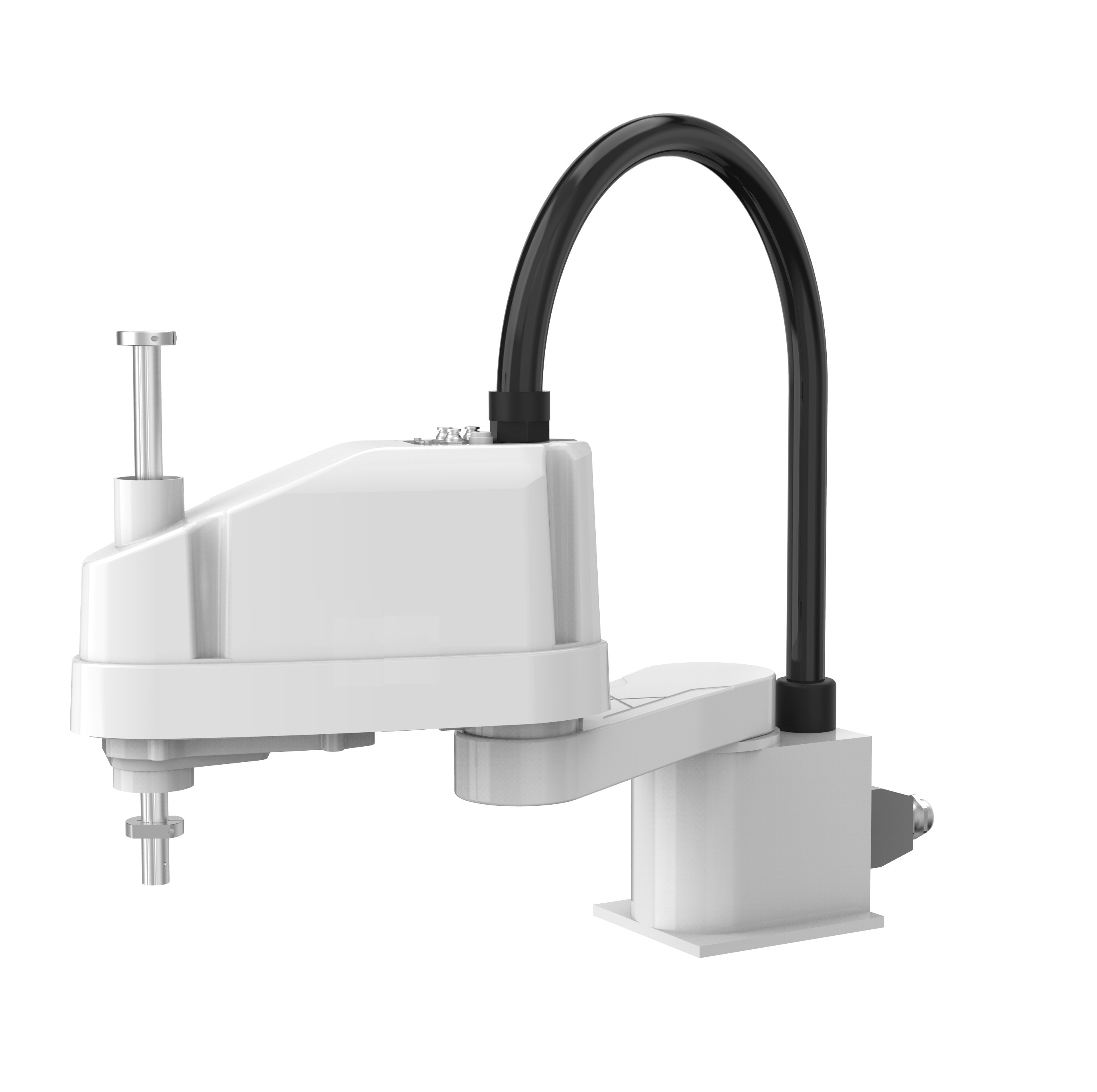

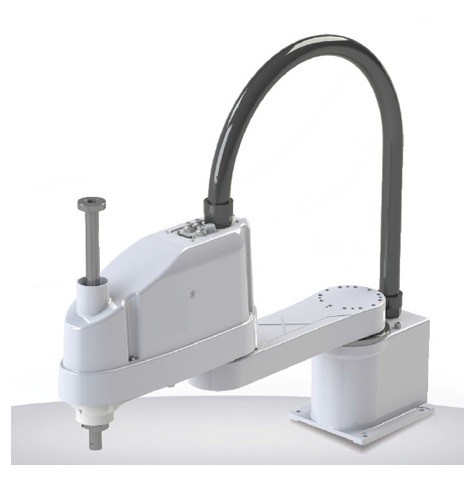

SCARA Robot Industrial Automation Equipment Scale To Handle Large Volume
| Place of Origin | China |
|---|---|
| Brand Name | CLX |
| Certification | CE |
| Model Number | CLX-SR6600 |
| Minimum Order Quantity | 1 |
| Packaging Details | Export Standard Plywood case pack, 1pcs/carton |
| Delivery Time | 20 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50 sets/montly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Selective Compliance Assembly Robot Arm | Degree Of Freedom | 4 |
|---|---|---|---|
| Maximum Load | 6KG | Specified Load | 2KG |
| Maximum Working Radius | 500mm | Repeatability | ±0.02-0.05mm |
| Working Temperature | 0～45° | Humidity | 20%～80% |
| Working Surrounding | Keep Away From Electronic Noise Sources | I/O Parameter | Digital：32 Inputs, 31 Outputs (one For Control Cabinet Fault Indicator Output) |
| Battery Capacity | 0.8kVA | Rated Power | 0.6kW |
| Rated Voltage | AC220V/50Hz | Rated Current | 3.2A |
| Protection Grade | IP54 | Installation Method | Ground Installation、desktop Installation |
| Body Weight | 21kg | Structure | With Main Body, Control Cabinet And Operation Panel |
| Applications | Locking Screws, Glue Dispensing, Welding, Assembly Or Placing | ||
| High Light | 500mm Industrial Automation Equipment,Large Volume Industrial Automation Equipment,SCARA Robot Industrial Automation Equipment |
||
Product Description
Scalability Easily Scale To Handle Large Volume SCARA Industrial Automation Equipment for different applications
Product Description:
SCARA - Selective Compliance Assembly Robot Arm
The SCARA robot has three rotating joints, with their axes parallel to each other, for positioning and orientation in the plane. The other joint is the moving joint, which is used to complete the movement of the end piece perpendicular to the plane.
The position of the wrist reference point is determined by the angular displacement of the two rotating joints φ 1 and φ 2. It is determined by the displacement z of the moving joint, i.e. p=f( φ 1, φ 2, z).
This type of robot has a lightweight structure and fast response. For example, the Adept1 SCARA robot can move at a speed of up to 10m/s, which is several times faster than general articulated robots. It is most suitable for flat positioning and vertical assembly operations
Specifications:
| Industrial robot | CLX-SR6600 | |
| Degree of freedom | 4 | |
| Maximum load/specified load | 6kg/2kg | |
| Maximum working radius | 600mm | |
| Repeatability | ±0.02mm | |
| Range of motion | J1 | ±132° |
| J2 | ±150° | |
| J3 | 0-200mm | |
| J4 | ±360° | |
| Rated speed | J1 | 225°/s,3.92rad/s |
| J2 | 360°/s,6.28rad/s | |
| J3 | 666mm/s | |
| J4 | 1200°/s,20.93rad/s | |
| Maximum speed | J1 | 375°/s,6.54rad/s |
| J2 | 600°/s,10.46rad/s | |
| J3 | 1111mm/s | |
| J4 | 2000°/s,34.88rad/s | |
| Allowable moment of inertia | J4 | 0.12kg㎡/0.01kg㎡ |
| Allowable torque | J4 | 4.23Nm |
| Applicable environment | Temperature | 0～45° |
| Humidity | 20%～80% | |
| Other | Avoid contact with flammable, explosive or corrosive gases and liquids. Keep away from electronic noise sources (plasma). | |
| Cable Length of Instructor | Optional (if configured, the teach pendant cable length is 8 meters) | |
| Body-cabinet connection length | 3metre | |
| I/O parameter | Digital:32 inputs, 31 outputs (one for control cabinet fault indicator output) | |
| Battery capacity | 0.8kVA | |
| Rated power | 0.6kW | |
| Rated voltage | AC220V/50Hz | |
| Rated current | 3.2A | |
| protection grade | IP54 | |
| Installation method | Ground installation,desktop installation | |
| Body weight | 21kg | |
| Control cabinet protection grade | IP53 | |
| Control cabinet size | 500(wide)×270(thick)×530(high)-can stand | |
| Control cabinet weight | 38KG | |
Applications:
SCARA working on placing disorderly products in good order
SCARA working on glue dispensing
SCARA working on welding
Customization:
CLX Robotic Automation Integration Customization Service as following
SCARA working with machine vision system
SCARA working in suspension installtion
SCARA working with flexibile vibrator
Brand Name: CLX
Model Number: N/A
Place of Origin: China
User-Friendly: Easy To Use And Requires Minimal Training
Compatibility: Works With Various Systems And Applications
Intelligence: Uses AI And Machine Learning For Intelligent Decision Making
Cost-Effective: Saves Time And Resources, Leading To Cost Savings
Function: Automate Repetitive And Rule-based Tasks
Our CLX Robotic Automation Integration offers customized services to meet your specific needs and requirements. With our expertise and experience in Automation Fixtures, Industrial Automation Machinery, and Automation Assembly Line, we can provide the perfect solution for your business.
Our user-friendly system is easy to use and requires minimal training, ensuring a smooth integration process. It is also compatible with various systems and applications, making it adaptable to your existing infrastructure.
Our CLX Robotic Automation Integration is intelligent, utilizing AI and machine learning to make intelligent decisions and improve efficiency. This not only saves time but also reduces the risk of human error.
By automating repetitive and rule-based tasks, our service helps to increase productivity and reduce labor costs, making it a cost-effective solution for your business.
Experience the benefits of our CLX Robotic Automation Integration and take your business to the next level. Contact us now to learn more about our customization services.
Packing and Shipping:
Robotic Automation Integration Packaging and Shipping
Thank you for purchasing our Robotic Automation Integration product. In order to ensure the safe and timely delivery of your purchase, please read the following packaging and shipping instructions:
- Our product will be packaged in a sturdy box with sufficient padding to protect it during transit.
- Once your order has been processed, you will receive a notification email with the tracking number.
- Please keep the packaging materials in case you need to return or exchange the product.
- We offer free standard shipping within the United States. For international orders, additional shipping charges may apply.
- For any inquiries or concerns regarding the packaging or shipping of your order, please contact our customer service team.
Thank you for choosing our Robotic Automation Integration product. We hope it will bring efficiency and convenience to your daily tasks.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is CLX.
- Q: What is the model number of this product?
- A: The model number of this product is N/A.
- Q: Where is this product made?
- A: This product is made in China.
- Q: Can this product be integrated with other robotic systems?
- A: Yes, this product is designed for easy integration with other robotic systems.
- Q: What is the main function of this product?
- A: The main function of this product is to automate various tasks and processes.
- Q: Is this product suitable for small businesses?
- A: Yes, this product is suitable for small businesses as well as larger enterprises.
