Steel Industrial Electrical Spare Parts Helical Gear Planetary Reducer ALE Series

Place of Origin China
Brand Name CLX
Certification N/A
Model Number ALE070, ALE090

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name ALE Series Helical Gear Reducer Materials All Metal Structure With Aluminium Alloy And Steel
Application Industrial Electrical Equipment Gearing Arrangement Helical Gear Reducer
High Light

Industrial Electrical Spare Parts


Steel Industrial Electrical Spare Parts


Planetary Reducer ALE Series

Leave a Message
Product Description

Helical Gear Planetary Reducer ALE Series Matching Servo Motor For Various Applications

Product Description:

Reducer is an independent component composed of gear transmission, worm transmission, and gear worm transmission enclosed in a rigid shell, usually used as a reduction transmission device between the original transmission and the working machine.


Gearboxes are typically used for low-speed and high torque transmission equipment. By meshing a small number of teeth on the input shaft of the gearbox with the large gears on the output shaft, the power of electric motors, internal combustion engines, or other high-speed operations can be reduced. A regular gearbox also has several pairs of gears with the same principle to achieve the desired deceleration effect. The ratio of the number of teeth between the large gear and the small gear is the transmission ratio.


Straight Gear Planetary Reducer ZPT Series matching different brands Motor for Chinese and Overseas Manufacturer 0

Gear reducers have the characteristics of small volume and large torque transmission. The gear reducer is designed and manufactured based on a modular combination system, with a wide range of motor combinations, installation forms, and structural schemes. The transmission ratio is finely graded to meet different operating conditions and achieve electromechanical integration. The gear reducer has high transmission efficiency, low energy consumption, and superior performance.



1. Adopt straight tooth gear transmission, through carburizing and quenching treatment,tooth profile modification treatment, ensure smooth operation, low noise;

2. Simple structure, mass production, and fast delivery time and high cost performance;

3. Reducer has a complete range, which can meet the needs of most reducer in the market

Technical Parameters:

Helical gear Unit ALE070 ALE090 Ratio Stage
Rated output Torque N.m 18 50 3 1
27 75 4
27 75 5
27 75 7
18 50 10
Emergency Stop torque N.m 3 times rated output torque
Norminal input speed r/m 3000 3000
Max input speed r/m 6000 6000
Max radial force N 1200 2400
Max axial force N 1100 2200
Efficiency % Single(97%)
Average Lifetime h 20000
Weight kg 1.4 3.7   1
Moment of inertia kgcm2 0.16 0.61 3 1
0.14 0.48 4
0.13 0.47 5
0.13 0.47 7
0.13 0.44 10
Backlash arcimin ≦5 ≦5 Standard
Torsional Rigidity N.M/arcmin 7 14
Noise dB 60 62
Lubricating   Synthetic grease lubrication
Levels of protection   IP65

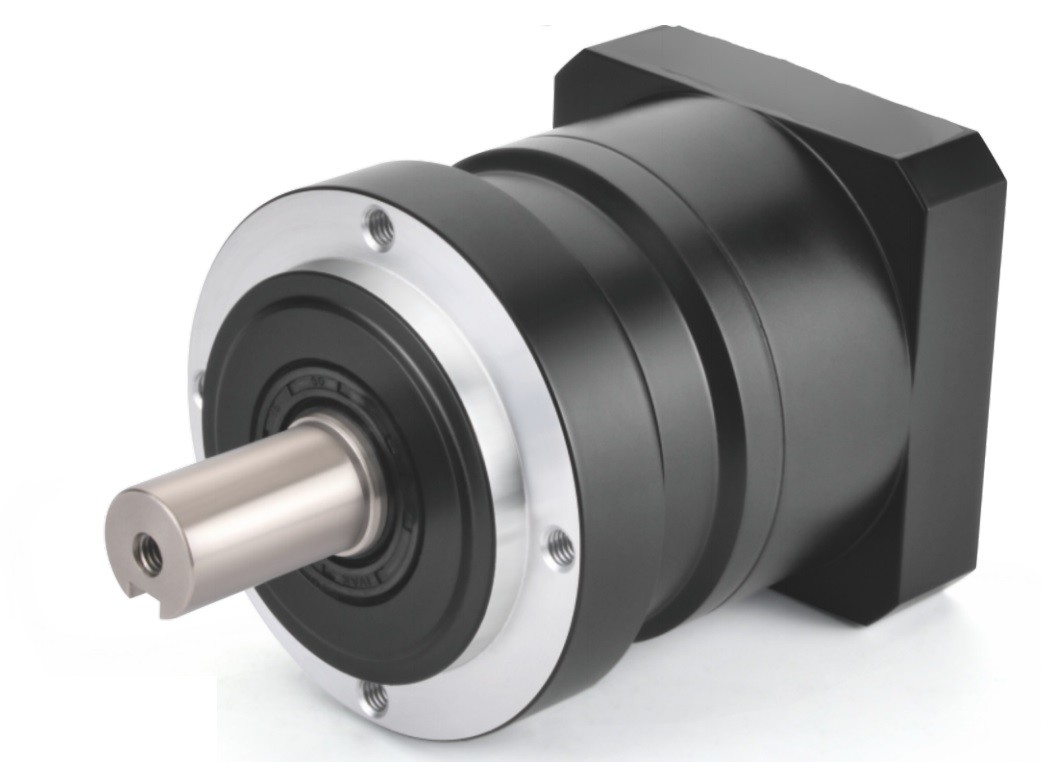

Steel Industrial Electrical Spare Parts Helical Gear Planetary Reducer ALE Series 1
