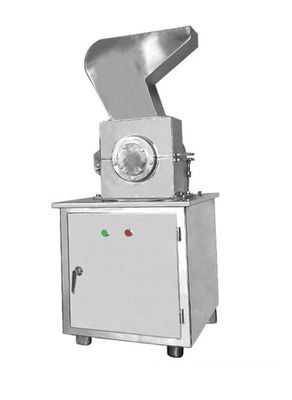

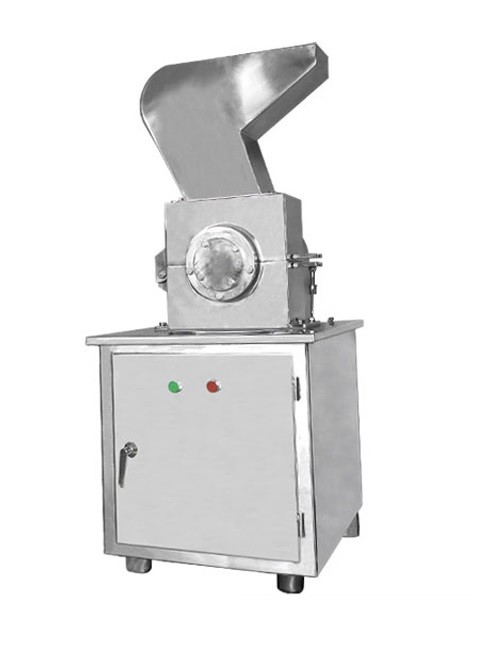

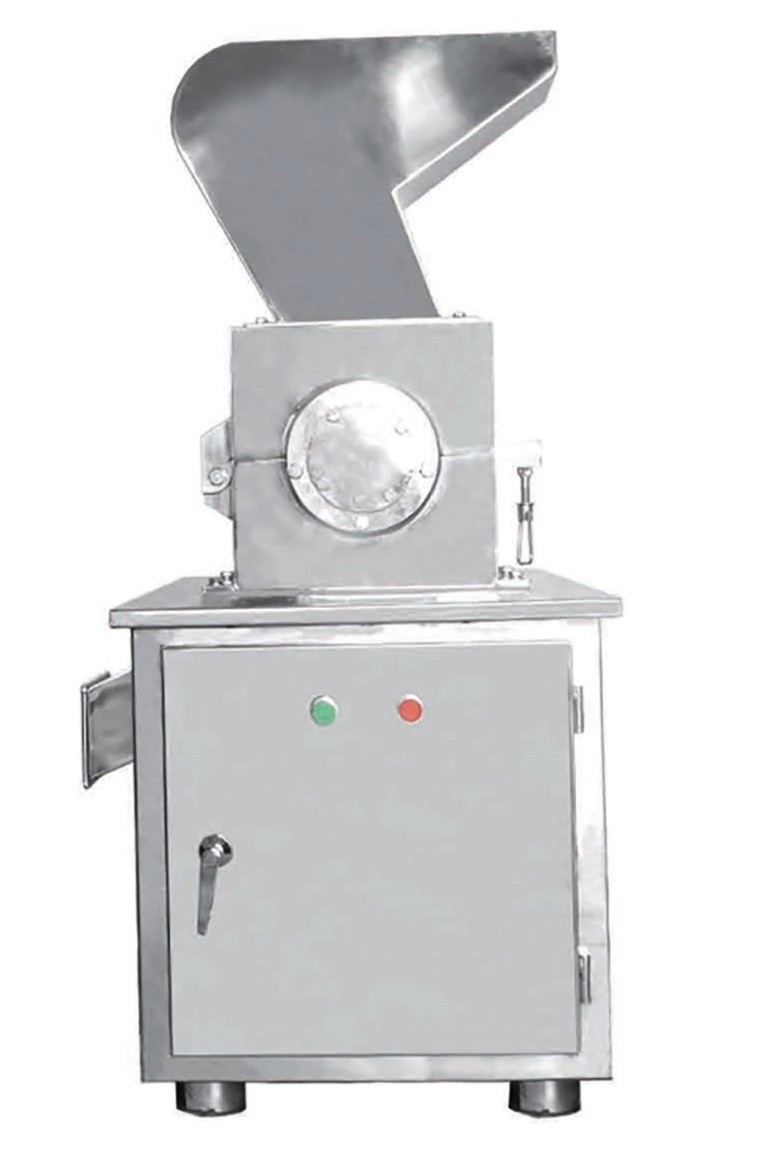

Chinese Tradional Medicine Coarse Crushing Machine For Hard Roots Bundled Grasses

  • Chinese Tradional Medicine Coarse Crushing Machine For Hard Roots Bundled Grasses
  • Chinese Tradional Medicine Coarse Crushing Machine For Hard Roots Bundled Grasses
Place of Origin China
Brand Name CLX
Certification N/A
Model Number CSJ-100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Coarse Crushing Machine Pulverizer Usage Used On Irregualr Shape Products Like Roots, Bundles Grass Etc
Power Supply AC 380V, 50Hz, 3 Phase
High Light

Hard Roots Bundled Grasses Crushing Machine

,

Medicine Coarse Crushing Machine

,

Bundled Grasses Crusher Machine
Leave a Message
Product Description

Product Description:


CLX CSJ Series Crushing machine pulverizeer chamber adopts high-strength integral case steel design, stron imact resitance, special cutting tools, intensity is three times higher than simialr products, easy to clean, convenient replacement screen, inlet increase protective device, high safety.

It is suitable for the processing of medicine, chemical industry, food and feed indsutry etc.

This machine is espcially suitable for coarse crushing and cutting off the hard and difficult crushing materials like the traditonal chinese medicine, such as the hard roots, bundled grasses, rattan,rhizomes, ore, fruit shells, starch, strong fibers, fluffy animal shells and other materials.




Product Features
Chinese Tradional Medicine Coarse Crushing Machine For Hard Roots Bundled Grasses 0
Model CSJ-100 CSJ-200 CSJ-300 CSJ-400
Production Capacity 20-100Kg/h 100-200Kg/h 200-400Kg/h 200-500Kg/h
Inlet Dimension (mm) 80 100 130 200
Outlet Dimension(mm) 5-25
Power Supply AC 380V/50Hz, 3 Phase
Motor Power Rate(Kw) 2.2 4.0 5.5 7.5
Fixed Blade Qty 2 2 4 4
Rotary Blade Qty 3 6 9 12
Machine Dimension (mm) 600*650*1300 650*650*1300 750*650*1350 850*650*1450
Machine Weight (Kg) 95 130 180 260
Pack Information Export Standard plywood case pack, 1pc/carton
