Automatic Bubble Cleaning Machine For Potato Carrot Taro Cassava After Peeling Or Polishing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Name | Automatic Bubble Cleaning Machine | Usage | Used On Vegetable Washing After Peeling Or Polishing |
---|---|---|---|
Power Supply | AC380V, 50Hz, 3 Phase | Power Rate | 4.75Kw |
Washing Type | Bubble Washing | Washing Capacity | 2000-2500Kg/h |
Product Dimension | 5000x1210x1400 | ||
High Light | Automatic Bubble Cleaning Machine,Potato Bubble Cleaning Machine,Cassava Bubble Washing Machine |
Product Description

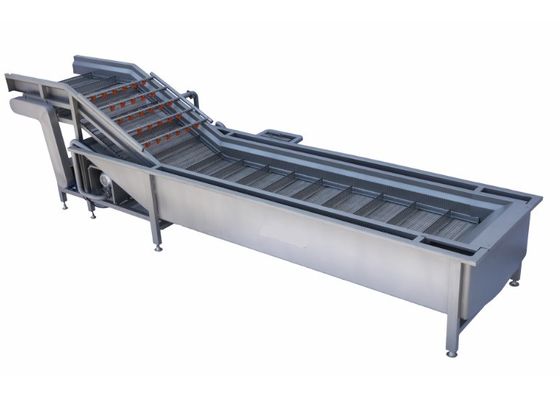

Automatic Bubble cleaning machine for potato, carrot, taro, cassava after peeling or polishing
Product Description:
Bubble cleaning machine mainly uses the water in the tank of the equipment box to form a circulation through a high-pressure water pump, there is a conveyor belt or chain plate driven by a conveying motor inside the box.
When the raw materials pass through the tank, the vortex fan inputs air into the bottom of the box water tank to form bubbles, which drive the water flow to flip and drive the raw materials to roll. After cleaning, the conveying device lifts the raw materials out of the box water tank.
Product Features
* Whole machine made of SS#304 except for the motors and electrical parts;
* With bubble generater, to make all product soaking in water, and completely cleaning;
* With bubble generater, to make all product soaking in water, and completely cleaning;
* With quick disassembly and assembly style guardrail;
* With manual handle on both sides of electrical cabinet, for easy clean and maintenance;
Product Name | Bubble Cleaning Machine |
Machine Frame | Whole machine made of SS#304, for food grade |
Working type | With bubble generator, for recycled washing in tank |
Conveyor Belt | With SS#304 mesh belt, to avoid damaging on products |
Drive type | With motor and reducer drive |
Capacity(Kg/h) | 2000-2500 |
Power Supply | AC 380V/50Hz, 3 Phase |
Power Rate | 4.75Kw |
Machine Dimension(mm) | 5000x1210x1400 Or customized at 6000mm or 7000mm length |
