Automatic Vertical Packaging Machine With Degas Valve For Coffee Bean In Quadro Bags

  • Automatic Vertical Packaging Machine With Degas Valve For Coffee Bean In Quadro Bags
  • Automatic Vertical Packaging Machine With Degas Valve For Coffee Bean In Quadro Bags
  • Automatic Vertical Packaging Machine With Degas Valve For Coffee Bean In Quadro Bags
  • Automatic Vertical Packaging Machine With Degas Valve For Coffee Bean In Quadro Bags
Place of Origin China
Brand Name CLX
Certification CE
Model Number CLX-VQ520
Minimum Order Quantity 1
Price 35000
Packaging Details Export standard carton pack, 1 pc/ carton
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram, Cash

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model # CLX-VQ520 Material Whole Machine Made Of SS#304, For Food Grade
Control Unit PLC Control System, With Touch Screen Operation Suitable For Bags Quadro Bag With Composited Film
Bag Materials Composited Film Like Film PET/aluminum/PET, PET/aluminum/BOPP Etc, Film Thickness 0.09-0.12mm; Bag Length 100-350mm
Bag Width 70-200mm Side Gusset Width 40-100mm
Packaging Speed 20-50 Bags/min, The Packaging Speed Is Determined By Your Product Characteristics And Weighing Speed Power Supply AC220V, 50Hz, 2.2kw
Air Consumption 500L/min, 0.8Mpa, Not Incuding Air Compressor
High Light

Vertical Packaging Machine With Degas Valve

,

Quadro Bags Vertical Packaging Machine

,

Coffee Bean Automatic Vertical Packaging Machine
You can tick the products you need and communicate with us in the message board.
7 days delivery
Leave a Message
Product Description



Quadro bag type is widely used on coffee packaging, like coffee bean, coffee powder, ground coffee, and also some snacks packaging. Now quadro bag is very popular because of its good apperance.

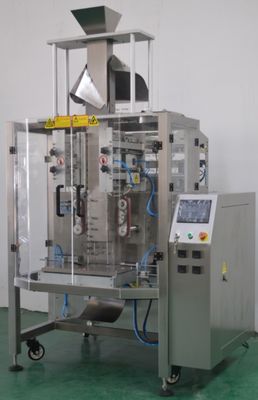

Automatic Vertical Packaging Machine With Degas Valve For Coffee Bean In Quadro Bags 0

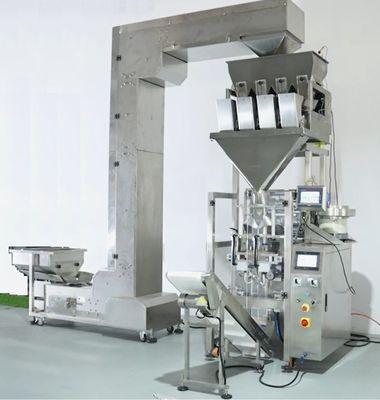

Automatic Vertical Packaging Machine With Degas Valve For Coffee Bean In Quadro Bags 1



Meanwhile, in order to have a better perfomance on quadro bag forming, we suggest the packaging film with aluminum foil, and the composited film thickness at least 0.08mm.

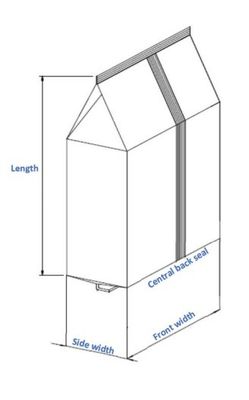

Automatic Vertical Packaging Machine With Degas Valve For Coffee Bean In Quadro Bags 2

FEATURE

* Whole machine with mechnical transmission, with stable performance, simple maintenance with low failure rate;

* Customized for quadro bag type, with steady working;

* Worktable waterproof function.

* It is easy to track the machine faults on touch screen visual display, for quick trouble shooting;

* Sanitary standards for machine structure, and easy to clean;

* Adopting advanced technology, user-friendly design, touch screen control system, simple and convenient;

* Excellent electrical and pneumatic components ensure stable machine operation and achieve efficient and low failure mass production.

Technical Parameters:

                                    Automatic Packaging machine for Quadro Bags

Model No CLX-VQ520
Control System PLC Control system, with touch screen operations, English display
Bag type Customized with quadro bag former, for quadro bags
Film With composited film with aluminum foil, film thickness more than 0.08mm;
Working Principle Pillow bag packaging machine with quadro bag former
Bag Length 100-350mm
Front Width 70-200mm
Side Width 40-100mm
Target Weight 100-1000g, the target weight is determined by your product characterics
Packaging Speed 20-50 bags/min, the packaging speed is determined by your product characteris, weighing speed etc;
Power Supply AC220V / 50Hz, 2.2kw
Air Consumption 0.8Mpa, 0.5m3/min; not including air compressor



Key parts list

Item Parts Name Country Brand
1 HMI Touch screen China, TAIWAN WEINVIEW
2 PLC Controller Japan Mitsubishi
3 Servo Motor and Driver China, SHENZHEN INOVANCE
4 Color Sensor China, SHANGHAI AISET
5 Temperature controller China, SHANGHAI AISET
6 Horizontal sealing cylinder China, TAIWAN AIRTEC
7 Vertical sealing cylinder with guide rod China, TAIWAN AIRTEC
8 Thin cylinder for Cutting blade China, TAIWAN AIRTEC
9 Stretching film Cylinder China, TAIWAN AIRTEC
10 dyad China, TAIWAN AIRTEC
11 Pressure valve with pressure gauge China, TAIWAN AIRTEC
12 Electromagnetic valve with plate China, TAIWAN AIRTEC
13 Inflation solenoid valve China, TAIWAN AIRTEC
14 Ribbon coding device China, ZHEJIANG Dingsheng
15 Solid state relay China, TAIWAN FOTEK
16 Intermediate relay Germany WEIDMUELLER
17 Power Supply China, TAIWAN MEANWELL





Degas Valve Device

* One-way degas valve is a necessary parts to keep coffee bean fresh, to avoid the coffee gone taste.

* Whole set of degas valve feeding and assemble device, detail as following:

   Automatic Vertical Packaging Machine With Degas Valve For Coffee Bean In Quadro Bags 3

* We can also supply such degas valve if the buyer have such request;
