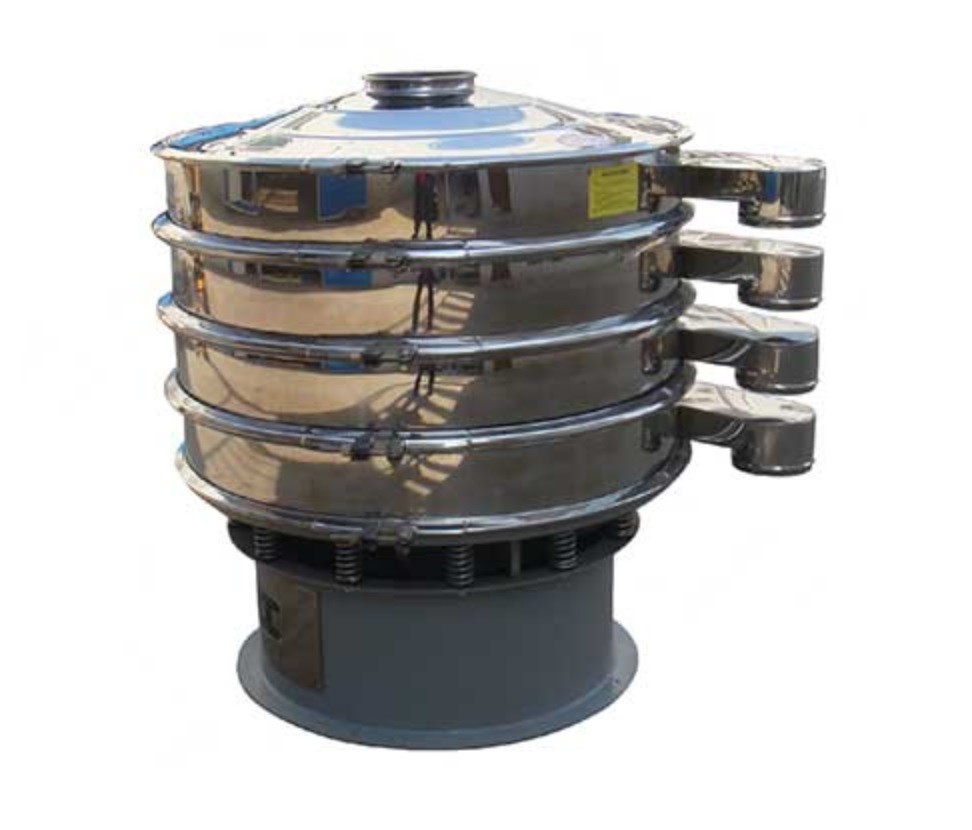

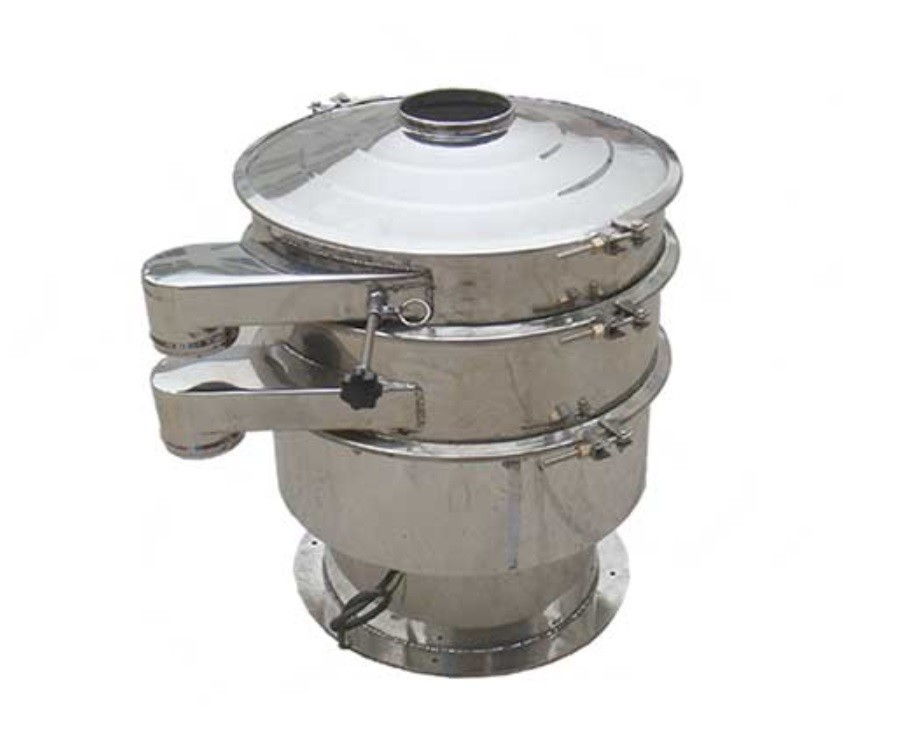

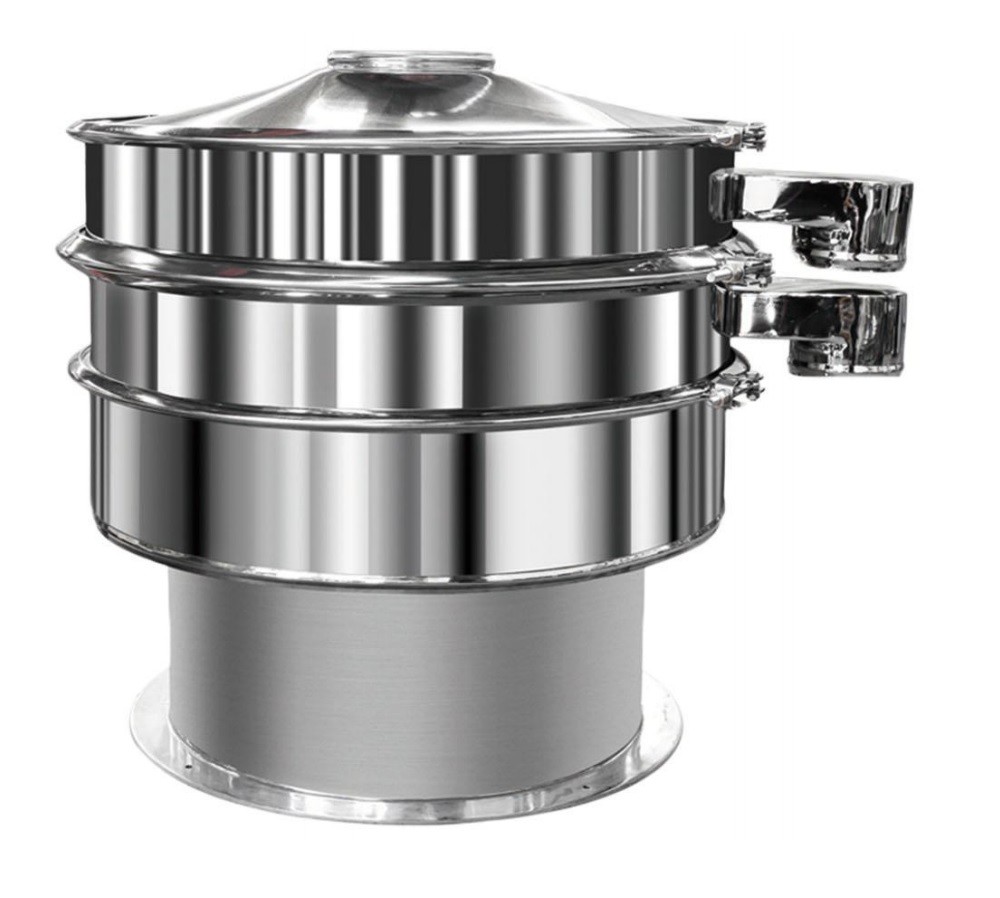

Rotary Vibro Screen Machine Plastic Particles Chemical Packaging Machine AC220V 50Hz
| Place of Origin | China |
|---|---|
| Brand Name | CLX |
| Certification | N/A |
| Model Number | CLX-RVS-1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Structure | Whole Machine Made Of SS#304, Or SS#316 For Special Request | Applications | For Chemicals, Medicines, Food Or Materials Metallurgy Etc |
|---|---|---|---|
| Machine Diameter | 1000mm, Or Customized As Special Request | Vibration Motor | Vertical Upright Installed |
| Rotary Control | With Two Sets Of Off-central Heavy Hammers | Motion Direction | 3 Directions Available, Like Horizontal, Vertical And Inclined |
| Screening Plate | With Customized Screening Plate | Screening Standard | Max 4 Times Screening, For 5 Grades |
| Special Use | Separate Water From Powder | Screening Layer | Customized 1-3 Layers |
| Power Supply | AC 220V/50Hz | Pack Type | Export Standard Plywood Case Pack, 1pc/carton |
| High Light | Rotary Vibro Screen Machine,Vibrating Screen Chemical Packaging Machine,Rotary Chemical Packaging Machine |
||
Product Description
Extremely Excellent Rotary Vibration Screening Machine Used On Chemical Plastic Particles Before Injection Molding
Rotary vibrating screen is a kind of fine powder vibrating screening machine, which is based on the principle of providing an excitation source by an upright motor. The upper and lower ends of the motor are equipped with eccentric weights, which change the rotational motion of the motor into horizontal, vertical, and inclined three-dimensional motion, and then provide this motion to the screen surface.
Adjusting the phase angle between the upper and lower ends can change the movement trajectory of materials on the screen surface and the screening speed of plastics. Due to its vibration operation principle, many enterprises also refer to it as a "three-dimensional vibration screening filter"
According to its external structure, it is referred to as a circular screen by some customers. It is divided into standard rotary vibrating screens and ordinary rotary vibrating screens in terms of material. The standard type part in contact with the material is made of 304 stainless steel, the base is made of carbon steel, and the ordinary type is made of ordinary carbon steel. Support special treatments such as stainless steel wire drawing, sandblasting, and PTFE spraying.
FEATURE
Technical Parameters:
| Model | CLX-RVS-1000 | |||||||
| Type | Automatic Rotary Screening machine diameter 1000mm | |||||||
| Diameter | 1000mm, or customized as special request | |||||||
| Applications | For chemicals, medicines etc | |||||||
| Vibration control | With vertical vibration motor | |||||||
| Horizontal control | two sets of off-central heavy hammers | |||||||
| Motion direction | Vertical, horziontal and inclined, 3 kinds | |||||||
Applications:
