AC 220V Plastic Particles Chemical Packaging Machine Swinging Screening Machine

Place of Origin China
Brand Name CLX
Certification N/A
Model Number CLX-YBS-1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Machine Structure Whole Machine Made Of SS#304, Or SS#316 For Special Request Applications For Chemicals, Medicines, Food Or Materials Metallurgy Etc
Machine Diameter 1000mm, Or Customized As Special Request Vibration Motor With High Quality Copper Motor
Rotary Control With Two Sets Of Off-central Heavy Hammers Motion Direction 3 Directions Available, Like Horizontal, Vertical And Inclined
Screening Plate With Customized Screening Plate Screening Standard Max 4 Times Screening, For 5 Grades
Special Use Separate Water From Powder Screening Layer Customized 1-3 Layers
Power Supply AC 220V/50Hz Pack Type Export Standard Plywood Case Pack, 1pc/carton
High Light

Plastic Particles Chemical Packaging Machine


220V Chemical Packaging Machine


Plastic Particles Swinging Screening Machine

Leave a Message
Product Description

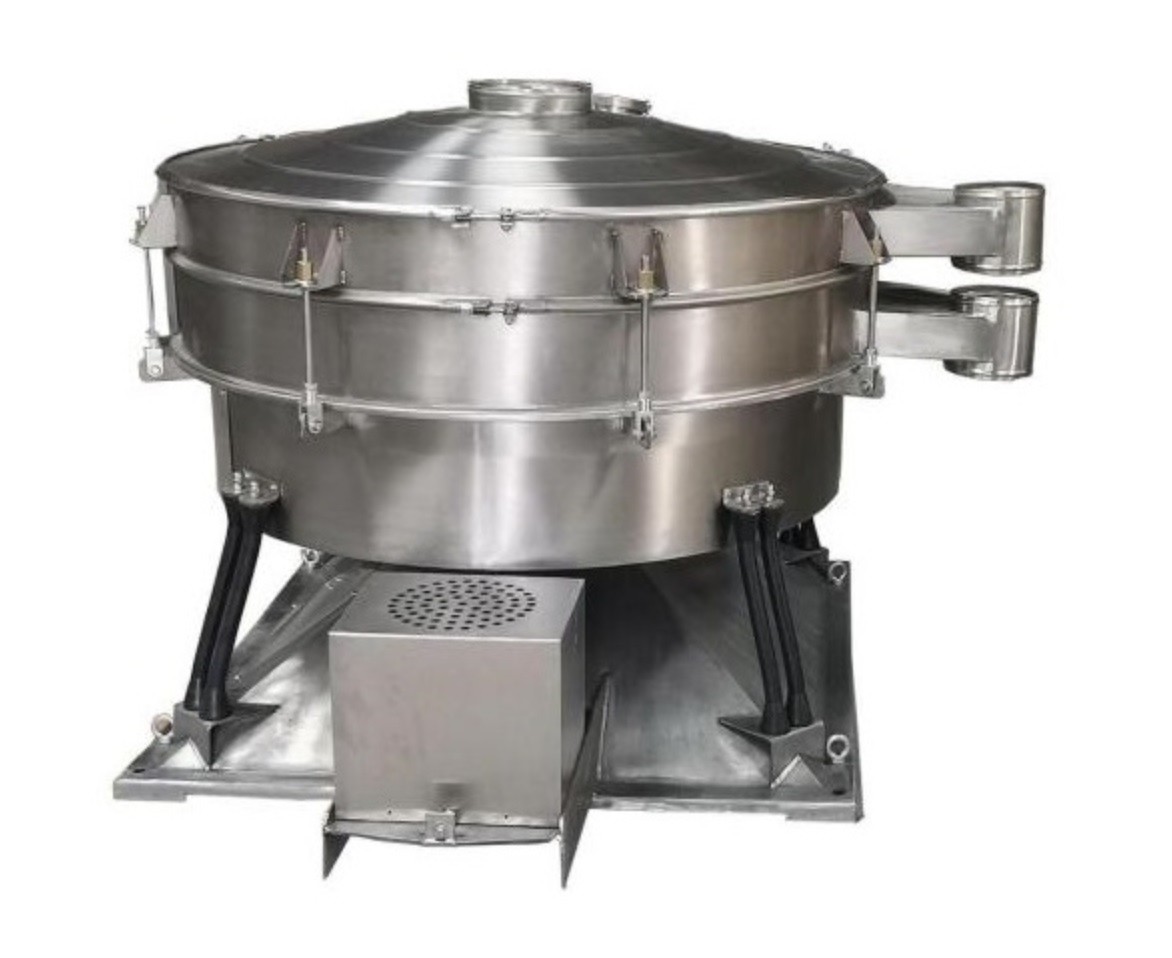

Extremely Excellent Swinging Screening Machine Used On Chemical Plastic Particles Before Injection Molding



Rotary vibrating screen is a kind of fine powder vibrating screening machine, which is based on the principle of providing an excitation source by an upright motor. The upper and lower ends of the motor are equipped with eccentric weights, which change the rotational motion of the motor into horizontal, vertical, and inclined three-dimensional motion, and then provide this motion to the screen surface.


Adjusting the phase angle between the upper and lower ends can change the movement trajectory of materials on the screen surface and the screening speed of plastics. Due to its vibration operation principle, many enterprises also refer to it as a "three-dimensional vibration screening filter"


According to its external structure, it is referred to as a circular screen by some customers. It is divided into standard rotary vibrating screens and ordinary rotary vibrating screens in terms of material. The standard type part in contact with the material is made of 304 stainless steel, the base is made of carbon steel, and the ordinary type is made of ordinary carbon steel. Support special treatments such as stainless steel wire drawing, sandblasting, and PTFE spraying.



AC 220V Plastic Particles Chemical Packaging Machine Swinging Screening Machine 0

AC 220V Plastic Particles Chemical Packaging Machine Swinging Screening Machine 1

Technical Parameters:

Model CLX-RVS-1000
Type  Automatic Rotary Screening machine diameter 1000mm
Diameter  1000mm, or customized as special request
Applications  For chemicals, medicines etc
Vibration control  With vertical vibration motor
Horizontal control  two sets of off-central heavy hammers
Motion direction  Vertical, horziontal and inclined, 3 kinds




AC 220V Plastic Particles Chemical Packaging Machine Swinging Screening Machine 2
