High Speed XYZ Motion Platform For Automatic Screw Locking Robot
| Place of Origin | China |
|---|---|
| Brand Name | CLX |
| Certification | N/A |
| Model Number | CLX-LS5331 |
| Minimum Order Quantity | 1 |
| Price | 5500 |
| Packaging Details | Export Standard Plywood case pack, 1pcs/carton |
| Payment Terms | D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 pcs/monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Whole Machine Frame Made Of Aluminum Alloy | Product Dimension | 720*580*640mm |
|---|---|---|---|
| X-Axis Travel length | 500mm | Y1/Y2 - Axis Travel length | 300mm |
| Z-Axis Travel length | 100mm | Working Position | Double Y Axis, Two Working Platforms, Y1 And Y2 Working Alternative |
| Positioning Accuracy | ±0.02mm | Repeat motion accuracy | ±0.01mm |
| Load Capacity | X-Axis & Z- Axis, 8kg, Y-Axis 15kg | Drive Modes | Precious Step Motor + Timing Belt, Or Upgrade To Precious Motor + Screw Driving |
| Control System | Professional Screwing Machine Control System, With Handle Controller Operation | Operation Speed | Adjustable At 1-800mm/s |
| Screw feeding method 1 | Air Blow Feeding, Screw Length > 1.5 Diameter | Screw feeding method 2 | Absorb Feeding, Screw Length 2-25mm; |
| Screw feeding method 3 | Vibration Feeding, For Screw Above M4 | Screw type | Slotted Screw, Cross Screw, Machine Screw, Hexagon Screw Etc |
| Torque value | 0.1-30kgf.cm | Screwing speed | 1.2-2.0s/pc, The Screw Speed Is Determined By Many Factors; |
| Positioning and Fixture device | Need To Be Customized As Product; | Screw driver | Brushless DC Screw Driver, Air Screw Driver And Servo-motor Screw Driver Etc |
| Automatic Screwing detection function | Screw Slippage, Screw Locking Missing, And Screw Floating | Air Consumptions | 0.3-0.6Mpa |
| Power Supply | AC 220V, 50/60Hz | ||
| High Light | Automatic Screw Locking Robot Motion Platform,High Speed Robot Motion Platform,Screw Locking Robotic Integrated Automation |
||
Product Description

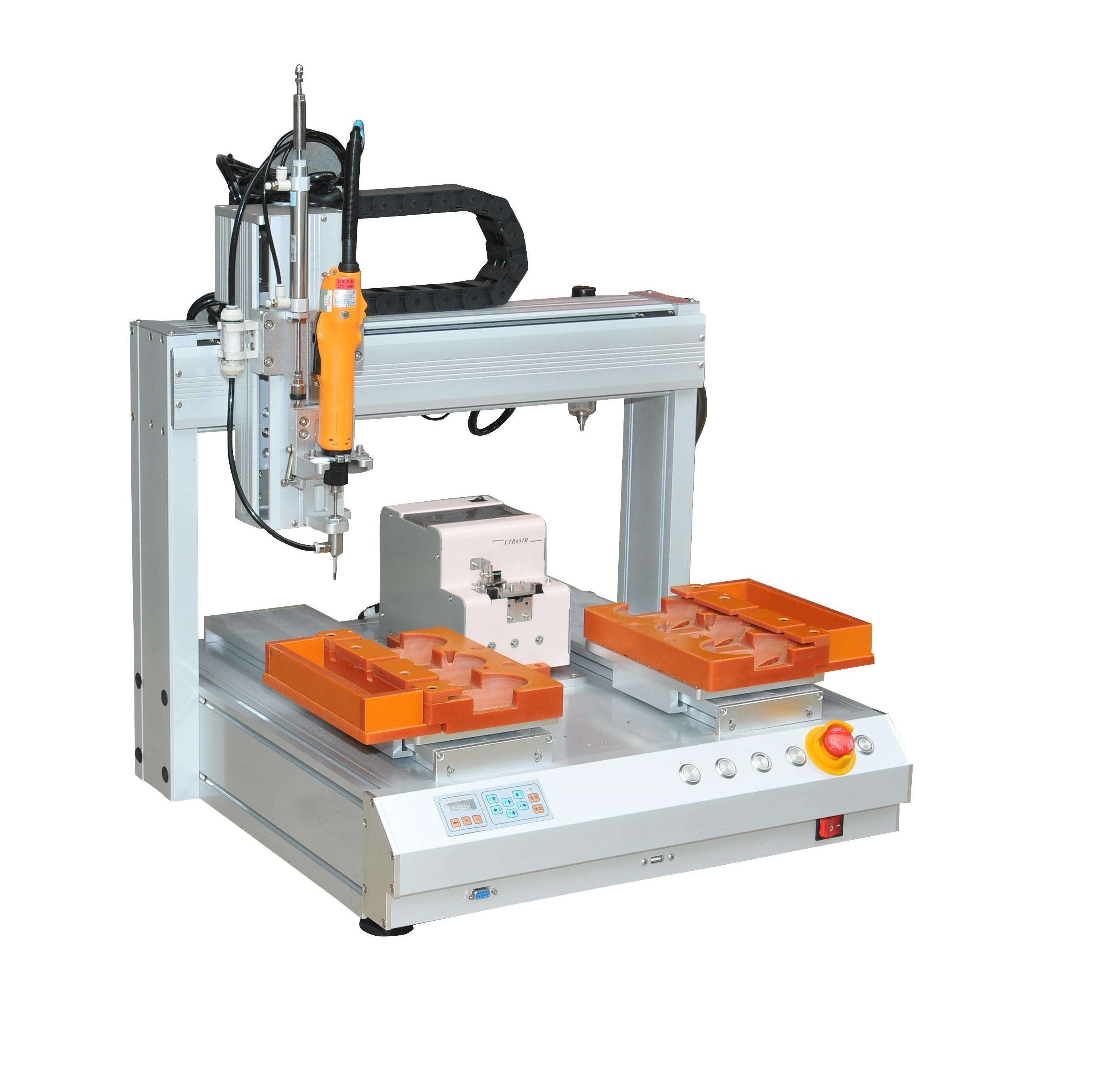

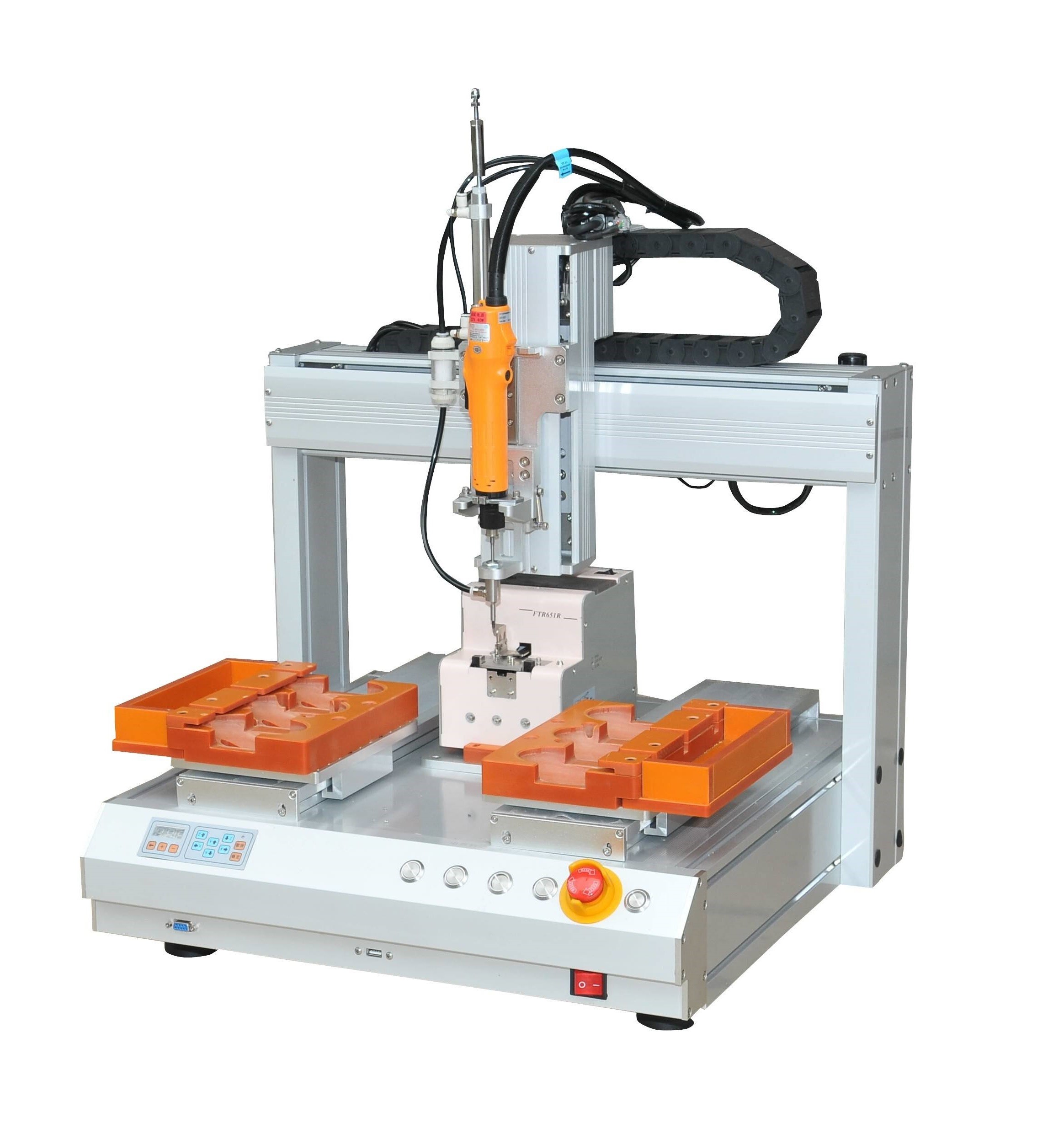

XYZ Motion Platform For Automatic Screw Locking Robot, High Speed At 1.2-2.0s/Pc Locking Screws
| Model # | DH-LS5331 |
| Materials | Whole machine frame made of aluminum alloy |
| Product Dimension | 720*580*640 |
| X-Axis Travel length | 500mm |
| Y1- Axis Travel length | 300mm |
| Y2- Axis Travel length | 300mm |
| Z-Axis Travel length | 100mm |
| Working Position | Double Y Axis, two working platforms, Y1 and Y2 working aleternative |
| Positioning Accuracy | ±0.02mm |
| Repeat motion accuracy | ±0.01mm |
| Load Capacity | X-Axis & Z- Axis, 8kg, Y-Axis 15kg |
| Drive Mode | Precious step motor + timing belt, or upgrade to precious motor + screw driving |
| Control System | Professional screwing machine control system, with handle controller operation |
| Operation Speed | Adjustable at 1-800mm/s |
| Screw feeding method | 1.Automatic air blow feeding screw, in condition screw length > 1.5 diameter; |
| 2.Automatic absorb feeding screw, in condition screw length 2-25mm; | |
| 3.Automatic vibration feeding screw, for screw above M4 | |
| Screw type | Slotted screw, Cross screw, Machine screw, Hexagon screw etc |
| Torque value | 0.1-30kgf.cm |
| Screwing speed | 0.7-2.0s/pc, the screw speed is determined by many factors; |
| Positioning and Fixture device | Need to be customized as product; |
| Screw driver | 1.Brushless DC screw driver |
| 2. Air Screw driver | |
| 3. Servo-motor screw driver | |
| Refer to photos, one or two piece screw driver can be used here | |
| Automatic Screwing detection function | 1. Detection of screw slippage; |
| 2. Detection of screw locking missing; | |
| 3. Detection of screw floating; | |
| Air Consumptions | 0.3-0.6Mpa |
| Power Supply | AC 220V, 50/60Hz |
