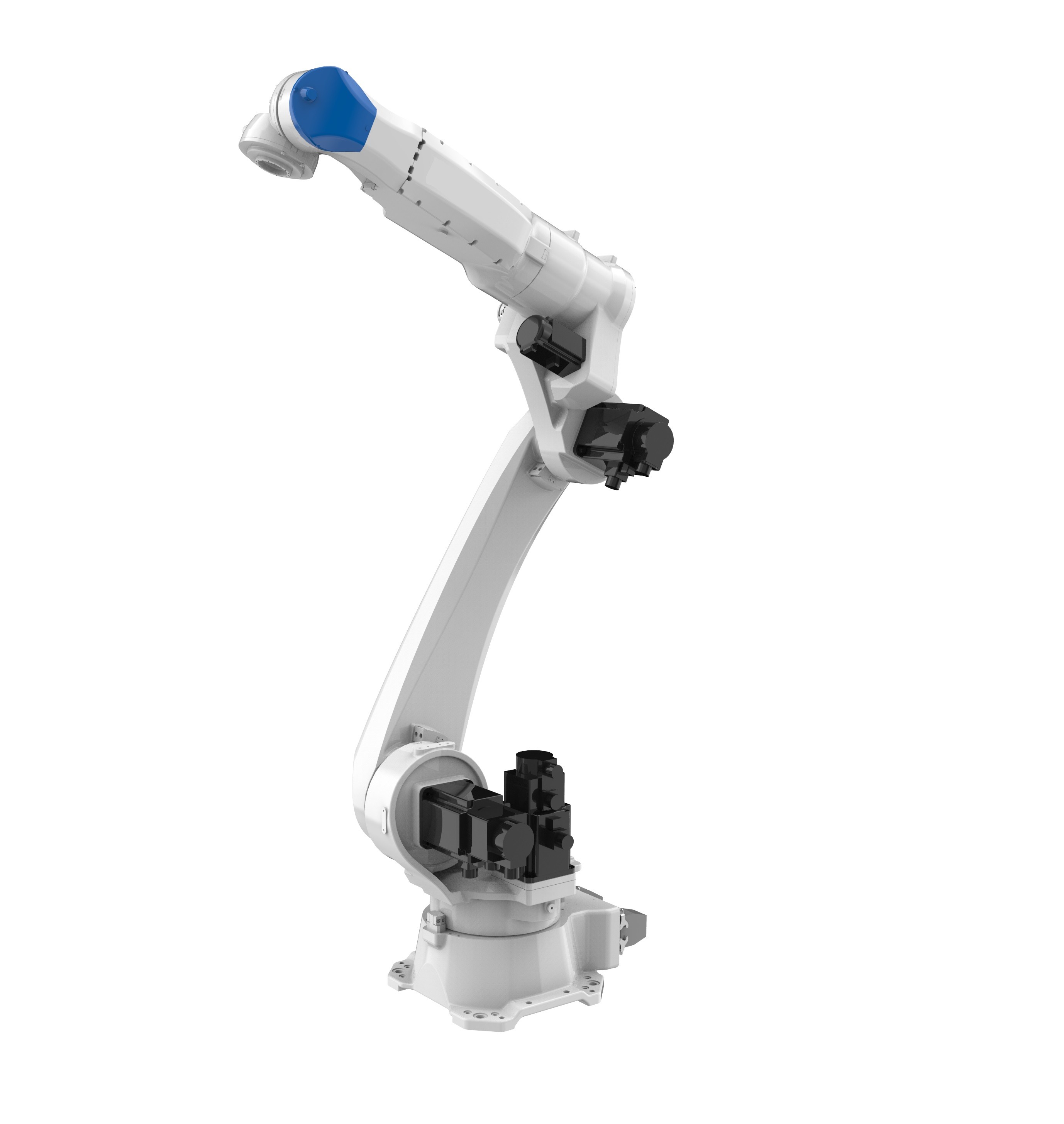

6 Axis Industrial Welding Robotic Automation Integration For Hardware Assembly Line

  • 6 Axis Industrial Welding Robotic Automation Integration For Hardware Assembly Line
Place of Origin China
Brand Name CLX
Certification CE
Model Number CLX-JH615
Minimum Order Quantity 1
Packaging Details Export Standard Plywood case pack, 1pcs/carton
Delivery Time 30 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50 sets/montly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product 6 Axis Industry Welding Robot With 15kg Load Model # CLX-JH615
Degree Of Freedom 6 Specified Load 15KG
Maximum Working Radius 2000mm Repeatability ±0.05mm
Work Temperature 0～45° Humidity 20%～80%
Working Surrounding Avoid Contact With Flammable, Explosive Or Corrosive Gases And Liquids. Keep Away From Electronic Noise Sources (plasma). Cable Length Of Instructor 8meter
Body-cabinet Connection Length 6meter I/O Parameters Digital Quantity: 31 Input, 30 Output
Battery Capacity 5.9kVA Rated Power 5.0kW
Rated Voltage AC380V, 3 Phase Rated Current 9.3A
Body Protection Grade IP54 Installation Method Ground Installation,Side Installation, Down Installation
Body Weight 295kg Control Cabinet Protection Grade IP53
Control Cabinet Size 765 (wide)x 460 (thick)x930 (high) Control Cabinet Weight 90KG
High Light

Hardware Assembly Line RoboticAutomation Integration

,

6 Axis Robotic Automation Integration

,

Industrial Robotic Automation Integration AC220V
Leave a Message
Product Description

Cost Effective 6 Axis Industry Use Welding Robot Max Load 15kg Automation Integration For Hardware Assembly Line



Product Description:

Robotic Automation Integration - Revolutionizing Business Operations

Robotic Automation Integration is a cutting-edge product that combines the power of automation with the precision of industrial robots to streamline business processes. Our product is designed to provide 24/7 availability, ensuring uninterrupted operations for your business. With the integration of automation fixtures and industrial robots, our product brings a new level of efficiency to your business, increasing productivity and reducing human error.

Our top priority is security, and our product is built to ensure data security and compliance. With Robotic Automation Integration, you can rest assured that your sensitive data is protected and your business is in compliance with industry regulations.

One of the most significant advantages of our product is its flexibility. We understand that every business has unique needs, and our product can be customized to fit those specific needs. With our Robotic Integration, you have the freedom to tailor the automation process to your business, making it a perfect fit for your operations.

Our product is designed to be user-friendly, requiring minimal training. We understand that not everyone is a tech expert, and that's why we have made our product easy to use. With just a few simple steps, you can set up and start using our Automation Solutions to simplify your business processes.

Robotic Automation Integration is a game-changer for businesses of all sizes and industries. By automating processes and integrating industrial robots, our product can handle tasks with precision and speed, freeing up time for your employees to focus on more critical tasks. This also leads to increased productivity and reduced costs for your business.

With Robotic Automation Integration, your business can take a giant leap towards success. Embrace the power of automation and industrial robots with our innovative product and experience the transformation it brings to your business operations. Say goodbye to downtime, human error, and manual labor, and say hello to efficiency, security, and flexibility. Upgrade your business with Robotic Automation Integration today!



Applications:

Industrial robot CLX-JH605
Degree of freedom 6
specified load 5Kg
Maximum working radius 1441mm
Repeatability ±0.06mm
Range of motion J1 ±150°
J2 -145°/+60°
J3 +30°/+270°
J4 ±120°
J5 -110°/+140°
J6 ±360°
Rated speed J1 2.58rad/s,148°/s
J2 2.58rad/s,148°/s
J3 2.58rad/s,148°/s
J4 3.93rad/s,225°/s
J5 3.93rad/s,225°/s
J6 3.93rad/s,225°/s
Maximum speed J1 3.87rad/s,222°/s
J2 3.87rad/s,222°/s
J3 3.87rad/s,222°/s
J4 5.89rad/s,337.5°/s
J5 5.89rad/s,337.5°/s
J6 5.89rad/s,337.5°/s
Allowable moment of inertia J6 0.035kgm2
J5 0.3 kgm2
J4 0.3 kgm2
Allowable torque J6 15 Nm
J5 35 Nm
J4 35 Nm
Applicable environment temperature 0～45°
humidity 20%～80%
other Avoid contact with flammable, explosive or corrosive gases and liquids. Keep away from electronic noise sources (plasma).
Cable Length of Instructor 8metre
Body-cabinet connection length 5metre
I/Oparameter Digital:32 inputs, 31 outputs (one for control cabinet fault indicator output)
Main body reserved signal wire None
Main body reserved air pipe None
battery capacity 2.5kVA
rated power 2kW
Rated voltage AC220V
Rated current 10.8A
Body protection grade IP50
Installation method Ground installation,Side installtion, down installtion
Body weight 196kg
Control cabinet protection grade IP50
Control cabinet size 640mm(wide)×460mm(thick)×620mm(high)-stand
Control cabinet weight 50KG





Robotic Automation Integration Application Scenarios

The CLX Robotic Automation Integration is a cutting-edge product that combines the power of collaborative robots and industrial automation machinery to streamline processes and improve efficiency. This innovative technology from China offers a cost-effective solution to various industries, providing them with a seamless integration of their robotic and automation systems. With its advanced features, the CLX is the perfect solution for data management, quality control, and overall process optimization.

The Perfect Solution for Collaborative Robot Integration

Collaborative robots, or cobots, have become increasingly popular in the manufacturing industry due to their ability to work alongside humans safely. However, integrating these robots with existing industrial automation systems can be a complex and time-consuming process. The CLX eliminates this challenge by providing a user-friendly and efficient solution for collaborative robot integration.

With the CLX, businesses can easily integrate their cobots with their current automation machinery, enabling them to work together seamlessly. This not only saves time and resources but also reduces the risk of human error, leading to improved efficiency and productivity.

Enhancing Data Management for Improved Quality Control

Data management is crucial in any manufacturing process, and the CLX helps businesses achieve this with ease. By integrating collaborative robots with industrial automation machinery, the CLX collects and manages data in real-time, providing businesses with accurate and up-to-date information.

This data can be used to monitor and control the quality of products throughout the production process, ensuring high accuracy and consistency. The CLX also maintains a detailed audit trail, which is essential for compliance purposes, giving businesses peace of mind and ensuring data security.

Cost-Effective Solution for Increased Efficiency

The CLX offers a cost-effective solution for businesses looking to improve efficiency and reduce costs. By streamlining processes and reducing the need for manual labor, the CLX leads to significant cost savings for businesses. It also eliminates the need for expensive reprogramming or modifications to existing automation systems, making it an affordable option for businesses of all sizes.

Furthermore, the CLX increases productivity by reducing downtime and increasing the speed of production. This, in turn, leads to faster turnaround times and improved customer satisfaction.

Perfect for Various Industries

The CLX is suitable for a wide range of industries, including automotive, electronics, pharmaceuticals, and more. Its versatility and adaptability make it an ideal solution for any business looking to improve their automation processes.

Whether it's for small-scale production or large-scale manufacturing, the CLX offers a customizable and tailored solution that meets the specific needs of each industry.

Conclusion

The CLX Robotic Automation Integration is a game-changing product that offers a cost-effective, secure, and efficient solution for businesses looking to improve their automation processes. With its ability to seamlessly integrate collaborative robots with existing industrial automation machinery, the CLX is the perfect solution for data management, quality control, and overall process optimization. Its versatility and adaptability make it suitable for various industries, making it a must-have for any business looking to stay ahead in today's highly competitive market.



Customization:

CLX Robotic Automation Integration Customization Services

Brand Name: CLX

Model Number: N/A

Place of Origin: China

Real-Time Monitoring: Provides real-time monitoring and reporting to ensure efficient and accurate operations.

Compatibility: Our robotic automation integration works seamlessly with various systems and applications for maximum flexibility.

Efficiency: By automating repetitive and rule-based tasks, our services significantly increase productivity and reduce the risk of human error.

Function: Our automation assembly line streamlines processes and eliminates manual labor, freeing up your team to focus on more important tasks.

Audit Trail: Our services maintain a detailed audit trail for compliance purposes, ensuring transparency and accountability in all operations.



Packing and Shipping:

Packaging and Shipping

Robotic Automation Integration is carefully packaged and shipped to ensure safe delivery to our customers. Here's how we package and ship our product:

Packaging Process

First, the components of Robotic Automation Integration are individually wrapped and secured with protective materials to prevent damage during transit. Once all components are safely packaged, they are placed in a sturdy cardboard box.

Next, the box is sealed with high-quality tape to ensure that the contents do not shift during shipping. Our team also includes a packing slip inside the box, which lists all the contents and their corresponding quantities.

Shipping Options

We offer a variety of shipping options to meet our customers' needs. These options include standard ground shipping, expedited shipping, and international shipping.

We work with trusted shipping carriers to ensure timely and efficient delivery. Our team also monitors the shipment's progress to provide updates to our customers.

Delivery Time

The delivery time for Robotic Automation Integration varies depending on the shipping option selected by the customer. Standard ground shipping typically takes 3-5 business days, while expedited shipping can arrive within 1-2 business days. International shipping may take longer due to customs processes.

Once the package is shipped, customers will receive a tracking number via email to track their order's progress.

Thank you for choosing Robotic Automation Integration. We are committed to providing high-quality products and ensuring their safe delivery to our customers. If you have any questions or concerns about our packaging and shipping process, please don't hesitate to contact us.



FAQ:

  • Q: What is the brand name of this product? A: The brand name of this product is CLX.
  • Q: Does this product have a model number? A: No, this product does not have a model number. It is commonly referred to as Robotic Automation Integration.
  • Q: Where is this product manufactured? A: This product is manufactured in China.
  • Q: What are the main features of this product? A: This product is designed to automate various tasks and processes, increasing efficiency and productivity. It is also equipped with advanced technology and tools to enhance its performance.
  • Q: Is this product suitable for small businesses? A: Yes, this product is suitable for small businesses as it can be customized to fit their specific needs and budget.
