Electricity Powered Heavy Duty 2 Layers Telescopic Conveyor For Carton / Box Transportation
| Place of Origin | China |
|---|---|
| Brand Name | CLX |
| Certification | N/A |
| Model Number | CLX-CT-2-1 |
| Minimum Order Quantity | 1 |
| Packaging Details | Export Standard Plywood case pack, 1pcs/carton |
| Delivery Time | 30 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 30 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Type | 2 Layer Telescopic Type | Usage | Caron / Box Loading In Truck Or Container |
|---|---|---|---|
| Control And Drive | Motor And Reducer Drive | Size | Customized |
| Installation | Free Installtion | Durability | Customized |
| Safety Features | High | Maintenance | Low |
| High Light | Heavy Duty Telescopic Conveyor,2 Layers Telescopic Conveyor,Box Transportation Retractable Conveyor |
||
Product Description

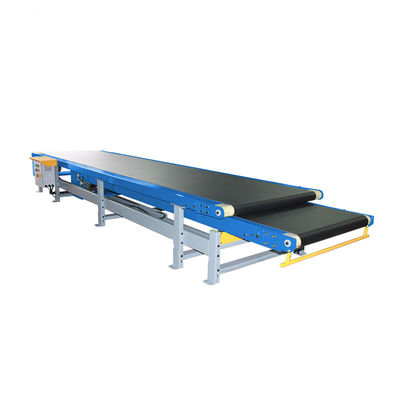

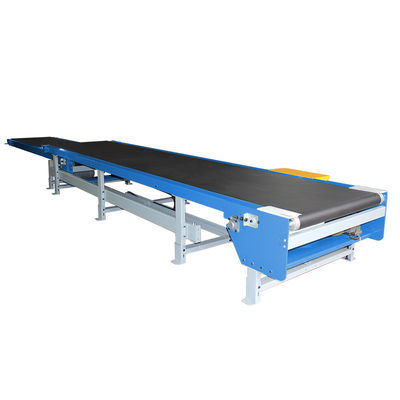

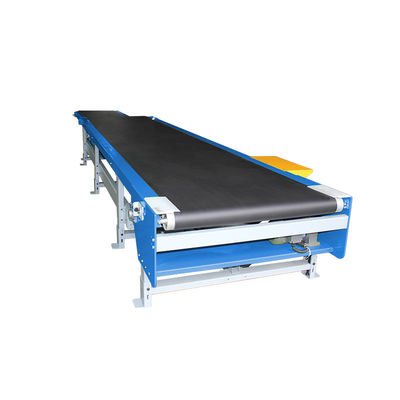

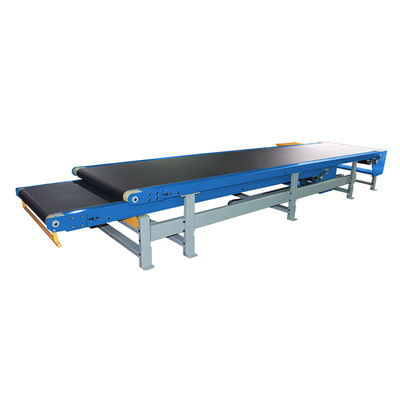

Electricity Powered Logistic Conveyor Systems Heavy Duty 2 Layers Telescopic Conveyor For Carton/Box Transportation
2-layers (drawer) belt conveyor is used to achieve fast transport and loading of some like cargos like carton / box.
It is composed of a combination of upper and lower belt conveyors, with the upper belt conveyor realizing the function of conveying goods and the lower belt conveyor realizing the function of transportation and loading goods.
The lower belt conveyor can be pulled out unidirectionally with manual assistance guided by guide rails, and the length of the lower belt conveyor can be determined based on the size of the space inside the car compartment.
With this 2-layer drawer conveyors, it can save too much labor job during cargo transfer and loading at present.
This (drawer) belt conveyor is composed of an upper or lower drive assembly, a tensioning assembly, a conveyor belt, a frame body, a directional assembly, a guiding mechanism, and electrical control cabinet.
Features:
* Machine structure with standardized and modular design, with strong interchangeability, and easily assemble on machine frame;
* With intermediate drive and tensioning, for the better performance of interconnection between conveyors;
* Roller and universal parts are designed with quick change structure, so that it is easy to maintain the roller and bearings;
* With optimized and reasonable structural design on direction and drive assembly, considering the deviation of the tape, which can easily adjust the direction and roller, and can easily tighten the loose belt.
* The equipment has a belt deviation correction structure design, and the belt deviation is automatically corrected and returned to its original position. Fully consider the scheme of belt deviation without tearing the belt from a structural perspective;
* The lower conveyor length can be adjustable as differnt situations.
Technical Parameters:
| Item | Specifications | Parameters |
| 1 | Machine Strucure | Carbon steel with painting, 4mm thickness |
| 2 | Conyeor transportion capacity | speed adjustable at 25-35 m/min, with 60kg/m2 |
| 3 | Top Conveyor belt | 1000mm width, PVC materials |
| 4 | Lower Conveyor belt | 800mm width, PVC materials |
| 5 | Machine Dimension | Customized (refer different options) |
| 6 | Belt running deviation | Within 15mm, with deviation correction function |
| 7 | Drive motor | SEW, 0.75- 1.1Kw |
| 8 | Power Supply | AC 380V/50Hz, 3P |
| 9 | Control Parts | With indepent power cabinet |
| Top layer length (m) | Lower layer length (m) | Total length (m) |
| 4 | 3 | 7 |
| 5 | 4 | 9 |
| 6 | 5 | 11 |
| 7 | 6 | 13 |
You can choose the suitable product dimension based on your present situations, and details request.
Applications:
2 layers conveyors on stocks
2 layers Conveyor working on tray filling
Support and Services:
Warehouse Equipment Systems Technical Support and Service
We provide comprehensive technical support and service for Warehouse Equipment Systems, including:
- Installation and setup instructions
- Troubleshooting and diagnostics
- Software and firmware updates
- Hardware repair and maintenance
- Spare parts and accessories
- User guides and manuals
Our technical support team is available 24/7 to answer any questions or concerns you may have.
