High Speed Gigabit Ethernet Machine Vision Sensors Rated 9-24VDC CMOS Global Scan

Place of Origin China
Brand Name iRAYPLE
Certification CE, FCC, ROHS
Model Number A7A20MG9E

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model A7A20MG9E Power Supply DC 9-24 V
Frame Rate Up To 9,000 Frames Per Second Sensing Method Global Scan
Interface Gigabit Ethernet Depth Of Field 5 Mm To 200 Mm
Weight Approx. 100 G
High Light

Gigabit Ethernet Machine Vision Sensors


High Speed Machine Vision Sensors 24VDC


CMOS Vision Camera Sensor

Leave a Message
Product Description

Product Description:

The landscape of industrial automation and quality control is ever-evolving, with the advent of more sophisticated and advanced technologies. One such innovation at the forefront of this revolution is the state-of-the-art Machine Vision Sensor. This cutting-edge computer vision sensor is designed to meet the demanding needs of high-speed manufacturing processes, where precision and efficiency are paramount. The sensor offers an unparalleled frame rate of up to 9,000 frames per second, ensuring that even the fastest-moving objects are captured with crystal clear detail.

At the heart of this sensor's prowess lies its sensing method – the CCD Line Scan technology. This technology is renowned for its high resolution and sensitivity, which is critical in detecting the finest details in a variety of industrial applications. Whether the task involves inspection, gauging, or sorting, the CCD Line Scan ensures that the Machine Vision Sensor captures the highest quality images, facilitating accurate and reliable decision-making.

The compact and robust design of this 2D vision sensor, with dimensions of W 50 mm x H 50 mm x D 50 mm, ensures that it can be seamlessly integrated into a wide range of industrial environments without requiring significant space. This small footprint does not compromise the sensor's performance, as it is built to withstand the rigors of industrial use. Its solid construction coupled with its powerful capabilities makes it a versatile and indispensable tool in modern manufacturing.

Equipped with a power supply requirement of 24 VDC, the Machine Vision Sensor is energy efficient, making it an ideal choice for continuous operation without incurring high power costs. The sensor’s energy efficiency, combined with its performance, makes it a cost-effective solution for businesses looking to optimize their operations.



● Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m;
● 256MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.;
● Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.;
● Support multiple image data formats output/ROI/Mirror, etc.;
● Conform to GigE Vision V2.0 protocol and GenICam standard;
● Support PoE power supply, DC 9V~24V wide voltage power supply;
● Conform to CE, FCC, RoHS;

Technical Parameters:

Sensor IMX304
Image Sensor 1.1''CMOS
Shutter Global
Resolution 4096 × 3000
Frame Rate 9 fps
Bit Depth 12
Mono/Color Mono
Pixel Size 3.45 μm × 3.45 μm
Pixel 12.29MP
S/N Ratio >38dB
Dynamic Range 70dB
Image Format Mono8/10/10Packed/12/12Packed
Binning Support
ROI Support
X Flip Support
Y Flip Support
Gain 1~32
Gamma 0~4,support LUT
Exposure Time 48μS~1S
Trigger Mode Support Software Trigger/Hardware Trigger/Free Run Mode;
SPC Support
User Setting Support two sets of user-defined configurations
Image Buffer 256MB

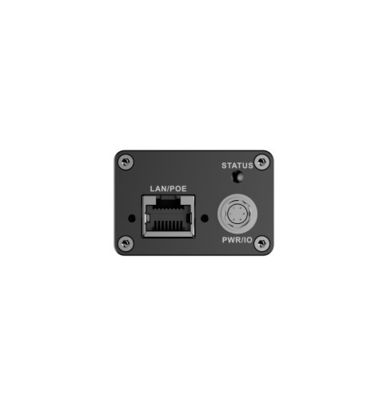

Port GigE, PoE
GPIO Interface 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output
Lens Mount C-mount
Power Supply PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption 12V≈3.2W
Product Dimensions 29mm*44mm*58mm (not including lens mount and rear case connector)
Net Weight 100 g
Storage Temperature - 30℃~+80℃
Operating Temperature - 30℃~+50℃


The CLX brand, hailing from China, has pioneered in the field of advanced industrial automation with its state-of-the-art machine vision sensors. The product in question, a machine vision image sensor, is a quintessential component for modern industries looking to enhance precision, speed, and reliability in their operations. This sensor operates seamlessly within a temperature range of 0 to 50 degrees Celsius, making it versatile for various working environments.

One of the primary applications of the CLX 2D vision sensor is in quality control systems. The sensor's high-resolution CCD line scan technology is ideal for detecting minute defects on production lines, ensuring that only products meeting the stringent quality standards proceed to the next stage or reach the consumer. This capability is crucial in industries such as electronics manufacturing, where the sensor's depth of field, ranging from 5 mm to 200 mm, allows for inspection of components of varying sizes without compromising on accuracy.

Another scenario where the CLX machine vision image sensor proves indispensable is in the realm of packaging and sorting. With its powerful 24 VDC power supply and a robust protection rating of IP67, the sensor can withstand the rigors of continuous operation in dusty or wet conditions, common in food and beverage production. The sensor's precision imaging ensures accurate sorting based on size, shape, color, or barcodes, thus streamlining the entire packaging process.

Furthermore, the CLX 2D vision sensor finds its application in robotics, where it serves as the "eyes" for robots. It allows for accurate part identification and location, enabling automated systems to perform complex tasks such as assembly, welding, or picking and placing items with unparalleled accuracy. The sensor's adaptability to different depths of field allows robots to work with components of various sizes, enhancing the flexibility and efficiency of automated systems.

In the pharmaceutical industry, the sensor's high-resolution imaging capabilities are pivotal for pill sorting and inspection, ensuring that only safe and correctly manufactured products reach consumers. The operating temperature range ensures that the sensor functions optimally even in controlled environments, which is often a requirement in pharmaceutical production.

Lastly, the CLX machine vision image sensor is also instrumental in the automotive industry, where it is used for tasks such as inspecting paint quality, checking the fit and finish of parts, and verifying the presence of components during assembly. The sensor's durability and precision ensure that it can meet the high standards required in automotive manufacturing.

In conclusion, the CLX machine vision image sensor is a versatile and powerful tool, essential in various applications where accuracy, reliability, and durability are of paramount importance. Its design and features make it suitable for a broad range of industrial applications, ensuring that processes are not only automated but also achieve the highest quality outcomes.



Brand Name: CLX

Place of Origin: China

Weight: Approx. 200 G

Field of View: 5 mm to 200 mm

Frame Rate: Up to 9,000 Frames Per Second

Dimensions: W 50 mm x H 50 mm x D 50 mm

Protection Rating: IP67

Experience superior machine vision with the CLX sensors, designed for precise IPC and Positioning applications. Built to withstand harsh environments with an IP67 rating, these sensors are perfect for integration with your IPC systems, providing reliable performance and exact positioning capabilities.
