ZPA Controller Motor Drive Roller Diameter 50mm For Sprocket Chain Belt Conveyor

Place of Origin China
Brand Name CLX
Certification N/A
Model Number CLX-DG50-003-A-24V
Minimum Order Quantity 1
Price N/A
Packaging Details Export Standard Carton pack, 1pcs/carton
Delivery Time 5 days after order confirmation
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model CLX-DG50-003-A-24V Materials Carbon Steel (Galvanized Or Chrome Plated), Stainless Steel (SS#201, SS#304)
Diameter 50mm Length Customized As Buyer's Request
Power Supply DC 24V Power Rate 30W
Controller With EPA Controller Surface Treatment Carbon Steel Galvanized, Carbon Steel Chrome Plated, Roller With Rubber, Roller With Polyurethane Layer
High Light

Motor Drive Roller Diameter 50mm


ZPA Controller Motor Drive Roller


Sprocket Chain Belt Conveyor Motor Roller

Leave a Message
Product Description

Motor Drive Roller With ZPA Controller Diameter 50mm Used On Sprocket Chain Belt Conveyor In Warehousing System

Product Description:

Electric roller is a new type of roller that integrates motor, gear reducer, and sensor (hall potentiometer) in one control unit, and this control unit is installed inside a steel tube, to achieve a self-powered roller.


Due to the conveyor system no longer needing motors, chains, intermediate shafts,or other auxiliary driving components, this electric roller don't need heavy gearbox reducer.


ZPA is a control method for switching capacitors, which adjusts and controls the power supply voltage and motor voltage by controlling the conduction and disconnection of the switching capacitors. In the ZPA control mode, the current and voltage of the capacitor can be completely synchronized, achieving zero power absorption, while also achieving constant output voltage and current. ZPA technology has a wide range of applications in the field of power electronics, which can be used to improve the efficiency of power sources and motors, reduce energy consumption and costs.

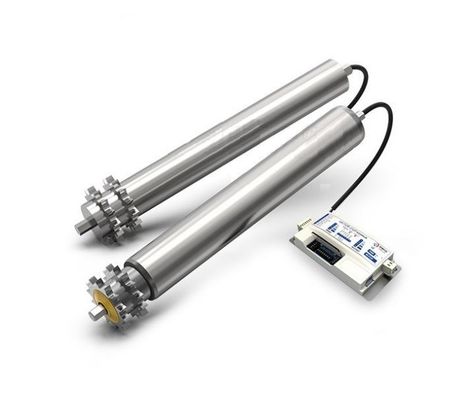

ZPA Controller Motor Drive Roller Diameter 50mm For Sprocket Chain Belt Conveyor 0


Completely new electric roller diameter 50mm for intelligent conveyor system used in warehousing System 4


1 Wire (to connect with control unit)
2 Wire output end shaft
3 Front bearing seat
4 DC Brushless motor
5 Reduction gearbox
6 Gearbox fixing seat
7 Cylinder wall
8 Drive wheel bearing seat
9 Drive wheel end shaft
10 Hall sensor
11 Control unit

Technical Parameters:

Attribute Details
Model  CLX-DG50-003-A-24V
Roller Tube Size  Diameter 50mm, length can be customized as request
Materials  Stainless Steel (like SS#304, or SS#201)
Surface Treatment  With rubber layer, or With polyurethane layer
Power Supply  DC 24V
Power Rate  30W
Suitable for  Sprocket Chain belt conveyor
Suitable for Conveyor speed 0-95 m/min adjustable
Controller  With ZPA Controller, no need PLC programming
Application Industrial Electrical Equipment, suitable for ZPA, AGV use, and Intelligent roller systems

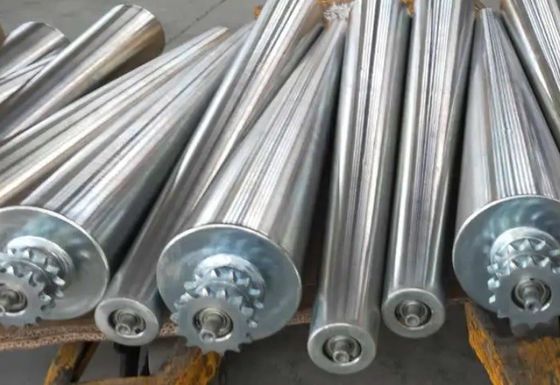

ZPA Controller Motor Drive Roller Diameter 50mm For Sprocket Chain Belt Conveyor 2
