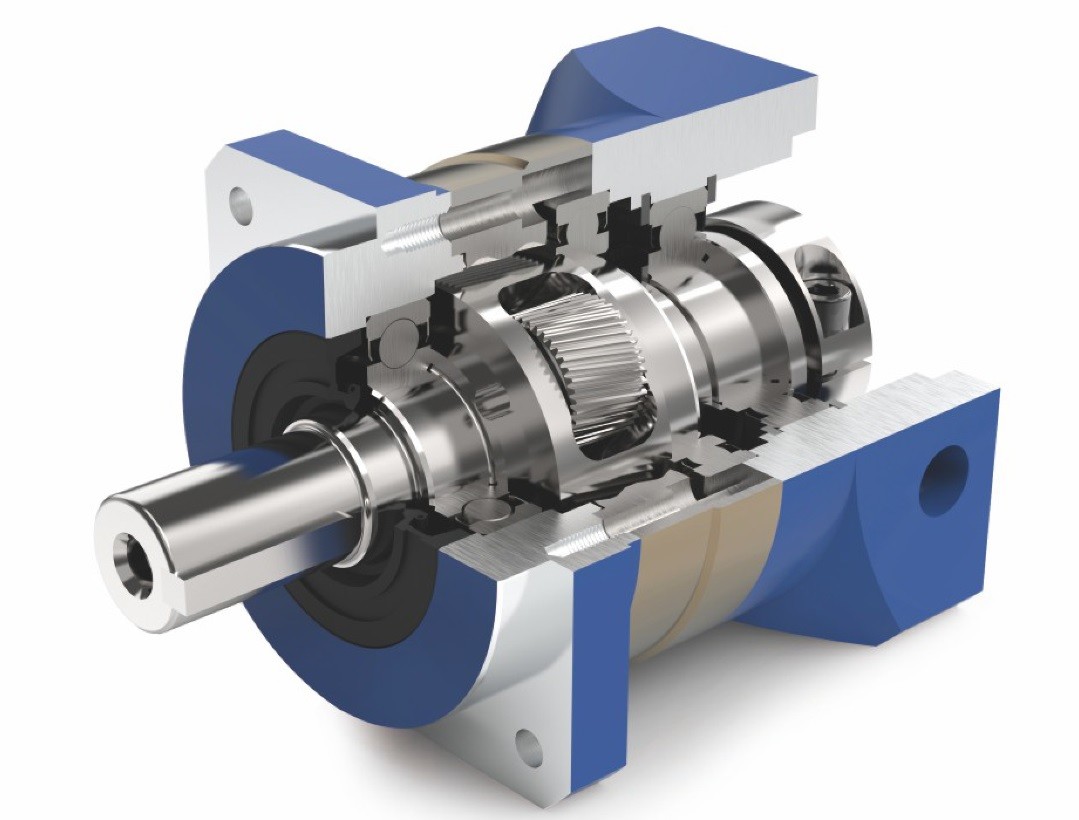

Aluminium Alloy Helical Gear Planetary Reducer AF Series Matching Motor

  • Aluminium Alloy Helical Gear Planetary Reducer AF Series Matching Motor
  • Aluminium Alloy Helical Gear Planetary Reducer AF Series Matching Motor
Place of Origin China
Brand Name CLX
Certification N/A
Model Number AF090

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name AF Series Helical Gear Reducer Materials All Metal Structure With Aluminium Alloy And Steel
Application Industrial Electrical Equipment Gearing Arrangement Helical Gear Reducer
Highlight

Planetary Reducer AF Series

,

Aluminium Alloy Helical Gear Planetary Reducer

,

Matching Motor Helical Gear Reducer
Leave a Message
Product Description

Helical Gear Planetary Reducer AF Series Matching Different Brands Motor For Chinese And Overseas Manufacturer

Product Description:

Reducer is an independent component composed of gear transmission, worm transmission, and gear worm transmission enclosed in a rigid shell, usually used as a reduction transmission device between the original transmission and the working machine.



Gearboxes are typically used for low-speed and high torque transmission equipment. By meshing a small number of teeth on the input shaft of the gearbox with the large gears on the output shaft, the power of electric motors, internal combustion engines, or other high-speed operations can be reduced. A regular gearbox also has several pairs of gears with the same principle to achieve the desired deceleration effect. The ratio of the number of teeth between the large gear and the small gear is the transmission ratio.



Straight Gear Planetary Reducer ZPT Series matching different brands Motor for Chinese and Overseas Manufacturer 0

Gear reducers have the characteristics of small volume and large torque transmission. The gear reducer is designed and manufactured based on a modular combination system, with a wide range of motor combinations, installation forms, and structural schemes. The transmission ratio is finely graded to meet different operating conditions and achieve electromechanical integration. The gear reducer has high transmission efficiency, low energy consumption, and superior performance.



Features:

1. Adopt straight tooth gear transmission, through carburizing and quenching treatment,tooth profile modification treatment, ensure smooth operation, low noise;

2. Simple structure, mass production, and fast delivery time and high cost performance;

3. Reducer has a complete range, which can meet the needs of most reducer in the market

Technical Parameters:



Helical gear Unit AF060 AF090 AF115 AF140 AF180 Ratio Stage
Rated output Torque N.m 18 50 120 240 600 3 1
27 75 180 360 750 4
27 75 180 360 750 5
27 75 180 360 750 7
18 50 120 240 500 10
35 90 180 450 650 15 2
37 96 230 450 1050 16
37 96 230 564 1000 20
37 96 255 585 1000 25
37 96 230 564 1050 28
27 87 180 360 800 30
37 96 255 585 1000 35
37 96 230 564 1000 40
37 96 255 585 1000 50
27 87 180 360 800 70
18 50 120 240 710 100
Emergency Stop torque N.m 3 times rated output torque
Norminal input speed r/m 3000 3000 3000 2000 1500
Max input speed r/m 6000 6000 6000 3500 3000
Max radial force N 1200 2400 4300 9100 15000
Max axial force N 1100 2200 3900 8200 14000
Efficiency % Single(97%) Double(95%)
Average Lifetime h 20000
Weight kg 1.4 3.7 8 16 36   1
1.6 4.2 8.9 18 39   2
Moment of inertia kgcm2 0.16 0.61 3.25 12.31 28.98 3 1
0.14 0.48 2.74 7.54 23.67 4
0.13 0.47 2.71 7.42 22.75 5
0.13 0.47 2.62 7.25 22.48 7
0.13 0.44 2.57 7.14 22.55 10
0.127 0.72 2.56 12.35 12.35 15 2
0.088 0.5 1.75 7.47 7.54 16
0.075 0.44 1.5 6.65 7.42 20
0.075 0.44 1.49 5.81 7.54 25
0.064 0.39 1.3 6.34 7.14 28
0.064 0.39 1.3 6.34 7.14 30
0.064 0.39 1.3 6.34 7.14 35
0.064 0.39 1.3 4.08 7.14 40
0.075 0.39 1.5 7.5 7.54 50
0.075 0.39 1.5 7.5 7.54 70
0.075 0.39 1.5 7.5 7.54 100
Backlash arcimin ≦3 ≦3 ≦3 ≦3 ≦3 Precise
≦5 ≦5 ≦5 ≦5 ≦5 Standard
≦5 ≦5 ≦5 ≦5 ≦5 Precise
≦7 ≦7 ≦7 ≦7 ≦7 Standard
Torsional Rigidity N.M/arcmin 7 14 25 50 145
Noise dB 60 62 62 68 70
Lubricating   Synthetic grease lubrication
Levels of protection   IP65

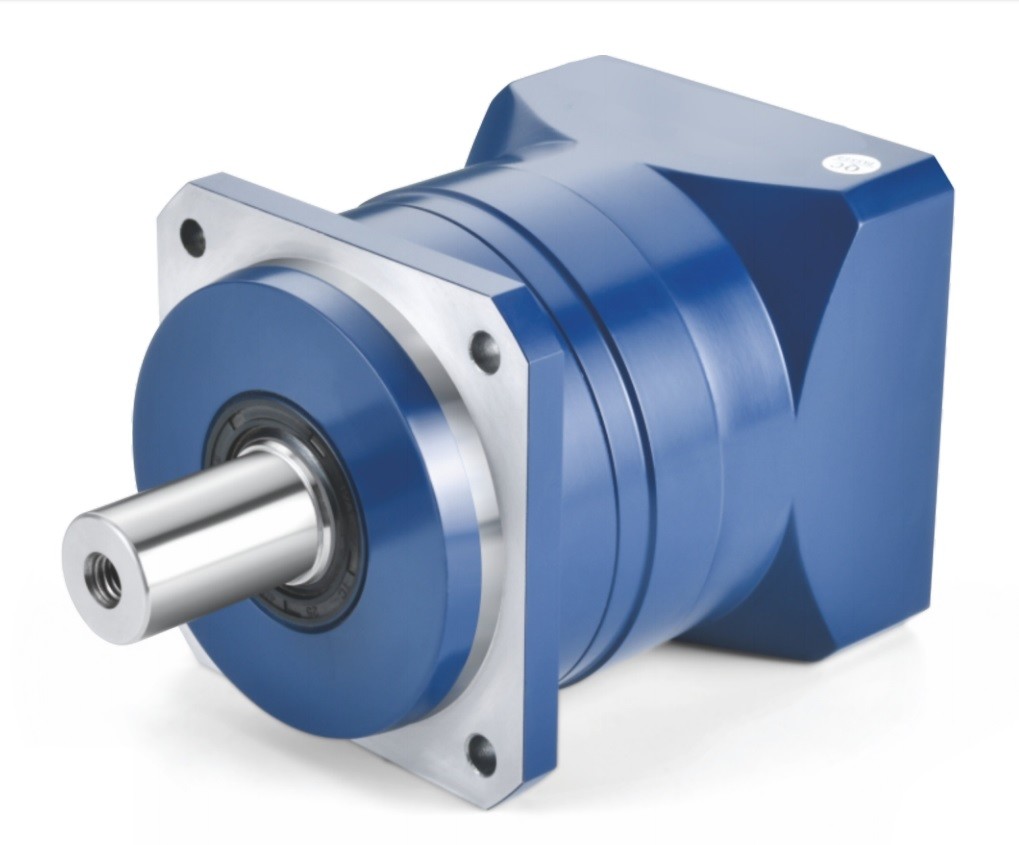

Aluminium Alloy Helical Gear Planetary Reducer AF Series Matching Motor 1
