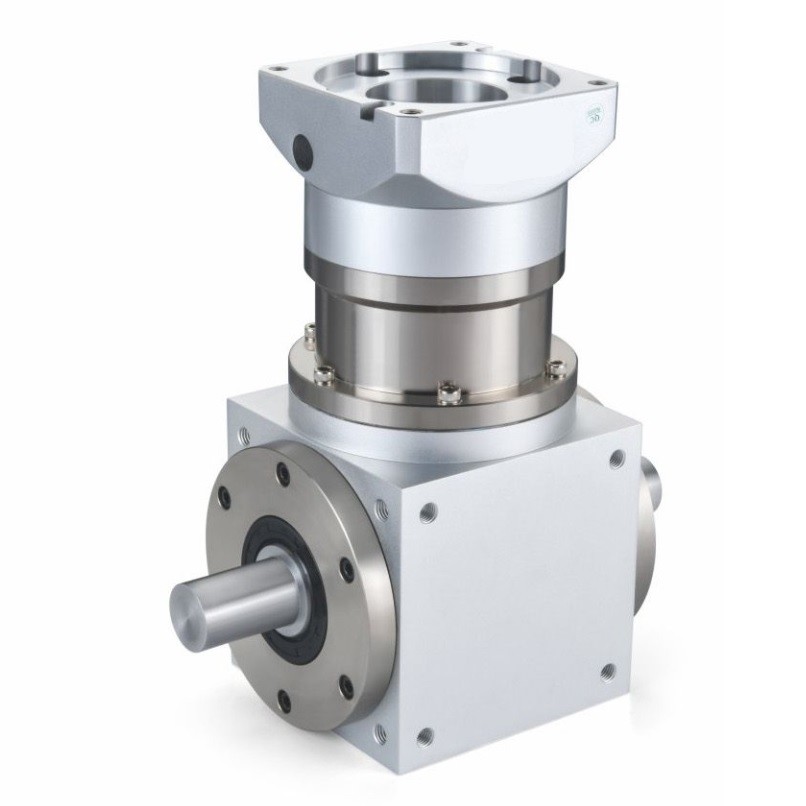

Metal Straight Gear Planetary Reducer Industrial Electrical Spare Parts ZPT Series
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | ZPT Series Straight Gear Reducer | Materials | All Metal Structure With Aluminium Alloy And Steel |
---|---|---|---|
Applications | All Kinds Of Machine Or Equipments With Motor, Servo Motor Drive | Gearing Arrangement | Straight Gear Reducer |
High Light | ZPT Series Straight Gear Reducer,Industrial Electrical Spare Parts Planetary Reducer,Metal Planetary Reducer |
Straight Gear Planetary Reducer ZPT Series Matching Different Brands Motor For Chinese And Overseas Manufacturer
Product Description:
Reducer is an independent component composed of gear transmission, worm transmission, and gear worm transmission enclosed in a rigid shell, usually used as a reduction transmission device between the original transmission and the working machine.
Gearboxes are typically used for low-speed and high torque transmission equipment. By meshing a small number of teeth on the input shaft of the gearbox with the large gears on the output shaft, the power of electric motors, internal combustion engines, or other high-speed operations can be reduced. A regular gearbox also has several pairs of gears with the same principle to achieve the desired deceleration effect. The ratio of the number of teeth between the large gear and the small gear is the transmission ratio.
A reducer plays a role in matching speed and transmitting torque between the prime mover and the working machine or actuator, and is a relatively precise mechanical device. The purpose of using it is to reduce the speed and increase the torque. It has a wide variety of types, different models, and different types have different uses. There are various types of reducers, which can be divided into gear reducers, worm reducers, and planetary gear reducers according to the transmission type; According to different transmission stages, it can be divided into single stage and multi-stage reducers; According to the shape of the gears, they can be divided into cylindrical gear reducers, bevel gear reducers, and bevel cylindrical gear reducers; According to the arrangement of transmission, it can be divided into deployable reducers, split flow reducers, and coaxial reducers.
Gear reducers have the characteristics of small volume and large torque transmission. The gear reducer is designed and manufactured based on a modular combination system, with a wide range of motor combinations, installation forms, and structural schemes. The transmission ratio is finely graded to meet different operating conditions and achieve electromechanical integration. The gear reducer has high transmission efficiency, low energy consumption, and superior performance.
Features:
1. Adopt straight tooth gear transmission, through carburizing and quenching treatment,tooth profile modification treatment, ensure smooth operation, low noise;
2. Simple structure, mass production, and fast delivery time and high cost performance;
3. Reducer has a complete range, which can meet the needs of most reducer in the market.
Size | ZPT070 | ZPT090 | ZPT110 | ZPT140 | |
C1 | Ø70 | Ø90 | Ø90 | Ø145 | |
C2 | 4-M4/4-M5 | 4-M5/4-M6 | 4-M5/4-M6 | 4-M8 | |
C3 | Ø14 | Ø19 | Ø19 | Ø19/Ø22/Ø24 | |
C4 | 31.5 | 42 | 42 | 60 | |
C5 | Ø50 | Ø70 | Ø70 | Ø110 | |
C6 | 5 | 8 | 8 | 8 | |
C7 | 60 | 90 | 90 | 90 | |
C8 | Stage 1 | 143 | 177.5 | 198.5 | 269 |
Stage 2 | 159 | 201 | 222 | 299.5 | |
Stage 3 | 224 | 245 | 329.5 | ||
L1 | 3 | 5 | 3 | 5 | |
L2 | 25 | 25 | 30 | 40 | |
L3 | 36 | 37 | 37 | 52 | |
L4 | 77 | 118 | 134 | 170 | |
L5 | 70 | 90 | 110 | 140 | |
L6 | 26.5 | 36 | 44 | 55 | |
L7 | 21.2 | 36 | 44 | 55 | |
L8 | |||||
L9 | |||||
D1 | 16 | 18 | 22 | 32 | |
D2 | 25 | 28 | 35 | 45 | |
D3 | 60 | 88 | 108 | 135 | |
D5 | 4-M5 | 4-M6 | 4-M8 | 4-M10 | |
D6 | M5*10 | M6*12 | M6*12 | M10*20 | |
H1 | 18 | 20.5 | 24.5 | 35 | |
H2 | |||||
B1 | 5 | 6 | 6 | 10 | |
B2 |
Technical Parameters:
Model | Unit | ZPT070 | ZPT090 | ZPT110 | ZPT140 | Ratio | Stage |
Rated output Torque | N.m | 45 | 80 | 170 | 1 | 1 | |
35 | 2 | ||||||
45 | 80 | 170 | 3 | ||||
45 | 80 | 170 | 4 | ||||
45 | 80 | 170 | 5 | ||||
45 | 80 | 170 | 7 | ||||
35 | 8 | ||||||
35 | 45 | 80 | 170 | 10 | |||
45 | 80 | 170 | 12 | 2 | |||
35 | 14 | 1 | |||||
45 | 80 | 170 | 15 | 2 | |||
45 | 80 | 170 | 16 | ||||
35 | 45 | 80 | 170 | 20 | 1 | ||
45 | 80 | 170 | 25 | 2 | |||
45 | 80 | 170 | 28 | ||||
35 | 32 | 2 | |||||
45 | 80 | 170 | 35 | 2 | |||
35 | 45 | 80 | 170 | 40 | |||
35 | 45 | 80 | 170 | 50 | |||
35 | 56 | 2 | |||||
45 | 80 | 170 | 64 | 3 | |||
35 | 45 | 80 | 170 | 70 | 2 | ||
35 | 45 | 80 | 170 | 80 | 3 | ||
35 | 45 | 80 | 170 | 100 | |||
45 | 80 | 170 | 125 | ||||
35 | 45 | 80 | 170 | 140 | |||
45 | 80 | 170 | 175 | ||||
45 | 80 | 170 | 200 | ||||
45 | 80 | 170 | 250 | ||||
45 | 80 | 170 | 280 | ||||
45 | 80 | 170 | 350 | ||||
Emergency Stop torque | N.m | 2 times rated output torque | |||||
Norminal input speed | r/m | 3000 | 2500 | 2000 | 2000 | ||
Max input speed | r/m | 4000 | 3500 | 3000 | 3000 | ||
Max radial force | N | 950 | 1450 | 2100 | 2700 | ||
Max axial force | N | 425 | 725 | 1050 | 1350 | ||
Efficiency | % | Single(97%) | Double(95%) | ||||
Average Lifetime | h | 20000 | |||||
Weight | kg | 4.2 | 6.8 | 11.6 | 19.8 | 1 | |
4.6 | 7.4 | 13.8 | 23.9 | 2 | |||
8 | 16 | 28 |
3
|
Model | Unit | ZPT070 | ZPT090 | ZPT110 | ZPT140 | Ratio | Stage |
Moment of inertia | kgcm2 | 0.4 | 0.4 | 1.65 | 3 | 1 | |
0.309 | 0.309 | 1.22 | 4 | ||||
0.291 | 0.291 | 1.15 | 5 | ||||
0.285 | 0.285 | 1.7 | 7 | ||||
0.094 | 8 | ||||||
0.092 | 0.283 | 0.283 | 1.13 | 10 | |||
0.4 | 0.4 | 1.65 | 12 | 2 | |||
0.092 | 14 | 1 | |||||
0.309 | 0.309 | 1.22 | 15 | 2 | |||
0.291 | 0.291 | 1.22 | 16 | ||||
0.091 | 0.291 | 0.291 | 1.15 | 20 | 1 | ||
0.291 | 0.291 | 1.15 | 25 | 2 | |||
0.285 | 0.285 | 1.13 | 28 | ||||
0.094 | 32 | 2 | |||||
0.285 | 0.285 | 1.13 | 35 | 2 | |||
0.092 | 0.283 | 0.283 | 1.11 | 40 | |||
0.092 | 0.285 | 0.285 | 1.11 | 50 | |||
0.091 | 56 | 2 | |||||
0.291 | 0.291 | 1.15 | 64 | 3 | |||
0.091 | 0.285 | 0.285 | 1.11 | 70 | 2 | ||
0.091 | 0.285 | 0.285 | 1.15 | 80 | 3 | ||
0.091 | 0.285 | 0.285 | 1.15 | 100 | |||
0.285 | 0.285 | 1.15 | 125 | ||||
0.091 | 0.285 | 0.285 | 1.13 | 140 | |||
0.285 | 0.285 | 1.13 | 175 | ||||
0.283 | 0.283 | 1.11 | 200 | ||||
0.283 | 0.283 | 1.11 | 250 | ||||
0.283 | 0.283 | 1.11 | 280 | ||||
0.283 | 0.283 | 1.70 | 350 | ||||
Noise | dB | 70 | 70 | 70 | 70 | 70 | |
Lubricating | Synthetic grease lubrication | ||||||
Levels of protection | IP65 |
