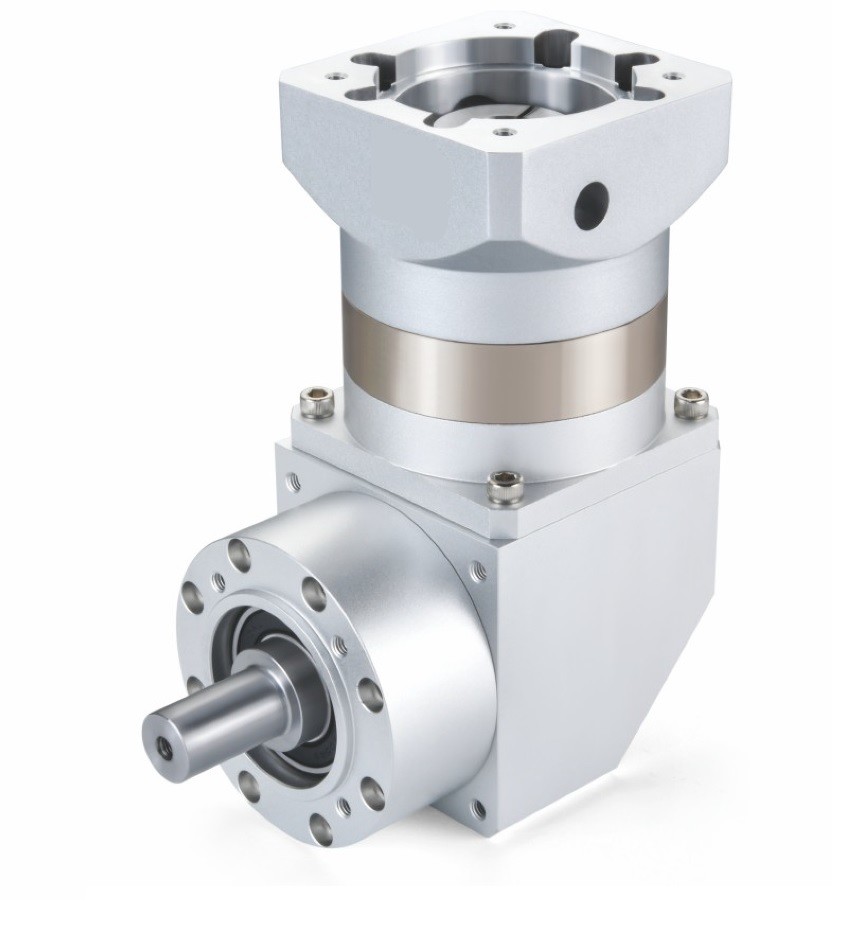

Straight Gear Planetary Reducer ZPLE Series For Industrial Electrical Equipment

  • Straight Gear Planetary Reducer ZPLE Series For Industrial Electrical Equipment
Place of Origin China
Brand Name CLX
Certification N/A
Model Number ZPLE

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name ZPLE Series Straight Gear Reducer Materials All Metal Structure With Aluminium Alloy And Steel
Application Industrial Electrical Equipment Gearing Arrangement Straight Gear Reducer
High Light

Planetary Reducer ZPLE Series

,

Straight Gear Planetary Reducer

,

Industrial Electrical Equipment Planetary Reducer
Leave a Message
Product Description

Spur Gear Planetary Reducer ZPLE Series Matching Servo Motor For Various Applications

Product Description:

Reducer is an independent component composed of gear transmission, worm transmission, and gear worm transmission enclosed in a rigid shell, usually used as a reduction transmission device between the original transmission and the working machine.



Gearboxes are typically used for low-speed and high torque transmission equipment. By meshing a small number of teeth on the input shaft of the gearbox with the large gears on the output shaft, the power of electric motors, internal combustion engines, or other high-speed operations can be reduced. A regular gearbox also has several pairs of gears with the same principle to achieve the desired deceleration effect. The ratio of the number of teeth between the large gear and the small gear is the transmission ratio.



Straight Gear Planetary Reducer ZPT Series matching different brands Motor for Chinese and Overseas Manufacturer 0

Gear reducers have the characteristics of small volume and large torque transmission. The gear reducer is designed and manufactured based on a modular combination system, with a wide range of motor combinations, installation forms, and structural schemes. The transmission ratio is finely graded to meet different operating conditions and achieve electromechanical integration. The gear reducer has high transmission efficiency, low energy consumption, and superior performance.



Features:

1. Adopt straight tooth gear transmission, through carburizing and quenching treatment,tooth profile modification treatment, ensure smooth operation, low noise;

2. Simple structure, mass production, and fast delivery time and high cost performance;

3. Reducer has a complete range, which can meet the needs of most reducer in the market

Technical Parameters:

Model Unit ZPLE060 ZPT090 ZPLE120 Ratio Stage
Rated output Torque N.m 16.5 60 148 3 1
27 86 222 4
27 94.5 235 5
19.5 64 158 7
8.5 39.5 93 10
  96 250 12 2
  96 250 15
30 96 250 16
30 96 250 20
33 105.5 264 25
30 96 250 28
33 105.5 264 35
30 96 250 40
33 105.5 264 50
21.5 71.5 177 70
37.5 120 310 64 3
37.5 120 310 80
37.5 120 310 100
41 132.5 329 125
37.5 120 310 140
41 132.5 329 175
37.5 120 310 200
41 132.5 329 250
37.5 120 310 280
41 132.5 329 350
Emergency Stop torque N.m 2 times rated output torque
Norminal input speed r/m 3000 3000 2000
Max input speed r/m 6000 6000 3500
Max radial force N 170 1020 2230
Max axial force N 120 850 1550
Efficiency % Single(97%) Double(95%)
Average Lifetime h 20000
Weight kg 2.2 4.7 11.5   1
2.5 5.3 13.5   2
2.8 5.9 15.7   3



Model Unit ZPLE060 ZPT090 ZPLE120 Ratio Stage
Moment of inertia kgcm2 0.107 0.4 1.65 3 1
0.094 0.309 1.22 4
0.092 0.291 1.15 5
0.091 0.285 1.13 7
0.091 0.283 1.11 10
  0.4 1.65 12 2
  0.309 1.65 15
0.094 0.291 1.22 16
0.092 0.291 1.15 20
0.092 0.291 1.15 25
0.091 0.285 1.13 28
0.091 0.285 1.13 35
0.091 0.2835 1.11 40
0.091 0.283 1.11 50
0.091 0.283 1.11 70
0.092 0.291 1.15 64 3
0.092 0.291 1.15 80
0.092 0.291 1.15 100
0.092 0.291 1.15 125
0.091 0.291 1.13 140
0.091 0.291 1.13 175
0.091 0.283 1.11 200
0.091 0.283 1.11 250
0.091 0.283 1.11 280
0.091 0.283 1.11 350
Noise dB 60 65 68
Lubricating   Synthetic grease lubrication
Levels of protection

IP65
