ASRS Heavy Duty Pallet Stacker Automatic Racking System For 16m Warehouse

Place of Origin China
Brand Name CLX
Certification N/A
Model Number CLX-HLoad-1.5T
Minimum Order Quantity 1
Price $50000-100000
Packaging Details Export Standard plywood case pack;
Delivery Time 30-40 days
Payment Terms T/T, L/C, D/A, D/P, OA,Western Union, MoneyGram
Supply Ability 30PCS/month, 400pcs/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Dimension(mm) Non-standard As Request Stacking Height(m) 0-16m
Max Load/carton 1500kg Straight Speed 0-100m/min
Acceleration 0-2.5m/s2 Column With Endurable Steel Structure
Ground Rail With Endurable Steel Structure Drive Mode Servo Motor Drive, With Endurable Belt
Cross Beam With Endurable Steel Structure Straight Accuracy ±5mm
Lifting Accuracy ±3mm Fork Accuracy ±2mm
Safety 1 Appearance Detection Safety 2 Over Weight Detection
Safety 3 Cord Loosen Detection Safety 4 Cord Broken Detection
Safety 5 Speed Limit, And Avid Falling Device
High Light

16m Warehouse Heavy Duty Pallet Stacker


ASRS Stacker Automatic Racking System


ASRS Heavy Duty Pallet Stacker

Leave a Message
Product Description

AS-RS Stacker ( Automated Storage and Retrieval System Stacker)

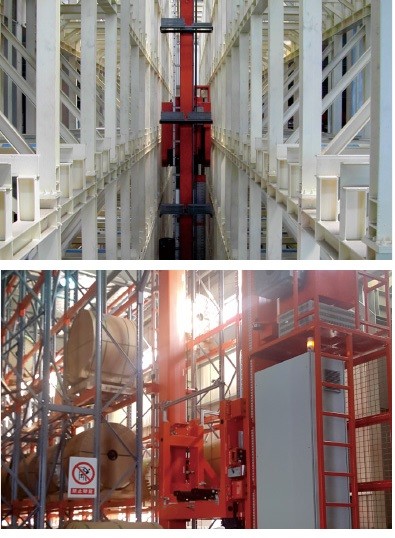

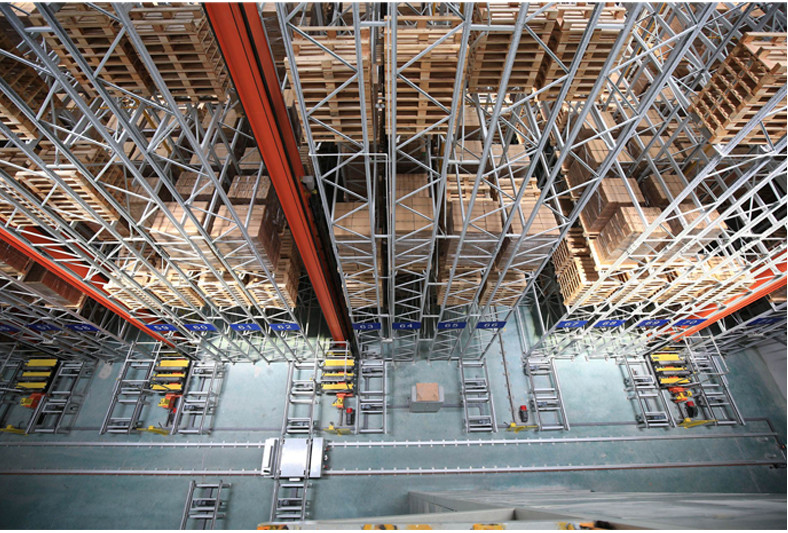

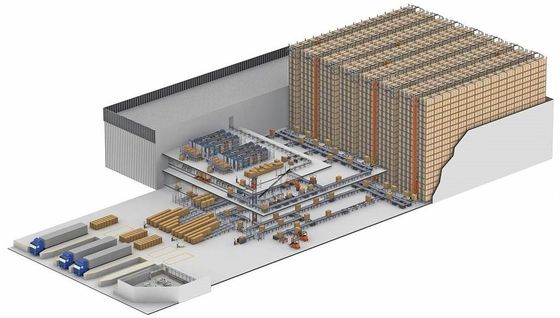

The Automated Storage and Retrieval System (AS-RS) is a new type of modern warehouse that is mainly composed of high-lifting shelves and track tunnel stackers, combined with different kinds of warehouse equipments, to achieve automatic storage and cargo management.


Track tunnel stacker refers to a stacker that travels on ground rails. This type of stacker consists of three key parts: steel ground rails, columns with steel wheels, and forks. The column with steel wheels runs back and forth on the steel rail, and the cargo fork runs up and down on the column. The structure of the steel rail, column, and cargo fork is similar to a three-axis motion platform.


At present, the commonly used tunnel stackers are all ground supported stackers. The metal structure columns of this stacker mainly consider the bending strength in the track plane. Therefore, it is necessary to increase the moment of inertia of the columns in the walking direction section. Due to the fact that the driving devices of the ground supported stacker are all installed on the lower crossbeam, which is easy to maintain and repair, sensors for automatic control can also be installed on the ground, making it convenient to use.





1. Based on XYZ 3-Axis structure, drving system, navigation functions, with AMR function extensibility;

2. For pallet packed products load/unload;

3. Pallet pack max capacity ≦1.5 ton, we suggest pallet capacity 0.5-1.5 ton;

4. We suggest shelves height 10-25mm;

5. The load/unload speed is determined by the motion speed of X/Y axis, X/Y travel length and operating time;

6. WCS: with WCS, for better warehouse management;

7. Intelligence: can work with ERP, WMS, for whole factory intelligent management.


Heavy-duty AS-RS Stacker for Pallet or Carton
Model # CLX-HLoad-1.5T

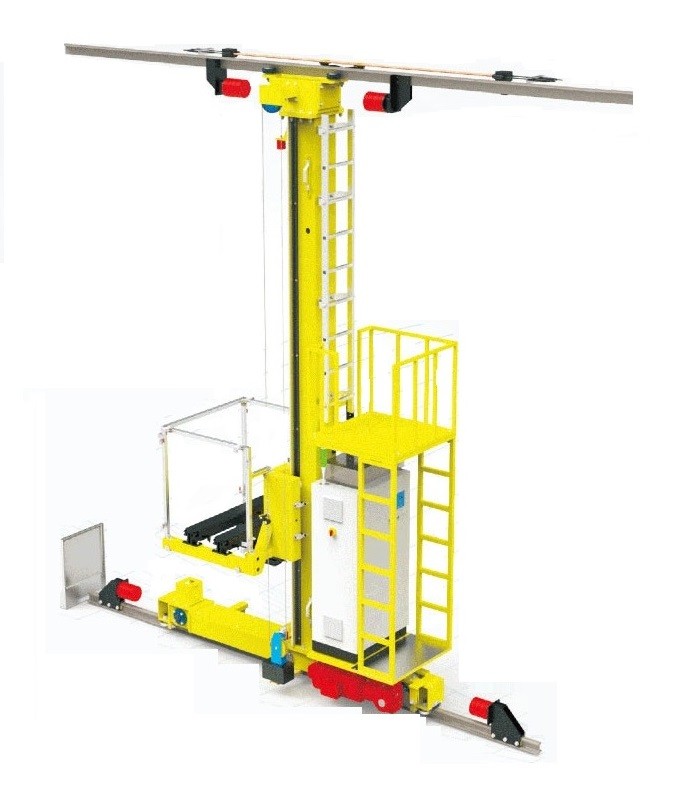

Structure With top rail, ground rail, Uppe crosbeam, lower crossbeam and standing Column, and customized fork gripper;
X-Axis Customized as design, with endurable steel on top rail and ground rail
Y- Axis Customized as design, with endurable steel column;
Z-Axis Customized fork gripper
Stacker height Customized as buyer's request;
Horizontal Travel Speed 0-180 m/min
Horizontal Acceleration 0-0.5m/s2
Horizontal travel accuracy ±5mm
Lifting speed 0-60 m/min
Lifting Acceleration 0-1.0m/s2
Lifing accuracy ±3mm
Control System PLC Contorl system on AS-RS Stacker, with WMS on whole AS-RS
Carton Griper With customized Carton Griper and Carton Basket
Griper length Adjustable at two type, single and Doube Griper
Max pallet/pack Weight 1500kg
Weight range  0.5 - 1.5 ton
Safety 1 With pack detection device, over sized and weighed carton reject
Safety 2 Belt loose or broken can be detected and alarmed
Safety 3 Speed limit and fall prevention
Elevator Recycled structure, used to transport pack downwards



Transition Rail for Stacker
