Reliable And Cost-Effective Vertical Elevator Used With 4-Way Shuttle On Automated Warehousing System


The recycled elevator is driven by a chain,  and controlled by a frequency conversion speed control motor to lift the cargo up and down in a recycled motion. The lifting cargos are equipped with a transmission mechanism to automatically feed the conveyed material into the lifting car of the elevator. This kind of hoist has the characteristics of advanced control, reliable performance and high positioning accuracy of lift cargo.
In the automated warehousing system, the 4-way shuttle is always working together with the recycled vertical elevator. The elevator works on cargo lift and down, the 4-way shuttle is used to load and unload cargo to storage positions.




1. Vertical elevator can work in recycled process, with high effiency, and not affected by high-speed transportation;
2. Vertical elevator can only transport cargo in pack, and not limited by the cargo dimensions;
3. Vertical elevator can work at great endurability, max 2ton cargo can be transfered;
4. Vertical shall work with inlet and outlet equipments, to make whole transporation automatically, and avoid any unstabiliy cansed by human;
5. With tight structure, not take too much space;
6. Safety and reliable, easy to maintenance, and runing cost cheap with effcient transport cost;




Items  Parameters  Remarks
Product Dimension 2300L*1650W*8300Hmm Can be customized as drawing
Total Cargo weight  ≤1200KG Including pallet and cargo
Cargo inspection With photo electric sensor detection
Drive type  Motor reducer drive
Lift and lower speed 0.6 m/s With inverter on speed adjustable
Output speed ≥40 pallet / hour
Positioning accuracy Photo electric sensor positioning, ±5mm
Brake type  Power off mode Ensure safety in case of power failure
Power Supply Flat cable, TN-S, AC 380V/ 50Hz, 3P




Vertical elevators used on dense warehouse system

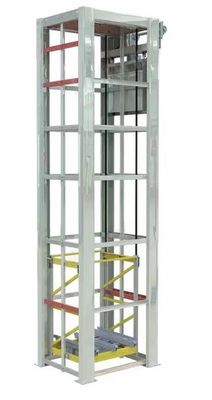

4 Way Shuttle On Automated Warehousing System For Vertical Elevator Used 0

 * These vertical elevator can be customized as the cargo load /unload efficiency;

 * These vertical elevator can be installed at different opposition, to make the best and load/unload efficiency;

 * This vertical elevator are always working with some equipments like AMR, forklift, pallet stacker, pallet distacker etc;

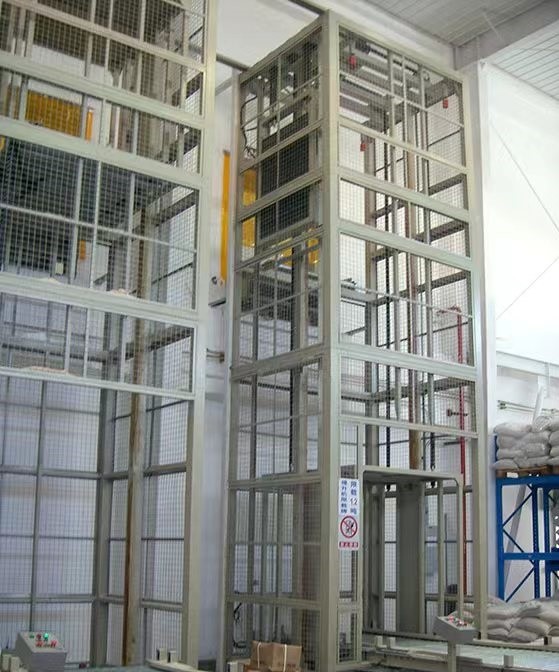

4 Way Shuttle On Automated Warehousing System For Vertical Elevator Used 1

                                              AMR with fork

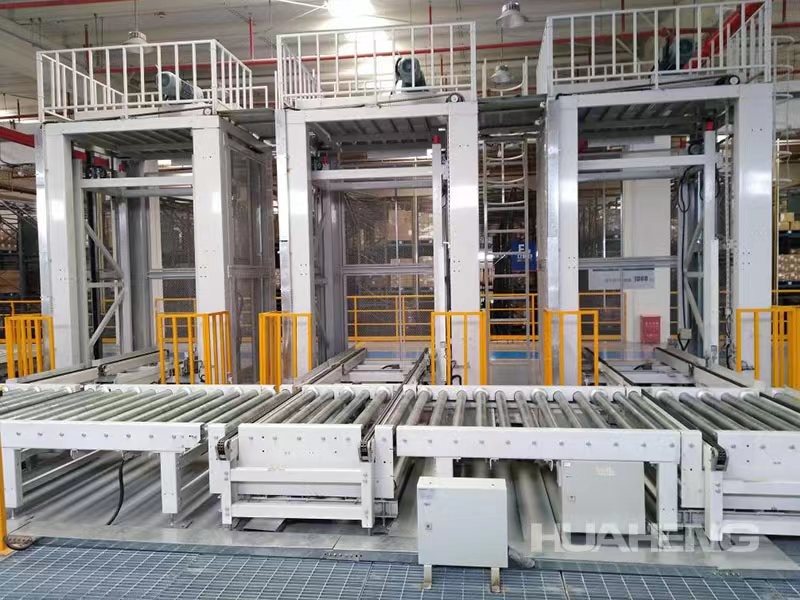

4 Way Shuttle On Automated Warehousing System For Vertical Elevator Used 2                              Pallet Stacker and Destacker

4 Way Shuttle On Automated Warehousing System For Vertical Elevator Used 3                                                      Forklift AGV
