Highly Scalable Pallet Transfer AGV Automated Warehousing System For Order Fulfillment

Place of Origin China
Brand Name CLX
Certification N/A
Model Number CLX-C1-HL
Minimum Order Quantity 1
Packaging Details Export Standard Plywood case pack, 1pcs/carton
Delivery Time 30 days
Payment Terms D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 50 sets/montly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Pallet Forklift AGV Product Dimension L2067*W900*H2100mm, Or Customized
Navigation Methods Laser/magnetic Navigation Lifting Height 125mm
Communication Type 5G/WIFI Running Direction Forward/Backward/straight And Curve/left And Right Division
Running Speed 90m/min Parking Accuracy ±10mm
Positioning Accracy ±10mm Scalability High
Maintenance Regular Maintenance On Forklift
High Light

Pallet Transfer Automated Warehousing System


AGV Automated Warehousing System


Highly Scalable Automated Warehousing System

Leave a Message
Product Description

Highly Scalable and Low Maintenance PALLET transfer AGV Automated Warehousing System for Order Fulfillment

Pallet forklift AGV, with a load capacity of 800-2000KG, navigation positioning accuracy ±5mm, can take the place of traditional forklifts functionally, meanwhile, this pallet forklift AGV, with compact size and smart operation, can be widely used to the handle of various standard pallets.


These pallet forklift AGVs, can achieve running automatically by WIFI or 5G network, with integrated navigation methods such as Beidou, 3D multi line laser radar, and inertial navigation, be suitable for outdoor logistics distribution between workshops and factories, two modes like manual drive and auto drive can be selected, lithium battery as power supply, 24 hours working can be avaliable.


The pallet forklift AGV adopts a steering wheel system, which has a simple structure, reliable use,  small turning radius, suitable for single-sided pallets, high driving force, good vehicle stability, and high  cost-effectiveness; European standard and non-standard vehicle models can also be customized as buyer's requests.

Technical Parameters:

Model CLX-C1-HL
Type Pallet forklift AGV
Product Dimension L2067*W900*H2100mm, or can be customized
Capacity 1000-2000KG, or can be customized
Navigation methods Laser/magnetic navigation
Lifting height 125mm, for pallet transfer type
Communication Type 5G/WIFI
Running Direction Forward/Backward/straight and curve/left and right division
Running Speed 90m/min
Parking Accuracy ±10mm
Positioning Accracy ±10mm
Working time 24 hours
climb ability ≤8%
Turning radius ≤1.8m
Battery Capacity Suitable for 8 hours working,can be customized with more capacity
Charging type Manual Charging/Auto Charging/Change battery
Safty sensor area with in 3m, brake distance can be within 20mm;
Alarming type Dual alarm with voice play and warning light
Safty protection Front obstacle detection sensor, mechanical anti-collision mechanism dual protection and emergency stop button

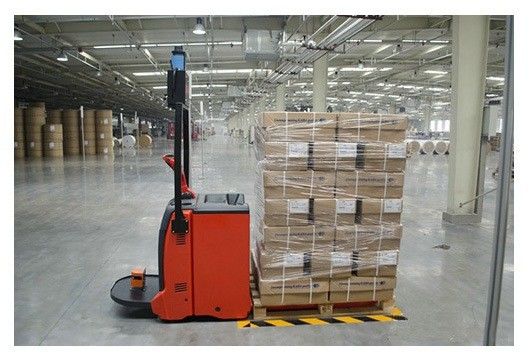

Cartons in Pallet,  Forklift AGV working
Highly Scalable Pallet Transfer AGV Automated Warehousing System For Order Fulfillment 0

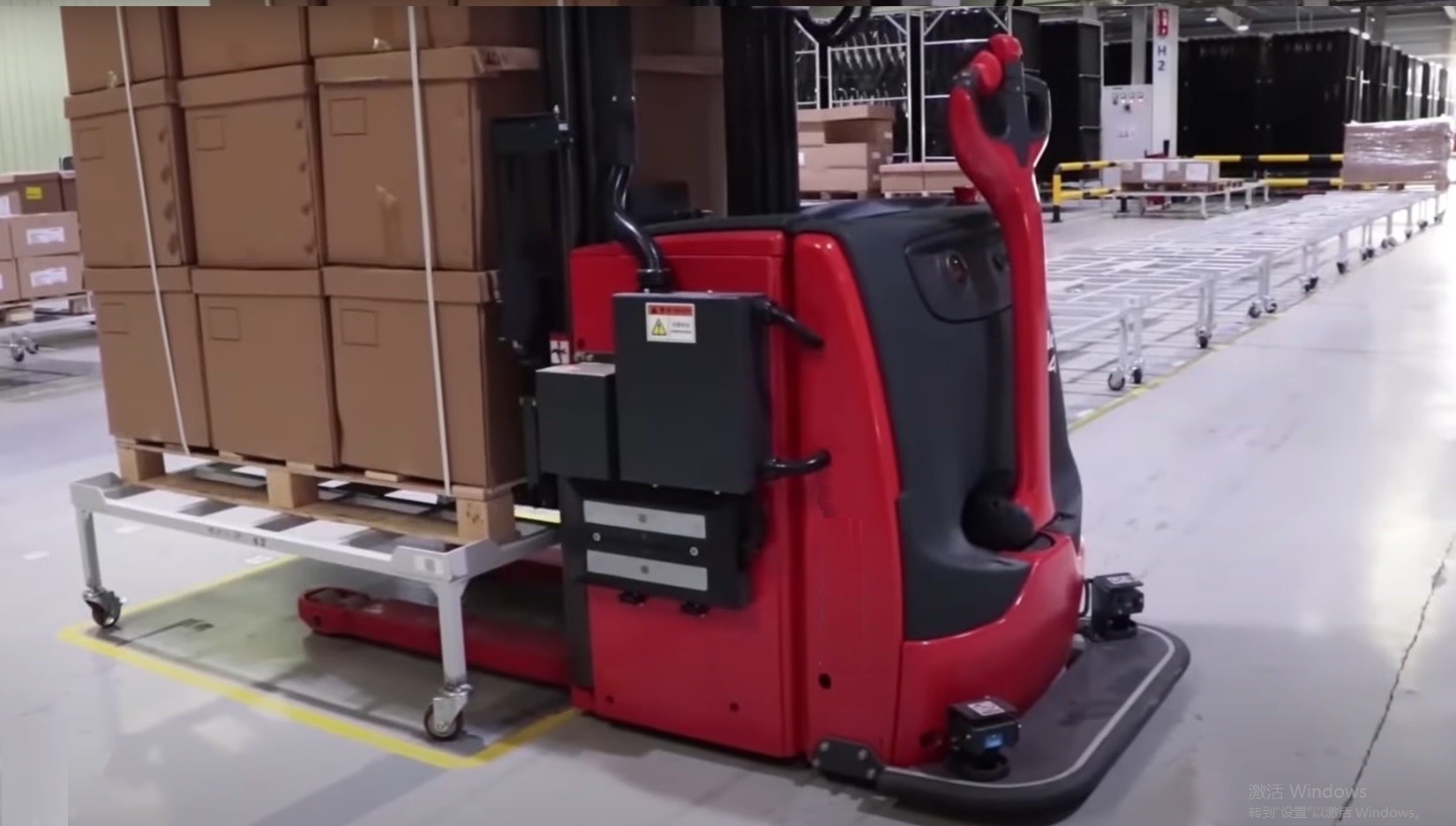

Boxes in Pallet, and forklift AGV working
Highly Scalable Pallet Transfer AGV Automated Warehousing System For Order Fulfillment 1


* What is your carton / box/container pack gross weight, dimension?
* What is your pallet dimenison, weight, and forkflit position?
* What is your prodution capacity, how many pallets to load and unload daily?
* What is the peak and valley of your factory?

Support and Services:

Technical Support and Services for Automated Warehousing System

We are committed to providing excellent technical support and services for our Automated Warehousing System (AWS). Our team of professionals is always available to help you with any questions and concerns you may have.

We provide the following technical support and services:

  • Installation and setup of the automated warehousing system
  • Configuration and customization of the system to meet your specific needs
  • Troubleshooting and maintenance of the system
  • Updates and upgrades to the system
  • On-site training and support
  • Online support and resources

Our team is available 24/7 to answer any questions or concerns you may have. If you need assistance, please contact us at info@changlianxin.com

We look forward to providing you with the best technical support and services for your automated warehousing system.
