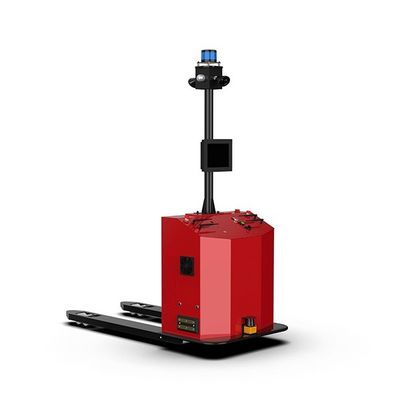

1500KG Load Capacity Pallet Forklift AGV Material Handling In Warehouse Picking And Loading

  • 1500KG Load Capacity Pallet Forklift AGV Material Handling In Warehouse Picking And Loading
  • 1500KG Load Capacity Pallet Forklift AGV Material Handling In Warehouse Picking And Loading
  • 1500KG Load Capacity Pallet Forklift AGV Material Handling In Warehouse Picking And Loading
Place of Origin China
Brand Name CLX
Certification N/A
Model Number CLX-C19-15A
Minimum Order Quantity 1
Packaging Details Export Standard Plywood case pack, 1pcs/carton
Delivery Time 30 days
Payment Terms T/T, Western Union, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50 sets/montly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Pallet Forklift AGV Application Simple Point To Point Transportation
Product Dimension 1700*850*1500mm Lifting Height 120cm
Running Direction Forward/Backward/left And Right Turing Communication Type Remote Control, Without 5G/WIFI Communication
Max Capacity 1500kg Positioning Accuracy ±20mm
Parking Accuracy ±20mm Turning Radius 1500mm
High Light

1500KG Pallet Forklift AGV

,

Warehouse Pallet Forklift AGV

,

Pallet Forklift AGV Material Handling
Leave a Message
Product Description

Boost Efficiency With Extremely Cost-Performance Pallet Forklift AGV Material Handling In Warehouse Picking And Loading



Pallet forklift AGV, with laser radar navigation,load capacity of 1000-1500KG, don't need to install reflective panels, suitable for point-to-point multi-path transportation,with compact size and smart operation, can be simple layout designed and fast delivered.



These pallet forklift AGVs, can take the place of traditional pallet forklift, widly used on different kinds of pallet transportation, achieve running automatically by WIFI or 5G network, two modes like manual drive and auto drive can be selected, lithium battery as power supply, 24 hours working can  be avaliable.

FEATURE



The pallet forklift AGV adopts a steering wheel system, which has a simple structure, reliable use, small turning radius, suitable for single-sided pallets, high driving force, good vehicle stability, and high cost-effectiveness; European standard and non-standard vehicle models can also be customized as buyer's requests.





TECHNICAL PARAMETERS



Model C19-15-A
Max capacity 1500KG
Type Pallet forklift AGV
Product Dimension 1700*850*1500mm
Lifting height 120cm
Running Direction Forward/Backward/left and right turing
Communication Type Remote control, without 5G/WIFI communication
Application Suitable for simple working condition, point to point transportation
Runing Speed 90m/min
Positioning Accuracy ±20mm
Parking Accuracy ±20mm
Working time 24 hours
climb ability 6%
Turning radius 1500mm
Battery Capacity 24V60Ah
Charging type Manual Charging/Auto Charging/Change battery
Alarming type Dual alarm with voice play and warning light
Safty protection Front obstacle detection sensor,mechanical anti-collision mechanism dual protection and emergency stop button





Applications:

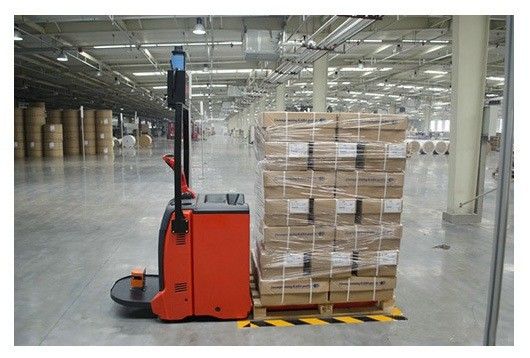

Cartons in Pallet, Forklift AGV working
Highly Scalable and Low Maintenance PALLET FORKLIFT AGV Automated Warehousing System for Order Fulfillment 0

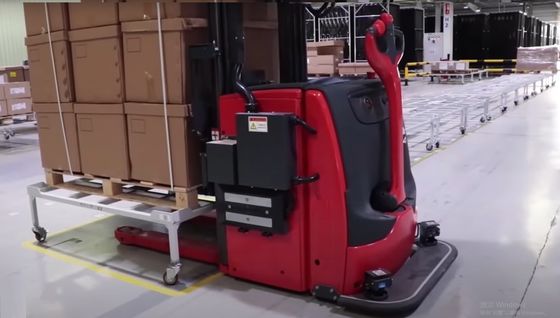

Boxes in Pallet, and forklift AGV working
Highly Scalable and Low Maintenance PALLET FORKLIFT AGV Automated Warehousing System for Order Fulfillment 1

Customization:

* What is your carton / box/container pack gross weight, dimension?
* What is your pallet dimenison, weight, and forkflit position?
* What is your prodution capacity, how many pallets to load and unload daily?
* What is the peak and valley of your factory?

Support and Services:

Technical Support and Services for Automated Warehousing System

We are committed to providing excellent technical support and services for our Automated Warehousing System (AWS). Our team of professionals is always available to help you with any questions and concerns you may have.

We provide the following technical support and services:

  • Installation and setup of the automated warehousing system
  • Configuration and customization of the system to meet your specific needs
  • Troubleshooting and maintenance of the system
  • Updates and upgrades to the system
  • On-site training and support
  • Online support and resources

Our team is available 24/7 to answer any questions or concerns you may have. If you need assistance, please contact us at info@changlianxin.com

We look forward to providing you with the best technical support and services for your automated warehousing system.
