Normal Environment Dense ASRS 4 Way Shuttle For Small Pallet Automatic Racking System

Place of Origin China
Brand Name CLX
Certification CE
Model Number CLX-ZN 002
Minimum Order Quantity 1
Price $60000
Packaging Details Export Standard Plywood case pack, 1pcs/carton
Delivery Time 45 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50 sets/montly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension (mm) 1090L*1030W*126H Cargo Info Different Kinds Of Cargos, Like Pallet, Roll, Wood Carton Etc
Control System PLC Working Enviroment 0~50℃ Normal Temperature
Product Weight(kg) 300-450 Drive Motor Power Rate (W) 1200
Drive Power Supply Type Ithium Iron Phosphate Battery Lifting Height (mm) 50
Rated Load Capacity (KG) ≦1000 Positioning Accuracy(mm) ±5
Pallet Info Suitable For Pallet 1000-1400mm Operation Method Option At Manual And Automatic Working
Battery Capacity&endurance 40AH&>8H Collision Detection Yes

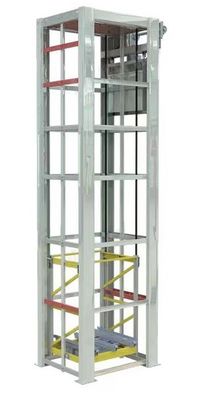

Covering Equipment Elevator, AMR,Pallet Stacking Machine,Pallet Dismantling Machine
High Light

Small Pallet 4 Way Shuttle

,

Dense ASRS Four Way Shuttle

,

Automatic Racking System 4 Way Shuttle

Leave a Message
Product Description

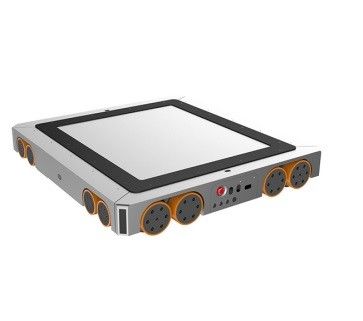

4-way shuttle is an intelligent shuttle handling equipment that integrates functions such as four-way travel, track changing in place, automatic handling, intelligent monitoring, and traffic dynamic management.

The four-way shuttle car can travel along the longitudinal or transverse track direction on the cross track to reach any designated storage location in the warehouse, without being limited by the site.

It can adapt to various working environments, with free terminal scheduling, and achieve fully automatic unmanned operation



The intelligent 4-way shuttle is an important warehousing and logistics transportation equipment.

It is a channel and bridge connecting the work area, production site, and storage area. It has the advantages of high automation, saving manpower and time, convenient and fast operation, and improving work efficiency.

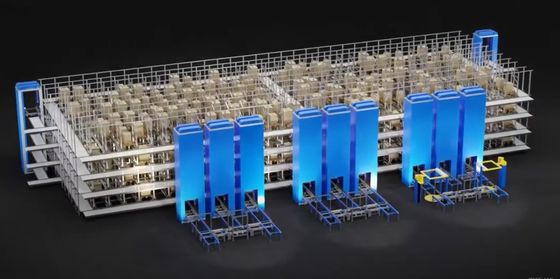

The four-way shuttle allows the intelligent four-way shuttle to freely traverse the shelves by adding high-precision guide rails to traditional shelves. The guide rail has both cargo transportation and storage functions, improving the utilization of storage space



FEATURE

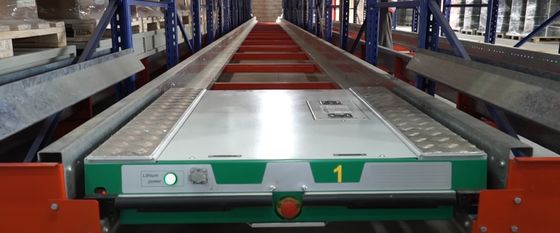

The four-way shuttle car is mainly used for automatic handling and transportation of warehouse pallet goods, automatic storage and retrieval of goods, automatic lane and layer changing, intelligent leveling, and automatic climbing, directly reaching any position in the warehouse.

It can be driven on both shelf tracks and on the ground, without being limited by the site, roads, and slopes, fully reflecting its automation and flexibility. It is an intelligent shuttle vehicle handling equipment that integrates automatic handling, unmanned guidance, intelligent control, and other functions



TECHNICAL PARAMETERS



  CLX-ZN001 CLX-ZN002 CLX-ZN003
Dimension (mm) 1090L*1030W*150H 1090L*1030W*126H 1090L*1030W*150H
Cargo Info Suitable for different kinds of cargo, like pallet, roll, wood carton etc
Control System PLC Control system
Working Enviroment 0~50℃ normal temperature 0~50℃ normal temperature -25~0℃ chill or frorzen environment
Product Weight(kg) 350-500 300-450 350-500
Drive motor power rate (W) 1200
Drive power supply type ithium iron phosphate battery
Lifting Height (mm) 50 40 50
Rated load capacity (KG) ≦1000 ≦1000 ≦1000
Positioning accuracy(mm) ±5 ±5 ±5
Pallet info Suitable for pallet 1000-1400mm
Operation method Option at manual and automatic working
Battery capacity&endurance 40AH&>8H
Collision detection Yes
Covering equipments Elevator, AMR,Pallet Stacking machine,Pallet dismantling machine
